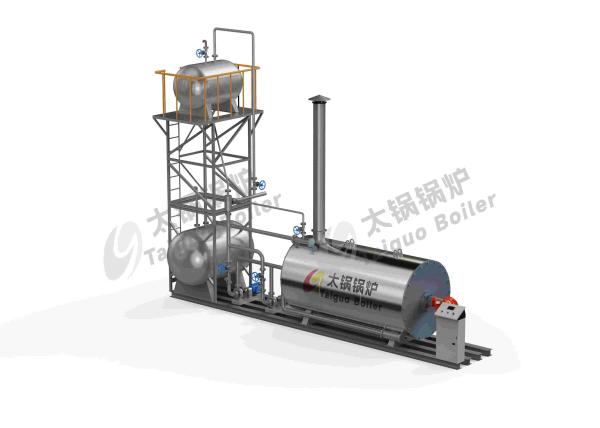

Product introduction:
Thermal oil heater is a kind of special industrial furnace which uses diesel oil as the fuel, the furnace takes heat carrier oil as medium and uses the hot oil circulating pump force the medium to make liquid circulation; then the thermal energy will be transmitted to the devices and back to the furnace to be reheated.
This series boiler have advanced program control system, equipped with liquid level controller , pressure controller, temperature controller, and alarms to make sure the boiler work orderly and safe. So it is a kind of safe boiler with high efficiency and low power consumption.
Product advantage:
1.Optimum three-coil design
The boiler with large heating area has high efficiency
The third pipe protects the boiler shell from deformation
2.External oil collection box
Protect the high temperature flue gas in the heating chimney
Easy maintenance
3.Automatic control measures are perfect
Precise oil temperature control, temperature, pressure and smoke temperature multiple control protection
Safe and reliable operation
Technical parameter:
|  model
ltem | YY(Q)W 350 | YY(Q)W 500 | YY(Q)W 700 | YY(Q)W 1400 | YY(Q)W 2100 | YY(Q)W 2800 | YY(Q)W 3500 | YY(Q)W 4200 | YY(Q)W 7000 | YY(Q)W 14000 |
| Rated thermal p ower | KW | 350 | 500 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 7000 | 14000 |
| Design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Medium outlet t emperature | C | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
| Heating area | m | 21.3 | 24 | 40 | 78.5 | 94.5 | 157 | 205.2 | 240 | 410 |  710 |
| Fuel | light oil/heavy/LNG/CG |
| Fuel | Light oil | Kg/h | 37 | 52 | 69 | 140 | 210 | 280 | 350 | 420 | 680 | 1360 |
| LNG | Nm3/h | 44 | 63 | 83 | 170 | 260 | 332 | 425 | 498 | 810 | 1620 |
| Thermal efficiency | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% |
| Furnace oil cont ent | m3 | 0.25 | 0.3 | 0.5 | 1.1 | 1.7 | 2.29 | 3.8 | 4.3 | 7 | 15.5 |
| Boiler dimension s | mm | 2100× 1390× 2055 | 2200× 1390× 2055 | 3240× 1470× 2260 | 4145× 1900× 2786 | 5020× 2050× 3080 | 5526× 2326× 3230 | 6555× 2470× 3634 | 6753× 2838× 3704 | 8200× 3050× 3800 | 12000× 3780× 4350 |
| Boiler transport weight | T | 2.58 | 3 | 3.7 | 6.9 | 8.8 | 11.5 | 17.8 | 19.8 | 27.5 | 42 |
| Oil inlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Oil outlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Expansion tank | m3 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 3 | 3 | 4.5 | 6 | 8 |
| Storage tank | m3 | 2.5 | 2.5 | 2.5 | 5 | 5 | 8 | 8 | 10 | 15 | 25 |
| ChimneyΦ | mm | 280 | 280 | 280 | 350 | 400 | 400 | 500 | 500 | 700 | 1000 |

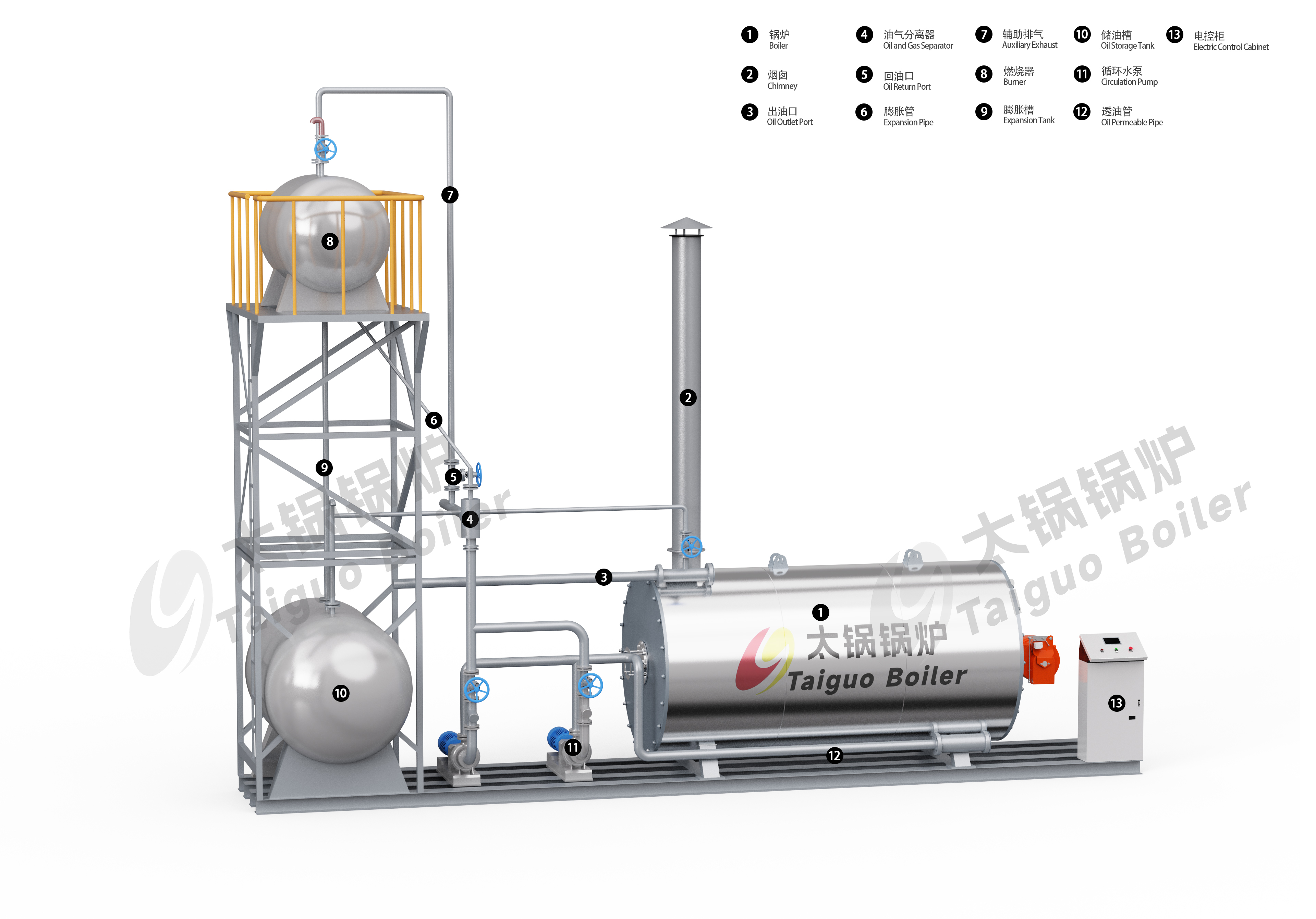

Work flow chart:
