Industrial Use Burning Fire Tube Steam Boiler 1t/H For Drinking Water Factory

Name: Industrial Use Burning Fire Tube Steam Boiler 1tH For Drinking Water Factory
Brand: TAIGUO
Price: 6000 USD

Industrial Use Burning Fire Tube Steam Boiler 1t/H For Drinking Water Factory Manufactures

Brand Name : TAIGUO

Model Number : WNS

Certification : CE\EAC\SGS\ISO19001

Place of Origin : Zhoukou

MOQ : 1

Price : USD6000-9800 Set

Payment Terms : D/P, T/T

Supply Ability : 10set

Delivery Time : 15-25DAYS

Packaging Details : Whole box packaging

Controls : Programmable

Efficiency : High

Fuel Type : Gas/Oil

Heat Output : High

Installation : Professional

Power Output : 98

Type : Gas Oil Boiler

Brand : taiguo

Warranty : 1 Year

Exhaust gas temperature(ºC) : ≤60

Maximum transport weight of boiler(t) : 6.8

Contact Now

TAIGUO WNS series fuel/gas boilers adopt horizontal three -pass wet back structure, large ripple furnace and patent wire management technology, equipped with well -known brand burners and valve groups, and equipped with advanced PLC control systems and protection functions to ensure guarantee The equipment is running safely. It is usually suitable for the capacity of 500 kg to 20 tons/h, with a long service life. At the same time, the fast installation structure is adopted to effectively shorten the installation cycle.

Industrial Use Burning Fire Tube Steam Boiler 1t/H For Drinking Water Factory

Product parameters:

Serial number	name	unit	Numerical value
1	Rated evaporation capacity	t/h	1
2	Working pressure	MPa	1.0
3	Experimental pressure	Mpa	1.25
4	Steam temperature	℃	184
5	Feed water temperature	℃	20
6	Condenser operating pressure	Mpa	0
7	Radiant heating area	m	5.43
8	Convection heating area	m	26.05
9	Heating area of condenser	m	10.75
10	Boiler design Thermal Efficiency (Y)	%	94.27
11	Boiler design Thermal Efficiency (Q)	%	98.09
12	Exhaust temperature (Y)	℃	88.95
13	Exhaust temperature (Q)	℃	88.17
14	Adaptive fuel	/	Oil and natural gas
15	Low heat value of light oil	MJ/Kg	42.916(Y)
16	Low calorific value of natural gas	MJ/Nm	35.6(Q)
17	Theoretical fuel consumption	Kg/h	68.33
18	Theoretical air consumption	Nm/h	77.33
19	Boiler water volume	m³	2.1
20	Maximum shipping weight of boiler	t	5
21	Chimney size/height	mm	Φ273*8000
22	Maximum transport size of boiler	mm	3395×1692×2040

Industrial Use Burning Fire Tube Steam Boiler 1t/H For Drinking Water Factory

Product Tags:

plc fire tube steam boiler

1t/h fire tube steam boiler

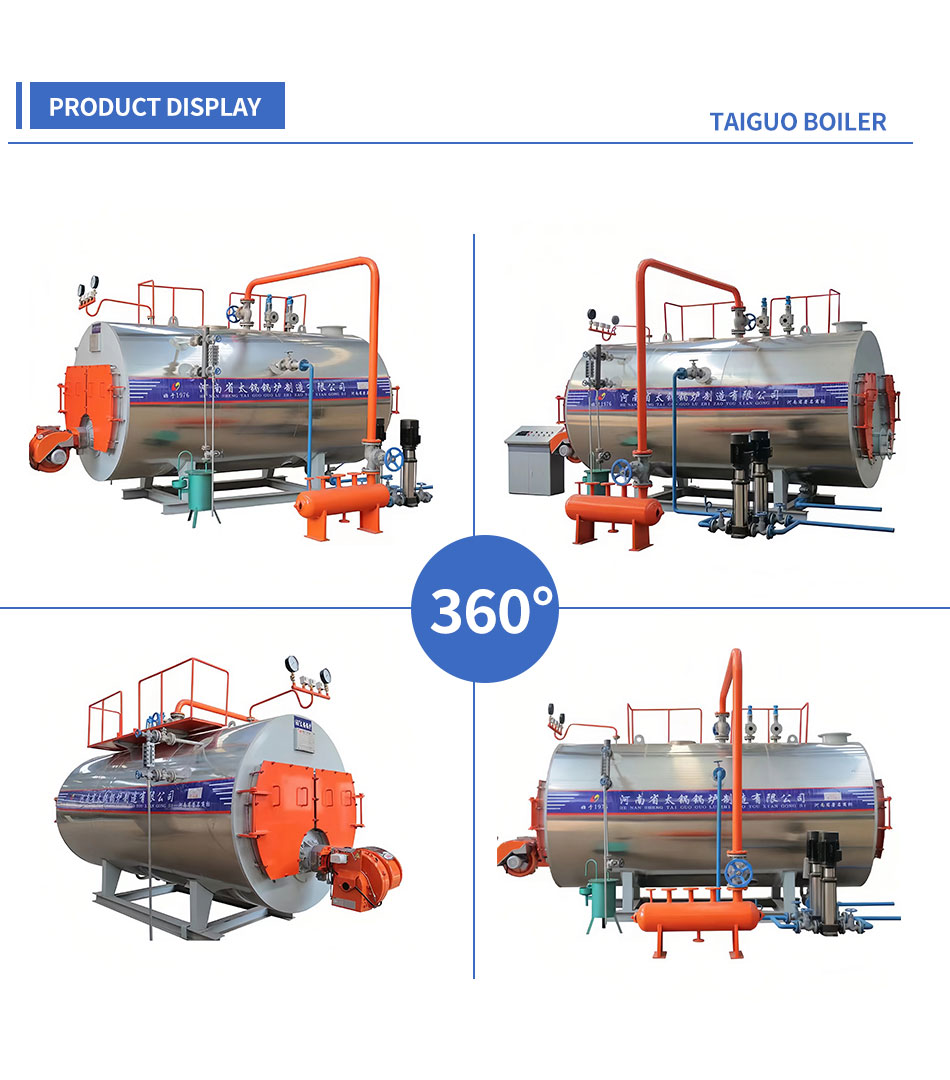

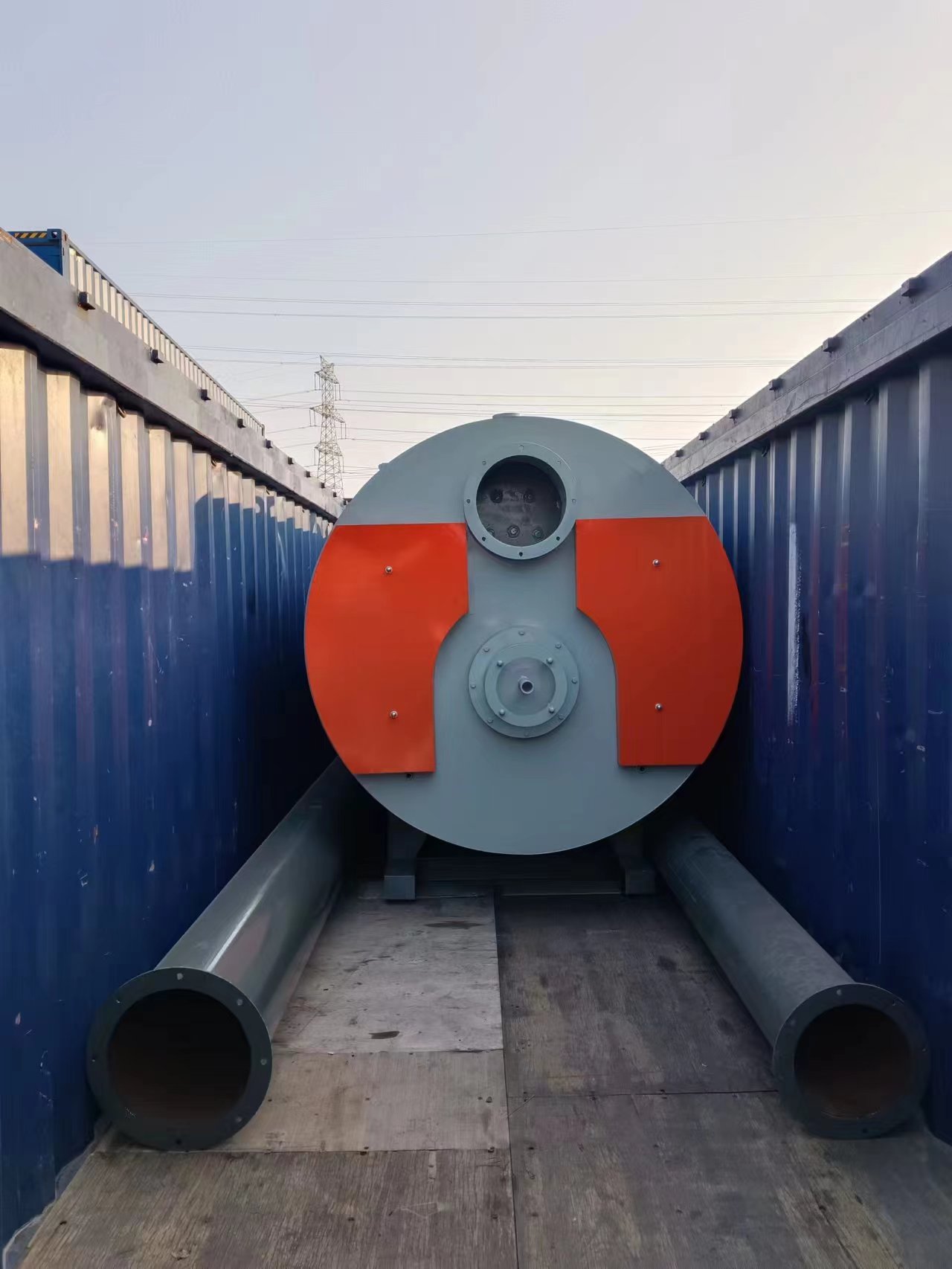

Industrial Use Burning Fire Tube Steam Boiler 1t/H For Drinking Water Factory Images
