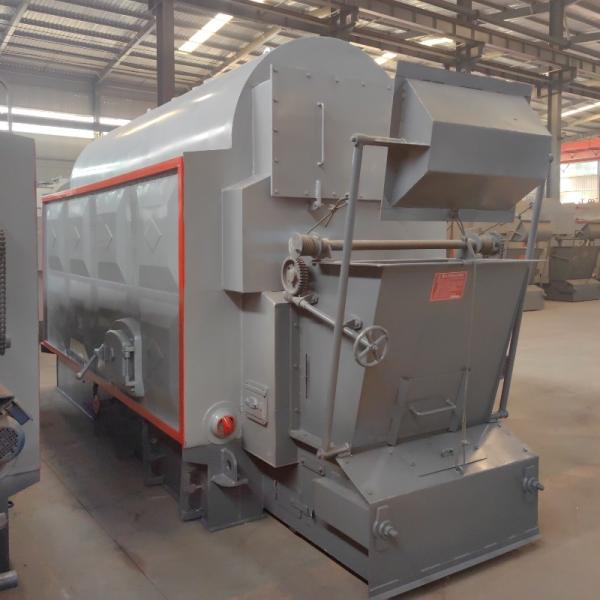

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation

Name: Fire Tube 16mpa Pellet Steam Boiler Easy Operation
Brand: TAIGUO
Price: 10000.00 USD

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation Manufactures

Brand Name : TAIGUO

Model Number : DZL

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : USD$10000.00

Payment Terms : L/C, T/T, D/P, D/P

Supply Ability : 10set

Delivery Time : 25 working days

Packaging Details : Bulk, packaged

Product type : Industrial steam

Industrial steam : 1t/h-10t/h

Working pressure : 1.0、1.25、1.6Mpa

Fuel : Biomass

Rated feed water temperature : 20℃

Warranty : 1 Year

Condition : New

Weight : Regarding the boiler required

Boiler Structure : Fire tube

Type : Chain Grate

Style : Horizontal

Capacity : Steam Boiler

Design Efficiency : 83-91%

Design Fuel Consumption : 190Kg/h

Design Pressure : 1.25Mpa

Design Temperature : 204℃

Efficiency : 80-90%

Emission : ≤30mg/m³

Exhaust Temperature : ≤160℃

Fuel Consumption : 170-220Kg/h

Pressure : 0.7-2.5Mpa

Temperature : 184-350℃

Thermal Efficiency : ≥90%

Contact Now

Product introduction:

The biomass boiler of TAIGUO uses a scales -type chain stove, which has a wide range of fuel applicability. It has mechanized feed, uniform feed, control the speed of fuel combustion, should not be recovered, and the mechanical gray is convenient. In addition, due to the continuous tilt and loosening of the fuel layer, the contact between air and fuel has greatly enhanced and the combustion strength is high. At the same time, it saves manpower and reduces the labor intensity of boiler workers.

Technical parameter:

Mode l item		DZL1	DZL2	DZL3	DZL4	DZL6	DZL8	DZL10	DZL12	DZL15
Rated evaporation capacity(t/h)		1	2	3	4	6	8	10	12	15
Rated pressure(Mpa )		0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6
Rated steam temperat ure( ℃ )		170/ 184/ 194	170/ 184/ 194	170/ 184 / 194	194/204	194/204	194/204	190/204	194/204	194/204
Feed water temperat ure( ℃ )		20	20	20	20	20	20	20	20	20
Heating Area( m)	Body	~33	~50	~75	~100	~170	~200	~250	~340	~415
Heating Area( m)	Economizer	20 .7	25 .3	28 .6	33 . 12	87 .2	98	145	168	189
Effective area of garte ( m)		2 .22	4 . 1	5 .85	6.2	7 .95	9 .75	10 .77	13 .4	16 .6
Fuel type		Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption (kg/h)		~200	~400	~600	~800	~1000	~1200	~1400	~1600	~1800
Flue gas temperat ure( ℃ )		~150	~150	~150	~150	~150	~150	~150	~150	~150
T hemal efficiency(%)		~82	~82	~82	~82	~82	~82	~82	~82	~82
Weight of biggest part for t ransportation(t)		17	18 .5	20	25	35	45	58	64	77
Overall dimension of biggest part for t ransportation( m)		5 . 12 .2 3	5 .52 .3 3 .3	6 .42 . 43 .5	6 .62 .6 3 .6	8 . 12 .9 3 .8	8 .33 . 1 4 .0	8 .63 .2 4 .2	9 .84 .2 4 .5	12 .94 7 .5

Work flow chart:

Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation

After-sales service:

1. Our service tenet is "to provide customers with sincere, quality service". We are committed to honesty and good service to our customers and are committed to continuously improving the quality of service and increasing user satisfaction.
2. Provide technical advice to users, including the use and maintenance of products
Assembly, use characteristics and other technical problems, where the user needs to provide services,
The company will send the best engineering and technical personnel for customer service and technical consultation.
3. When users use our products for quality problems, they will reply within 1 hour when receiving customer service needs, and provide solutions within 24 hours.
4. Implement the "Product quality responsible person system". After the contract is signed, from product manufacturing, warehousing, delivery to installation, trial operation, the whole process of service, improve the quality of the project.
Fire Tube 1.6mpa Pellet Steam Boiler Easy Operation
