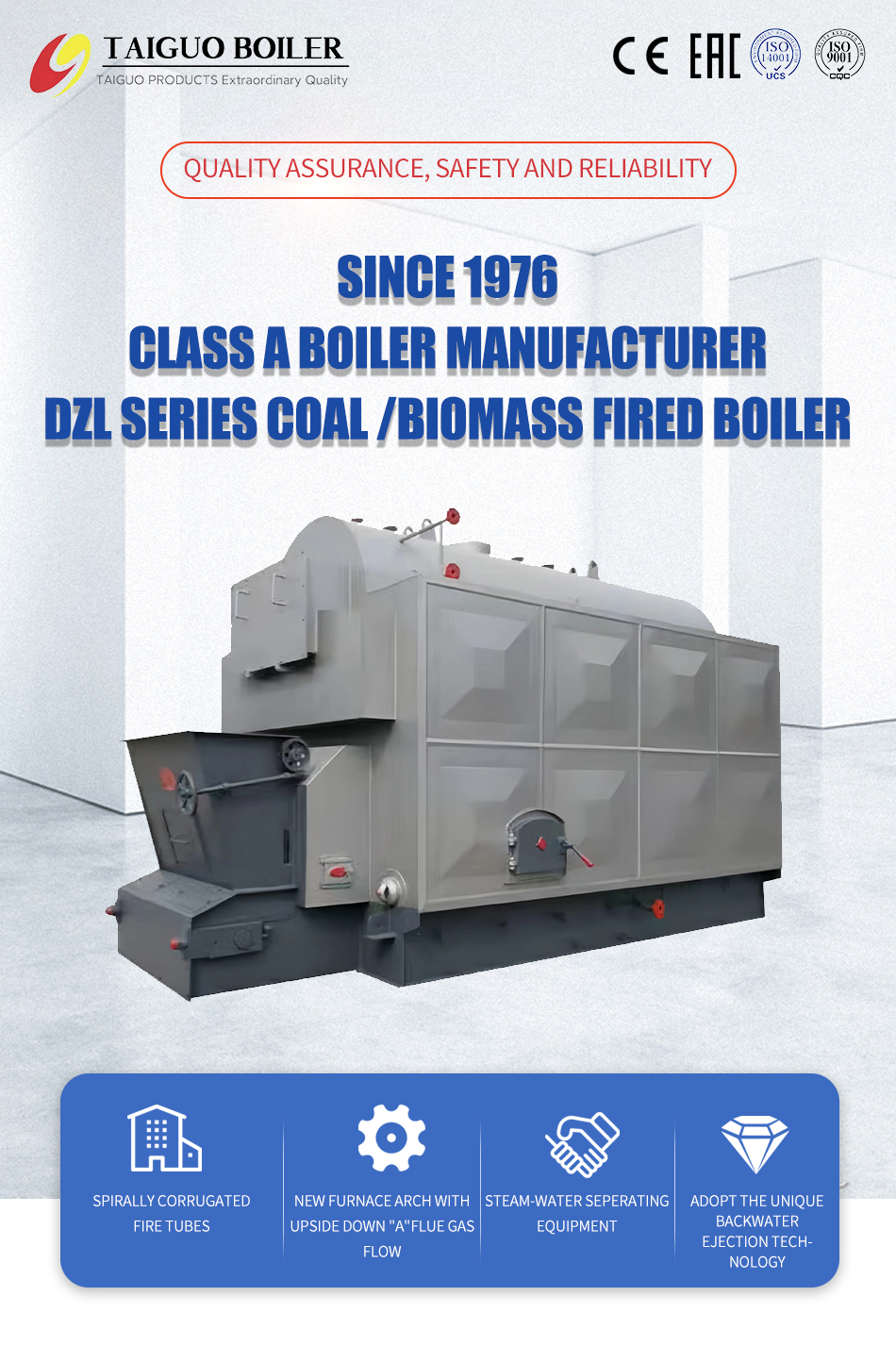

1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler

Name: 1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler
Brand: TAIGUO
Price: 5000 USD

1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler Manufactures

Brand Name : TAIGUO

Model Number : DZL

Certification : SGS EAC CE

Place of Origin : HENAN

MOQ : 1

Price : US5000-9500 set

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15-25DAYS

Capacity : 1-20t/h

Control System : PLC/Manual/Automatic

Design Efficiency : 83%

Design Structure : Horizontal/Vertical

Efficiency : 80-90%

Emission Standard : Class I/Class II/Class III

Fuel : Coal/Biomass

Fuel Consumption : 150-280Kg/h

Installation : Packaged/Field Assembly

Model : DZL coal biomass steam boiler

Pressure : 1.0-2.5Mpa

Temperature : 184-350℃

Warranty : 1 Year

Contact Now

Fully Automatic 1ton Wood Waste Timber Chain Grate Coal Fired Steam Boiler 1 Ton Chain Grate Coal Fired Steam Boiler Wood Waste Timber Biomass Steam Boiler

Mode l item		DZL1	DZL2	DZL3	DZL4	DZL6	DZL8	DZL10	DZL12	DZL15
Rated evaporation capacity(t/h)		1	2	3	4	6	8	10	12	15
Rated pressure(Mpa )		0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6
Rated steam temperat ure( ℃ )		170/ 184/ 194	170/ 184/ 194	170/ 184 / 194	194/204	194/204	194/204	190/204	194/204	194/204
Feed water temperat ure( ℃ )		20	20	20	20	20	20	20	20	20
Heating Area( m)	Body	~33	~50	~75	~100	~170	~200	~250	~340	~415
Heating Area( m)	Economizer	20 .7	25 .3	28 .6	33 . 12	87 .2	98	145	168	189
Effective area of garte ( m)		2 .22	4 . 1	5 .85	6.2	7 .95	9 .75	10 .77	13 .4	16 .6
Fuel type		Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption (kg/h)		~200	~400	~600	~800	~1000	~1200	~1400	~1600	~1800
Flue gas temperat ure( ℃ )		~150	~150	~150	~150	~150	~150	~150	~150	~150
T hemal efficiency(%)		~82	~82	~82	~82	~82	~82	~82	~82	~82
Weight of biggest part for t ransportation(t)		17	18 .5	20	25	35	45	58	64	77
Overall dimension of biggest part for t ransportation( m)		5 . 12 .2 3	5 .52 .3 3 .3	6 .42 . 43 .5	6 .62 .6 3 .6	8 . 12 .9 3 .8	8 .33 . 1 4 .0	8 .63 .2 4 .2	9 .84 .2 4 .5	12 .94 7 .5
