1t/h Coal Steam Boiler Chain Grate Industrial Equipment PLC Control System

Name: 1th Coal Steam Boiler Chain Grate Industrial Equipment PLC Control System
Brand: TAIGUO
Price: 1 USD

1t/h Coal Steam Boiler Chain Grate Industrial Equipment PLC Control System Manufactures

Brand Name : TAIGUO

Model Number : DZL

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $9000.00

Payment Terms : L/C, T/T

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Product name : coal steam boiler

Structural form : horizontal

Steam capacity : 1t/h-6t/h

Mode of transport : Sea and land transport

Contact Now

Coal Steam Boiler Chain Grate Industrial Equipment PLC Control System

Product introduction:

TAIGUO DZL series steam boiler adopts arch tube plate and threaded smoke pipe to form a cylinder, which changes the cylinder from a quasi-steel body to a quasi-elastic structure, cancels the pulling member in the tube plate area, reduces the stress of the smoke pipe in the tube plate from two return to a single return, and solves the problem of tube plate cracks. Due to the arrangement of the rising pipe row in the lower part of the drum, the dead water area at the bottom of the drum is eliminated, so that the mud is not easy to deposit, the high temperature area of the drum can be cooled well, and the lower part of the drum is prevented from bulging.

Product characteristics:

(1) It can realize simulated controlled combustion without deflagration
(2) The combustion ignition speed can be controlled by adjusting the secondary air volume of the control speed
(3) The front and rear arches are arranged with secondary air to ensure the secondary combustion efficiency of fly ash after particle decomposition
(4) The use of scale type chain grate, mechanized feeding. The feed is uniform, the combustion is stable, the control is convenient, and the tempering is not suitable and the mechanical cleaning is convenient.

Technical parameter:

Mode l item		DZL1	DZL2	DZL3	DZL4	DZL6	DZL8	DZL10	DZL12	DZL15
Rated evaporation capacity(t/h)		1	2	3	4	6	8	10	12	15
Rated pressure(Mpa )		0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6
Rated steam temperat ure( ℃ )		170/ 184/ 194	170/ 184/ 194	170/ 184 / 194	194/204	194/204	194/204	190/204	194/204	194/204
Feed water temperat ure( ℃ )		20	20	20	20	20	20	20	20	20
Heating Area( m)	Body	~33	~50	~75	~100	~170	~200	~250	~340	~415
Heating Area( m)	Economizer	20 .7	25 .3	28 .6	33 . 12	87 .2	98	145	168	189
Effective area of garte ( m)		2 .22	4 . 1	5 .85	6.2	7 .95	9 .75	10 .77	13 .4	16 .6
Fuel type		Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption (kg/h)		~200	~400	~600	~800	~1000	~1200	~1400	~1600	~1800
Flue gas temperat ure( ℃ )		~150	~150	~150	~150	~150	~150	~150	~150	~150
T hemal efficiency(%)		~82	~82	~82	~82	~82	~82	~82	~82	~82
Weight of biggest part for t ransportation(t)		17	18 .5	20	25	35	45	58	64	77
Overall dimension of biggest part for t ransportation( m)		5 . 12 .2 3	5 .52 .3 3 .3	6 .42 . 43 .5	6 .62 .6 3 .6	8 . 12 .9 3 .8	8 .33 . 1 4 .0	8 .63 .2 4 .2	9 .84 .2 4 .5	12 .94 7 .5

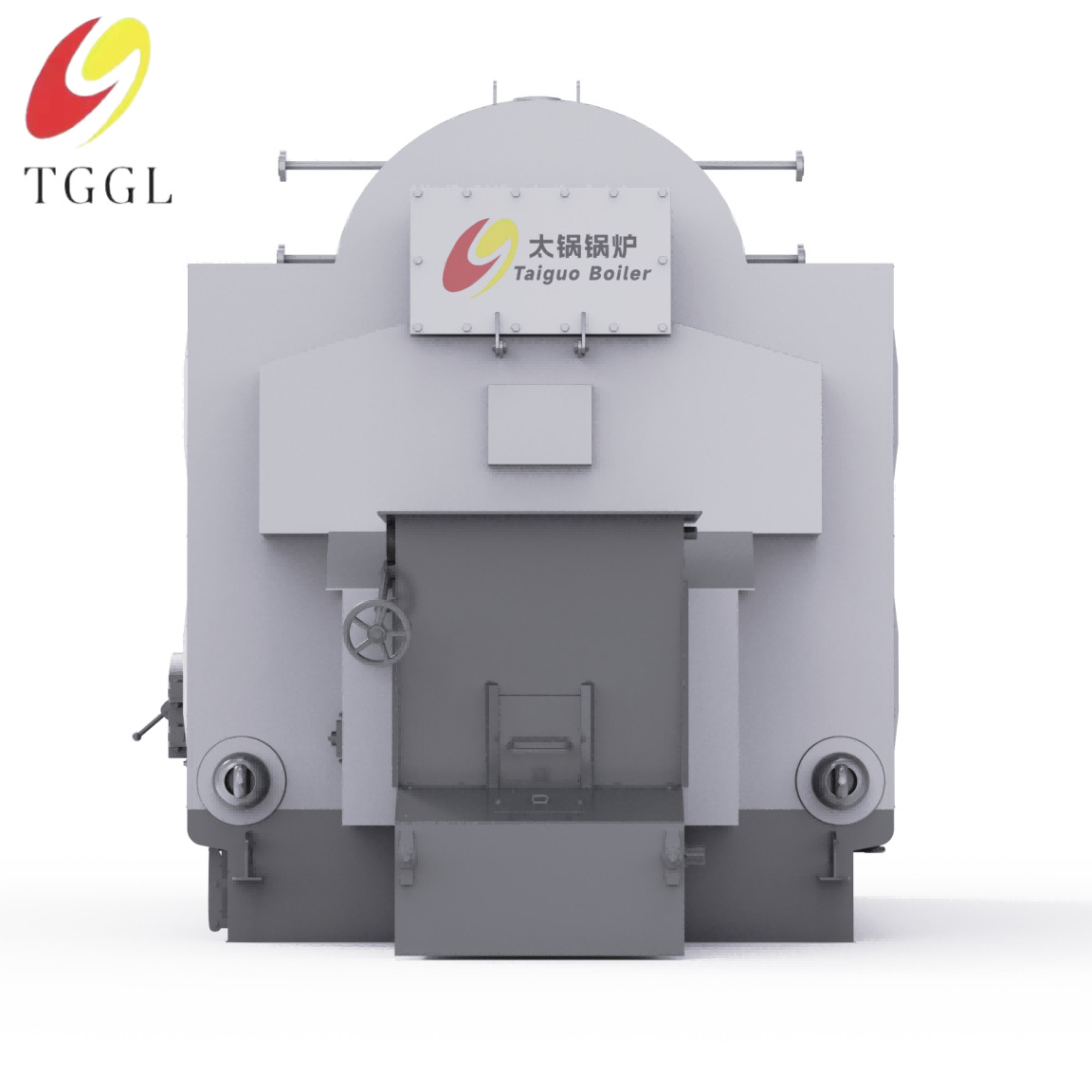

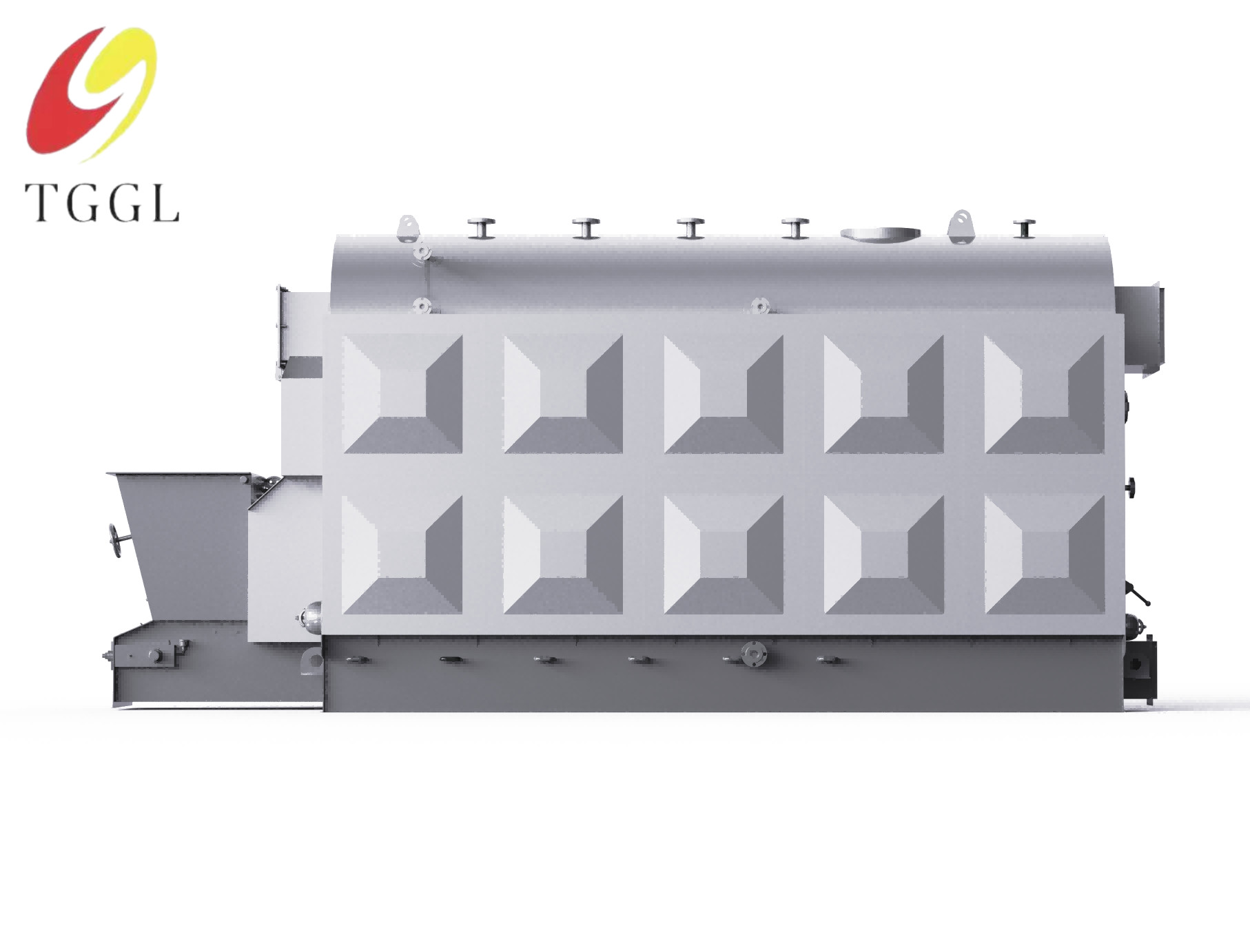

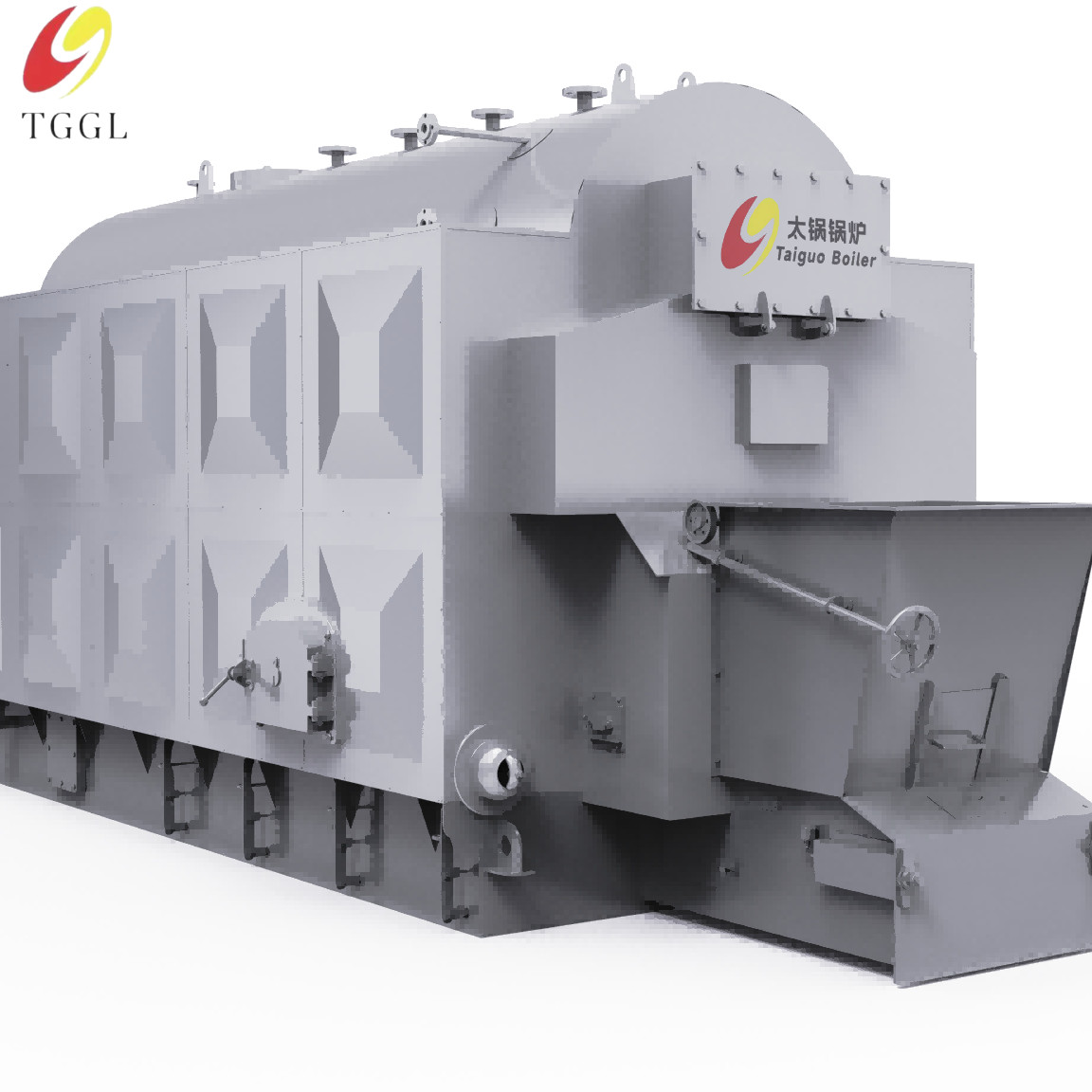

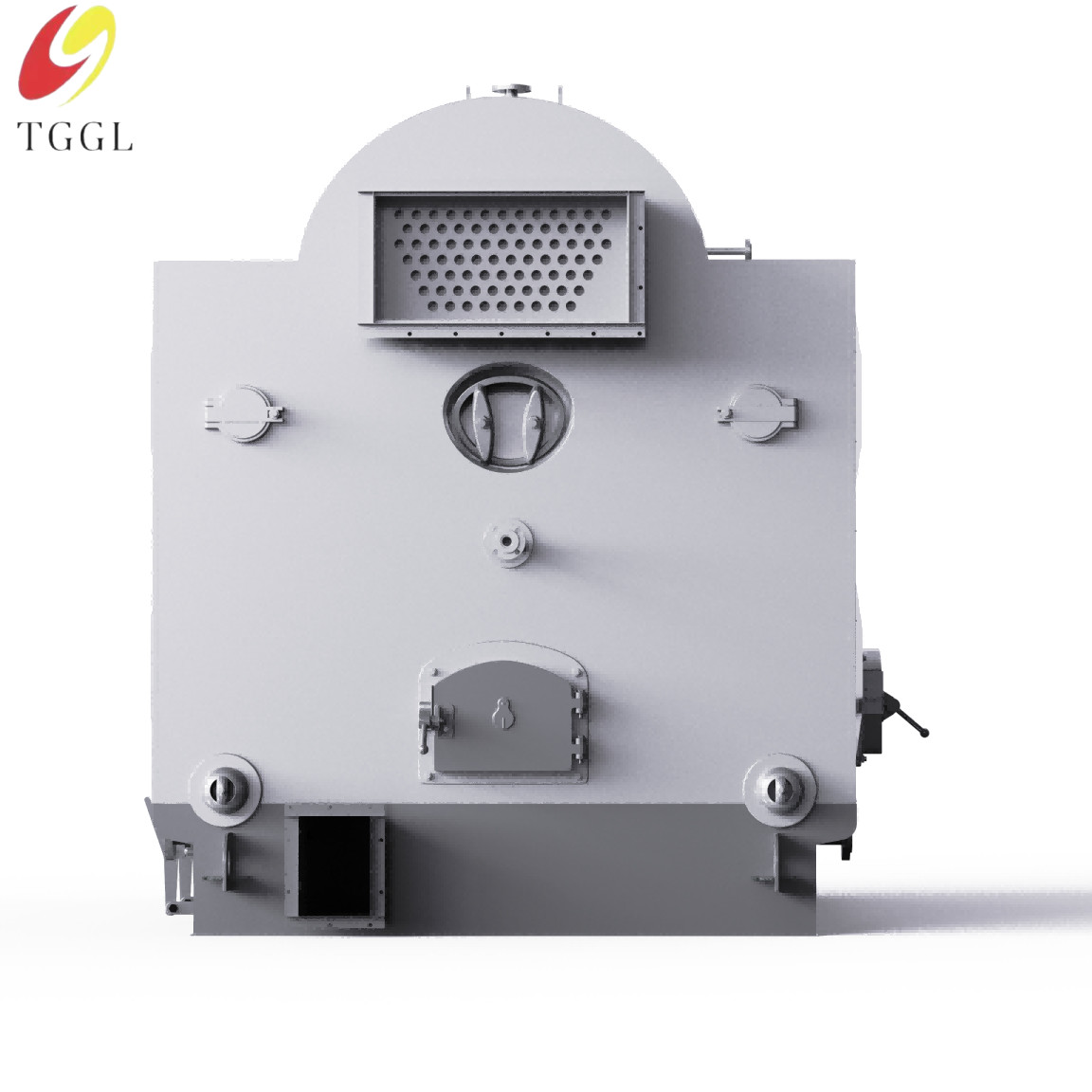

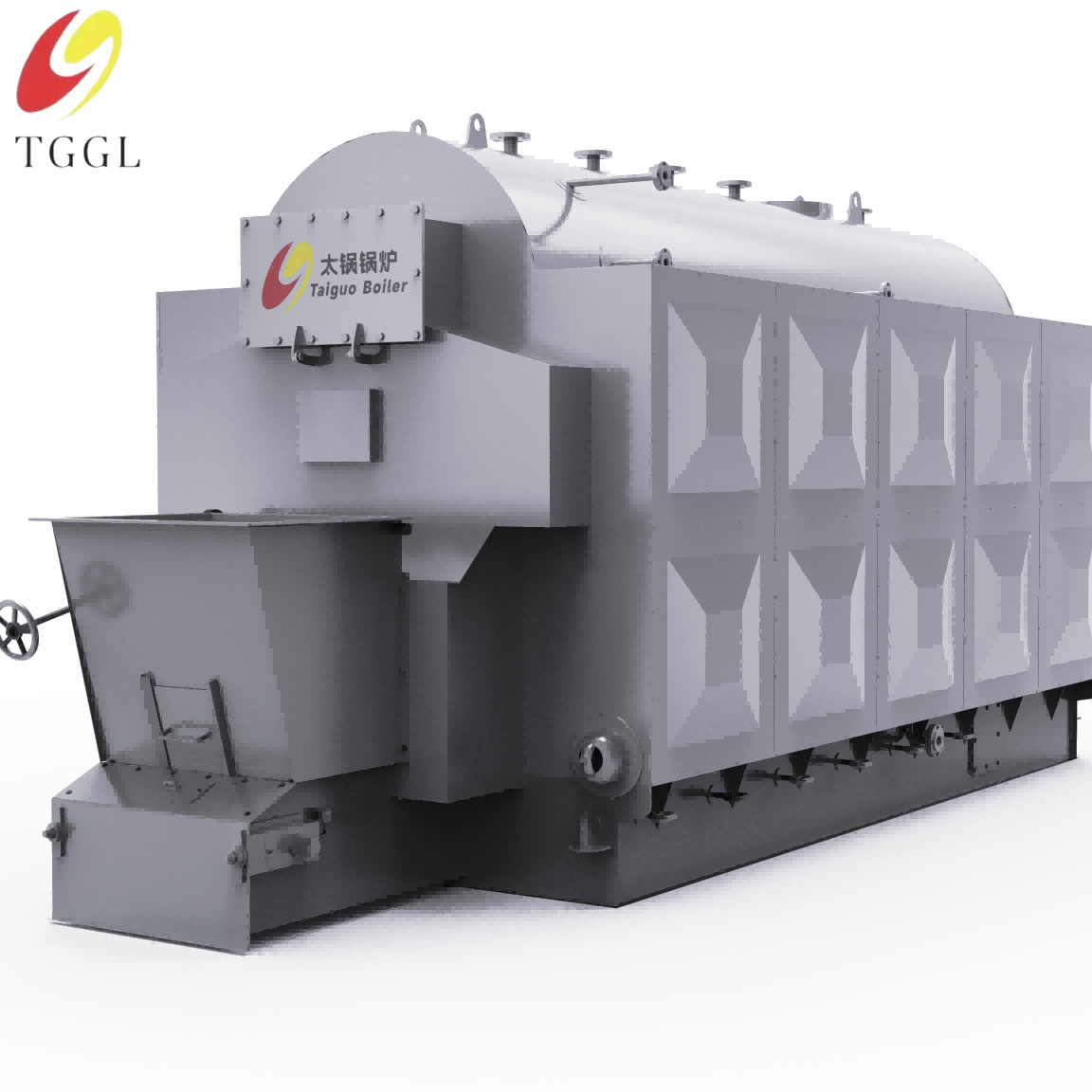

Product presentation and flow chart:
