Product introduction:
Organic heat carrier furnace (referred to as heating furnace) is a new type of heating equipment, with coal, oil, gas as fuel and flue gas as heat source, heat transfer oil as heat carrier through the circulation pump forced heat carrier liquid phase circulation, the heat transfer to the heating equipment, and then return to the heating furnace to reheat the high temperature, low pressure, energy-saving equipment, heating temperature can be up to 340℃. Generally, the working pressure is below 1.0MPa, because the work is in the liquid phase state, safe and reliable.
Product characteristics:
1, reasonable structure, advanced technology, small footprint, small size, beautiful appearance, simple management, high thermal efficiency, with significant energy saving effect and economic benefits, compared with similar foreign products, the structure has a unique place. The furnace type is vertical and horizontal.
2, the heating surface layout is reasonable, and the thermal oil has a long service life.
Technical parameter:
|  model
ltem | YY(Q)W 350 | YY(Q)W 500 | YY(Q)W 700 | YY(Q)W 1400 | YY(Q)W 2100 | YY(Q)W 2800 | YY(Q)W 3500 | YY(Q)W 4200 | YY(Q)W 7000 | YY(Q)W 14000 |
| Rated thermal p ower | KW | 350 | 500 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 7000 | 14000 |
| Design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 |
| Medium outlet t emperature | C | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 |
| Heating area | m | 21.3 | 24 | 40 | 78.5 | 94.5 | 157 | 205.2 | 240 | 410 |  710 |
| Fuel | light oil/heavy/LNG/CG |
| Fuel | Light oil | Kg/h | 37 | 52 | 69 | 140 | 210 | 280 | 350 | 420 | 680 | 1360 |
| LNG | Nm3/h | 44 | 63 | 83 | 170 | 260 | 332 | 425 | 498 | 810 | 1620 |
| Thermal efficiency | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% |
| Furnace oil cont ent | m3 | 0.25 | 0.3 | 0.5 | 1.1 | 1.7 | 2.29 | 3.8 | 4.3 | 7 | 15.5 |
| Boiler dimension s | mm | 2100× 1390× 2055 | 2200× 1390× 2055 | 3240× 1470× 2260 | 4145× 1900× 2786 | 5020× 2050× 3080 | 5526× 2326× 3230 | 6555× 2470× 3634 | 6753× 2838× 3704 | 8200× 3050× 3800 | 12000× 3780× 4350 |
| Boiler transport weight | T | 2.58 | 3 | 3.7 | 6.9 | 8.8 | 11.5 | 17.8 | 19.8 | 27.5 | 42 |
| Oil inlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Oil outlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 |
| Expansion tank | m3 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 3 | 3 | 4.5 | 6 | 8 |
| Storage tank | m3 | 2.5 | 2.5 | 2.5 | 5 | 5 | 8 | 8 | 10 | 15 | 25 |
| ChimneyΦ | mm | 280 | 280 | 280 | 350 | 400 | 400 | 500 | 500 | 700 | 1000 |

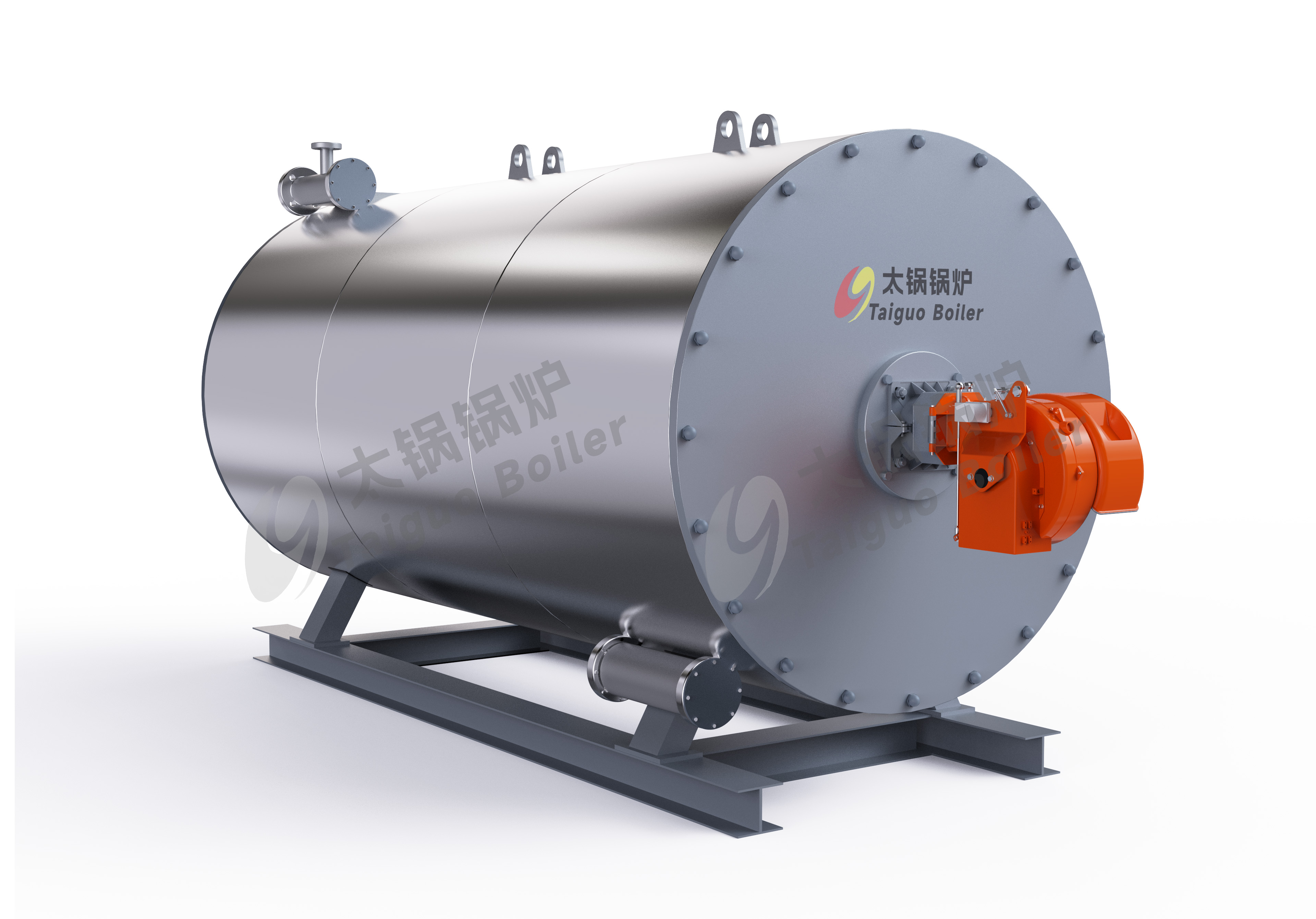

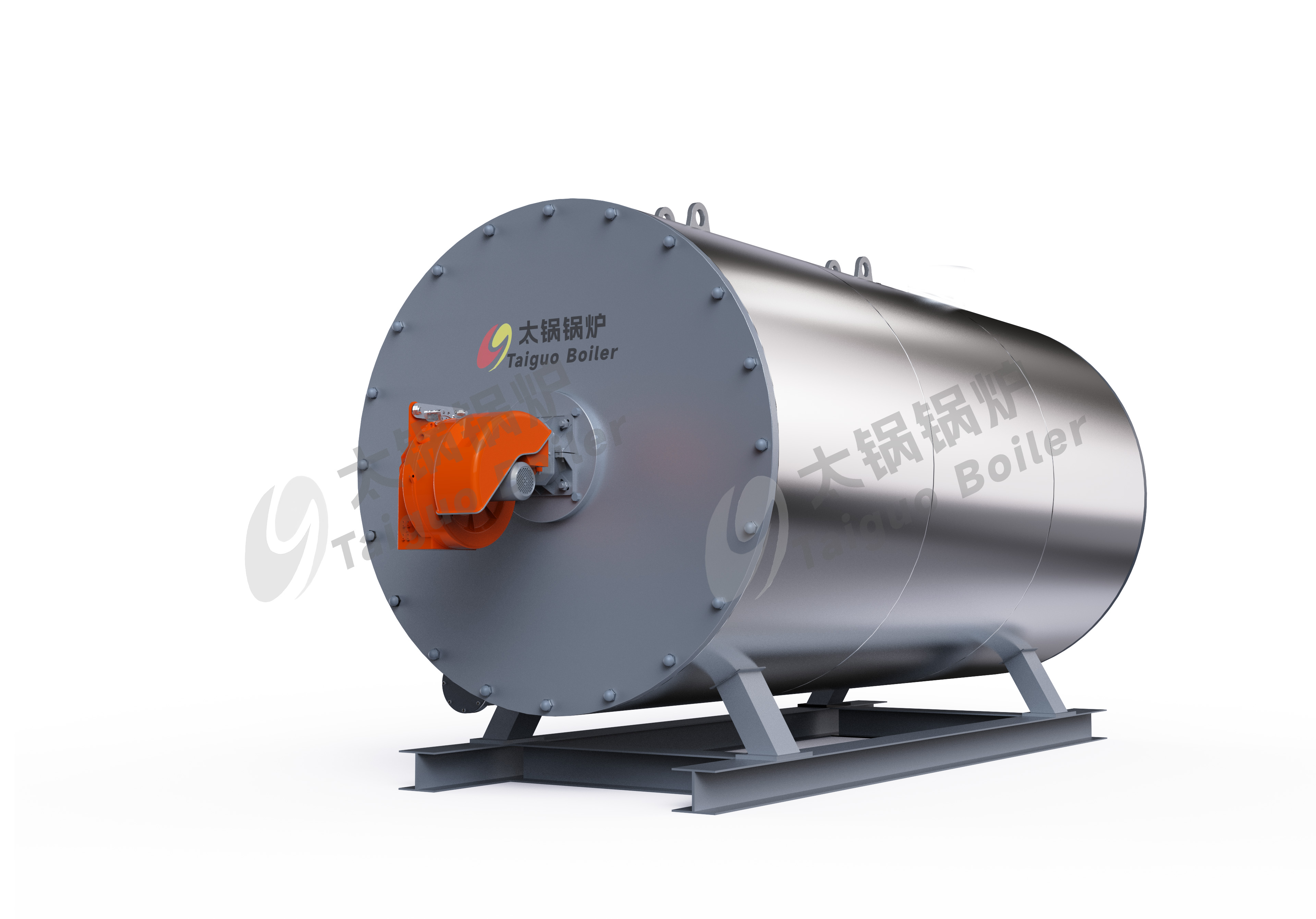

Product display:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
|
|

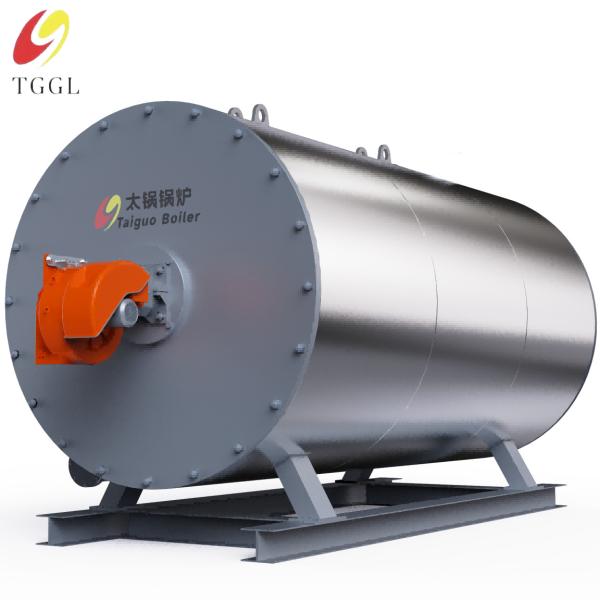

Horizontal thermal oil furnace has high industrial environmental protection efficiency Images
|
