Brand Name : TAIGUO
Model Number : WNS
Certification : CE、EAC、SGS
Place of Origin : Henan, China
MOQ : 1
Price : US $9000.00
Payment Terms : L/C, T/T
Supply Ability : 100set
Delivery Time : 30 working days
Packaging Details : Bulk, packaged
Product name : oil combination boiler
Working pressure : 1.0、1.25、1.6Mpa
Steam temperature : 184、194、204℃
Structural form : horizontal
Mode of transport : Sea and land transport
Customizable goods : YES

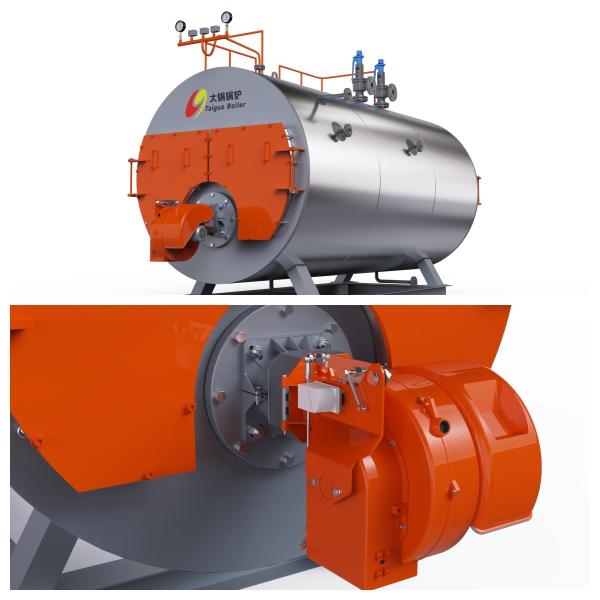

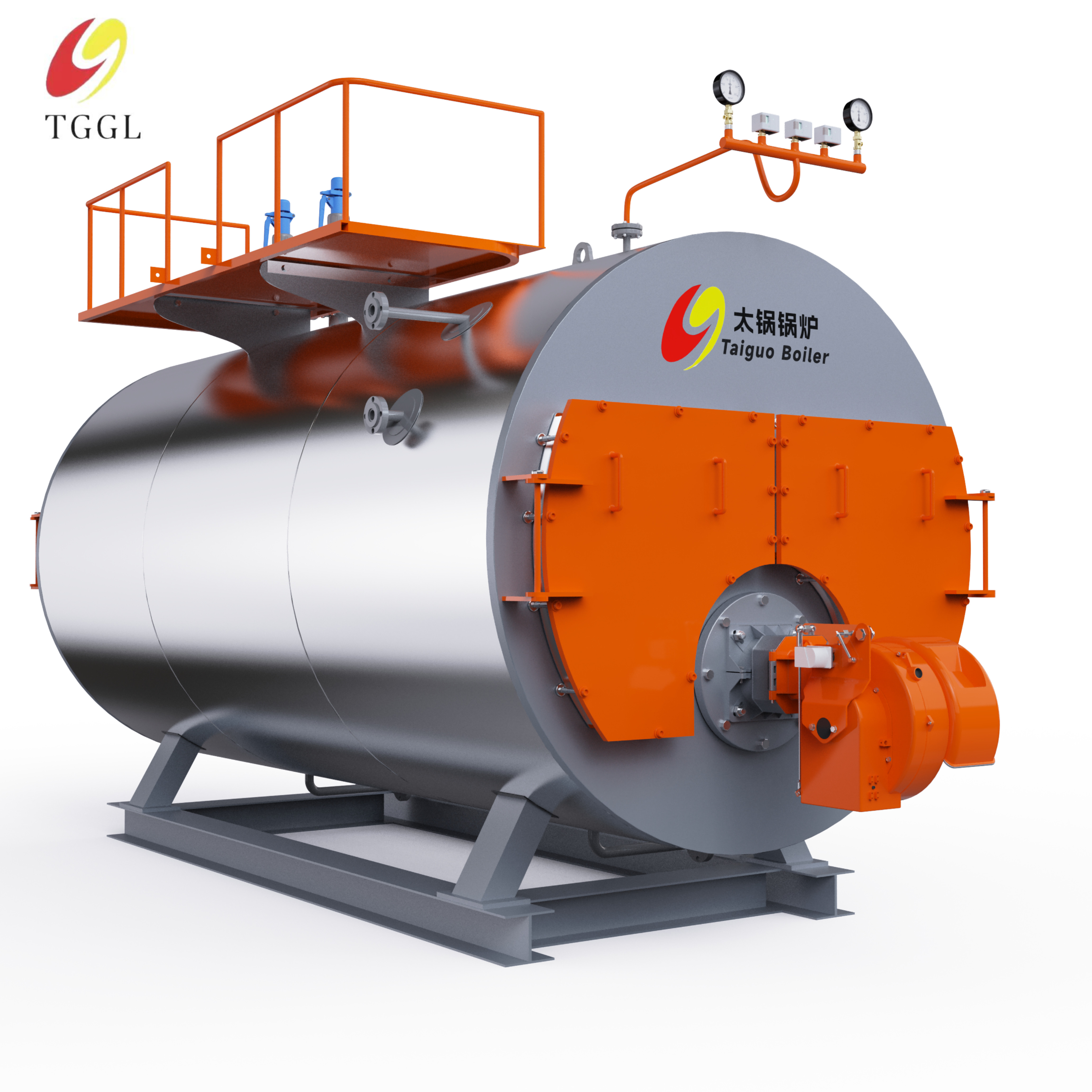

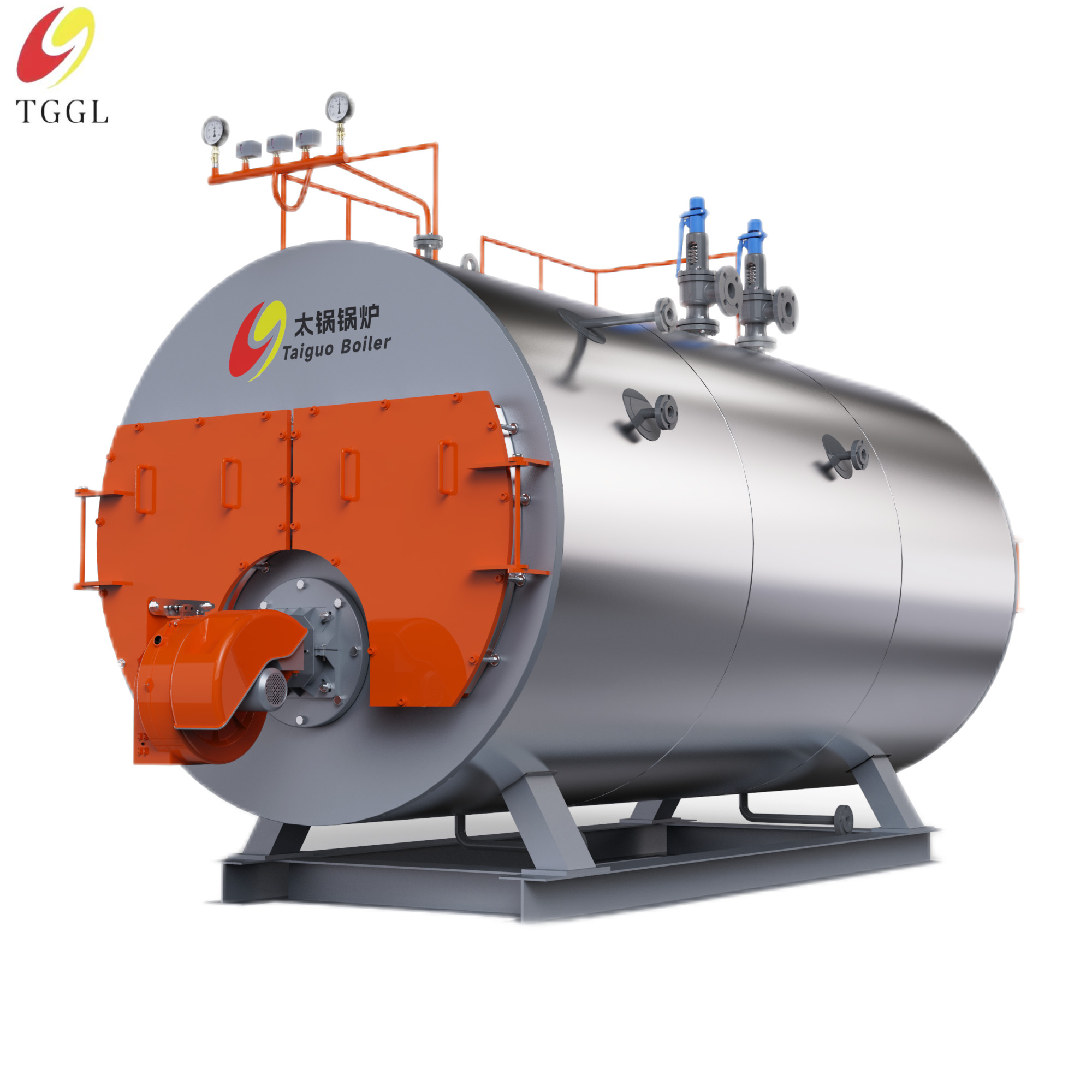

WNS series horizontal internal combustion oil (gas) quick loading boiler, with wet back structure. The corrugated furnace and the return chamber are the first return leg, the second return leg is composed of threaded smoke pipe, and the third return leg is plain smoke pipe. High efficiency and energy saving: The use of spiral fin tube as an efficient heat exchange element can effectively use the latent heat in the flue gas, so that the boiler exhaust temperature from 200 ° C to about 80 ° C, the boiler thermal efficiency can reach about 96%, effectively improve the boiler thermal efficiency, save energy, reduce operating costs.
1. Large shell diameter, large water capacity, strong ability to adapt to load changes, stable output; The steam space volume is large, the net distance between the steam interface and the steam outlet is high enough, and the steam humidity is small.
2. Design over temperature, over pressure, water shortage, leak detection, flameout and other protection functions, boiler operation is safe and reliable.

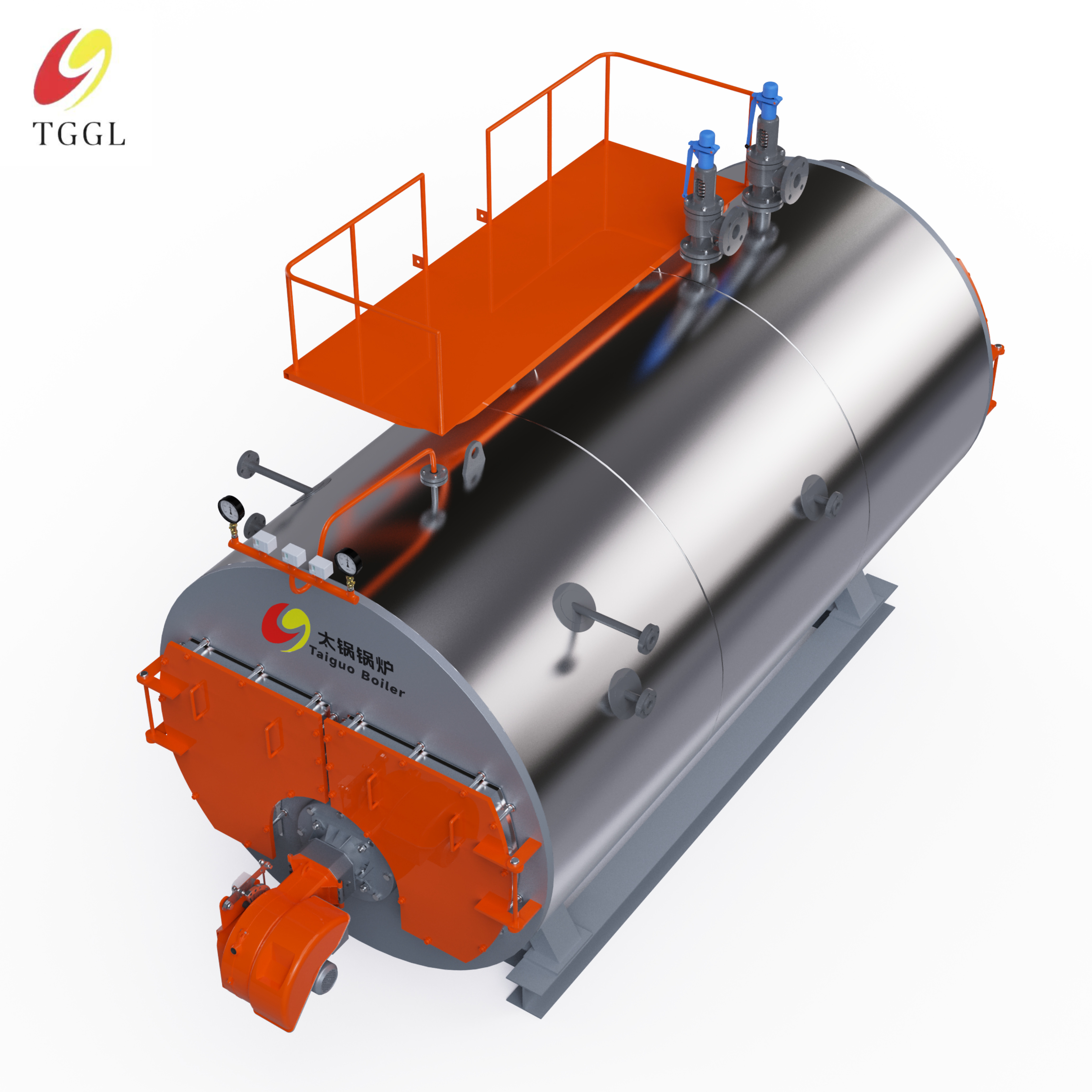

3. The top of the boiler is provided with a manhole, and the middle and lower parts of the front and back ends of the boiler are provided with a unique hand hole device, which is convenient for the inspection and cleaning of the device in the pot and the bottom of the boiler.
Model | Rated | Rated | Rated | Thermal | Fuel Consumption | |
Capacity (t/h) | Pressure (Mpa) | Temperature (C) | Efficiency (%) | Light oil (Kg/h) | Natural gas (Nm³/h) | |
WNS1 | 1 | 0.7/1.0/1.25 | 170/184/194 | >96 | 45-100 | 18-100 |
WNS1.5 | 1.5 | >96.2 | 101.73 | 123.47 | ||
WNS2 | 2 | 1.0/1.25/1.6 | 184/194/204 | >96.2 | 137.09 | 165.97 |
WNS3 | 3 | >96 | 205.75 | 249.6 | ||
WNS4 | 4 | >96 | 272.3 | 329.5 | ||
WNS5 | 5 | >96 | 134-402 | 80-500 | ||
WNS6 | 6 | >96 | 134-402 | 80-500 | ||
WNS8 | 8 | 1.25/1.6/2.5 | 194/204/225 | >96 | 523.4 | 631.5 |
WNS10 | 10 | >96 | 212-890 | 150-1085 | ||
WNS12 | 12 | >96 | 915.5 | 1090 | ||
WNS15 | 15 | >96 | 931.5 | 1094.4 | ||
WNS20 | 20 | >96 | 1380.33 | 1598.44 | ||
Note: Parameter is for reference only, we can design the boilers based on customers’ needs. |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
![]() |
