Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler

Name: Automatic Control System 110th Chain Grate Coalfired Biomass Steam Boiler
Brand: taiguo boiler
Price: 5000 USD

Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler Manufactures

Brand Name : taiguo boiler

Model Number : dzl

Certification : CE,SGS,EAC

Place of Origin : HENNAN,CHINA

MOQ : 1

Price : 5000-10000USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Mode Of Transport : Sea and land transport

Efficiency : 83%

Exhaust Temperature : ≤160℃

Combustion System : Biomass Combustion

Capacity : 1-20 ton/h

Design Pressure : 1.0、1.25、1.6Mpa

Transport : Sea transportation

Grate Type : Chain Grate

Structure : Horizontal Water Tube

Colour : Orange

Structural Form : horizontal type

Steam Yield : 1t/h-10t/h

Application : Industrial

Condition : New

Temperature : 184/194/204

Contact Now

Product introduction:

DZL series boiler is a horizontal three-return water and fire tube chain grate boiler, burning medium bituminous coal. The boiler body is arranged longitudinally in a single cylinder, the threaded pyrotechnics tube is arranged in the cylinder to form a convection heating surface, and the boiler cylinder and the water cooling wall on both sides form a radiation heating surface of the furnace. The combustion equipment adopts light chain grate; The whole quick pack form factory. The electric control realizes stepless speed regulation of grate, alarm of limit parameter and interlock protection.

product feature:

1, the use of efficient heat transfer element a threaded smoke pipe, with a reasonable flue gas flow rate, so that the boiler thermal efficiency is 6-8 percentage points higher than the national professional standard.
2, arch tube plate, threaded smoke pipe make the shell from quasi-rigid body to quasi-elastic body, with the airfoil flue, completely avoid the problem of traditional pyrotechnics boiler high-temperature tube plate cracking.
3, reasonable water circulation circuit and unique return water ejector device (hot water boiler), improve the rising pipe water speed, avoid the water wall explosion.
4. Inertial separation of smoke and dust in the furnace is adopted. With the help of high-efficiency multi-tube dust collector, the boiler dust concentration can meet the requirements of a class of areas.
5, a reasonable boiler structure does not need steel frame to support its own weight.
6, the use of energy-saving, strong radiation furnace arch, can ensure the stable combustion of fuel.
7, the use of high standards, high-quality auxiliary machinery, accessories and automatic control equipment to ensure the safe and stable operation of the boiler, while reducing the labor intensity of the fireman.
8. Compact structure. 1-20t/h (0.7-14MW) boilers can be arranged in a single layer.

technical specification:

Mode	DZL1	DZL2	DZL3	DZL4	DZL6	DZL8	DZL10
Rated evaporation capacity(t/h)	1	2	3	4	6	8	10
Rated pressure(Mpa )	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	0 .7/ 1 .0/ 1 .25	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6	1 .25/ 1 .6
Rated steam temperat ure( ℃ )	170/ 184/ 194	170/ 184/ 194	170/ 184 / 194	194/204	194/204	194/204	190/204
Feed water temperature( ℃ )	20	20	20	20	20	20	20
Heating Area( m) Body	~33	~50	~75	~100	~170	~200	~250
Fuel type	Biomass pellet,wood sawdust,bamboo chip,wood block,straw ,Jute, palm shell
Fuel Consumption (kg/h)	~200	~400	~600	~800	~1000	~1200	~1400
Flue gas temperature( ℃ )	~150	~150	~150	~150	~150	~150	~150
Themal efficiency(%)	~82	~82	~82	~82	~82	~82	~82
Weight of biggest part for transportation(t)	17	18 .5	20	25	35	45	58
Overall dimension of biggest part for transportation( m)	5 . 12 .2 3	5 .52 .3 3 .3	6 .42 . 43 .5	6 .62 .6 3 .6	8 . 12 .9 3 .8	8 .33 . 1 4 .0	8 .63 .2 4 .2

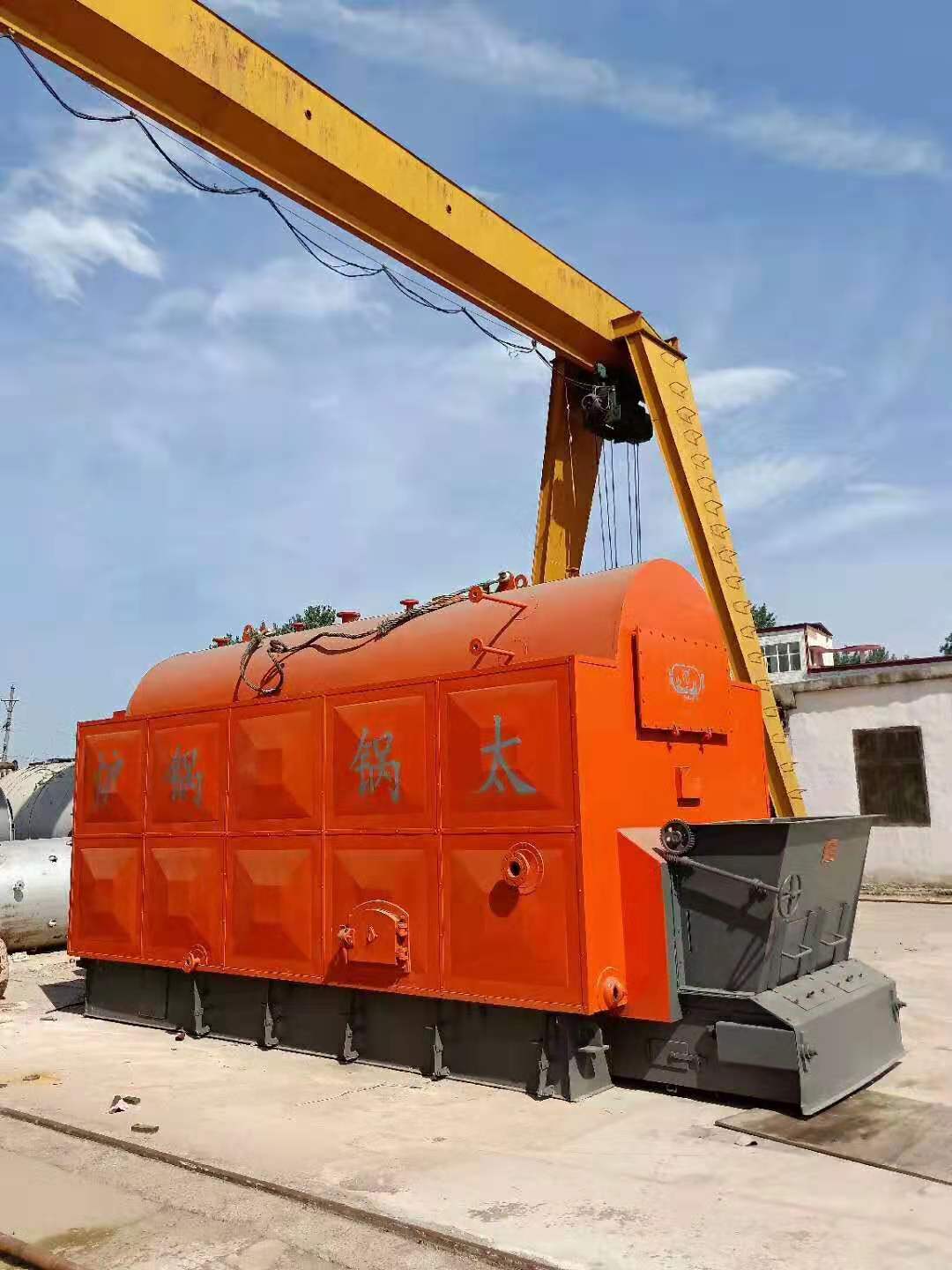

product picture:

Automatic Control System 1-10t/h Chain Grate Coal-fired Biomass Steam Boiler
