Horizontal 50-1000kg Powered Natural Gas Fired Industrial Fire Tube Steam Boiler

Name: Horizontal 501000kg Powered Natural Gas Fired Industrial Fire Tube Steam Boiler
Brand: TAIGUO
Price: 1 USD

Horizontal 50-1000kg Powered Natural Gas Fired Industrial Fire Tube Steam Boiler Manufactures

Brand Name : TAIGUO

Model Number : WNS

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $10000

Payment Terms : L/C, T/T, D/P, T/T

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Product name : horizontal steam boiler

Working pressure : 1.25Mpa

Suitable fuel : Natural gas, light oil, heavy oil, liquefied petroleum gas

Fuel : Light diesel oil

Customizable Goods : YES

Specification : WNS-6

Heat Output : High

Water Circulation : Natural Circulation

Steam Yield : 0.5t/h-5t/h

Key Selling Points : High-accuracy

Drum Placement : Horizontal Boiler

Steam Production : 0.5-40 ton

Efficiency Rating : 90%-95%

Evaporation Capacity : 0.5t/h-30t/h

Additional Features : Condensing/Modulating

Rated Working Pressure : 0.7-1.0MPa(7-10bar)

Contact Now

WNS Series Horizontal Steam Boiler

Product introduction:

WNS series horizontal internal combustion boiler is a boiler shell type 3 passes wetback oil/gas fired boiler. After fuel is being atomized by burner, flame is full of the wave furnace and transfer heat via furnace wall, this is 1st pass; the high temperature smoke is collected in reversal chamber and then enters 2nd pass which is grooved tubes bundle area; after heat convection, air temperature gradually falls and goes to front smoke box and turn to 3rd pass, which is smooth tubes bundle area, and then enters chimney passing back smoke box and exhausted to the atmosphere.

Product advantage:

1. The front and rear smoke boxes are integrated smoke boxes, and there are team open smoke boxes on the smoke boxes. The form is good in integrity, beautiful, generous, and light in maintenance and opening.
2. Adopt the new spiral fin energy saver and condenser, increase the heating area, reduce its volume, and make its structure compact.
3. This type of boiler has high thermal efficiency, stable output and strong load adaptability.
4. The quick installation structure can effectively shorten the installation cycle.

Technical parameter:

Model

Rated

Capacity

(t/h)

Rated

Pressure

(Mpa)

Rated

Temperature

(C)

Thermal

Efficiency

(%)

Exhaust gas

temperature(ºC)

Maximum

transport weight

of boiler(t)

Maximum transport size of boiler( mm)

Fuel Consumption

Light oil (Kg/h)

Natural gas (Nm³/h)

WNS1

0.7/ 1.0/ 1.25

170/ 184/ 194

>98

≤60

6.8

3400× 1700×2100

61.5

70.4

WNS1.5

1.5

>98

≤60

7.7

3800× 1900×2400

93.75

107.1

WNS2

1.0/ 1.25/ 1.6

184/ 194/204

>98

≤60

8.2

4300× 1900×2300

125

142.8

WNS3

>98

≤60

9.9

3900×2100×2500

187.5

214.2

WNS4

>98

≤60

12.7

4700×2200×2600

250

285.6

WNS5

>98

≤60

14.2

5200×2300×2700

312.5

357

WNS6

>98

≤60

17.5

5660×2400×2800

375

428.4

WNS8

1.25/ 1.6/2.5

194/204/225

>98

≤60

21.3

5900×2500×3000

500

571.2

WNS10

>98

≤60

6600×2700×3200

625

714

WNS12

>98

≤60

27.2

7000×3000×330

750

856.8

WNS15

>98

≤60

35.5

7500×3400×3600

937.5

1071

WNS20

>98

≤60

7800×3700×4200

1250

1428

Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas

2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.

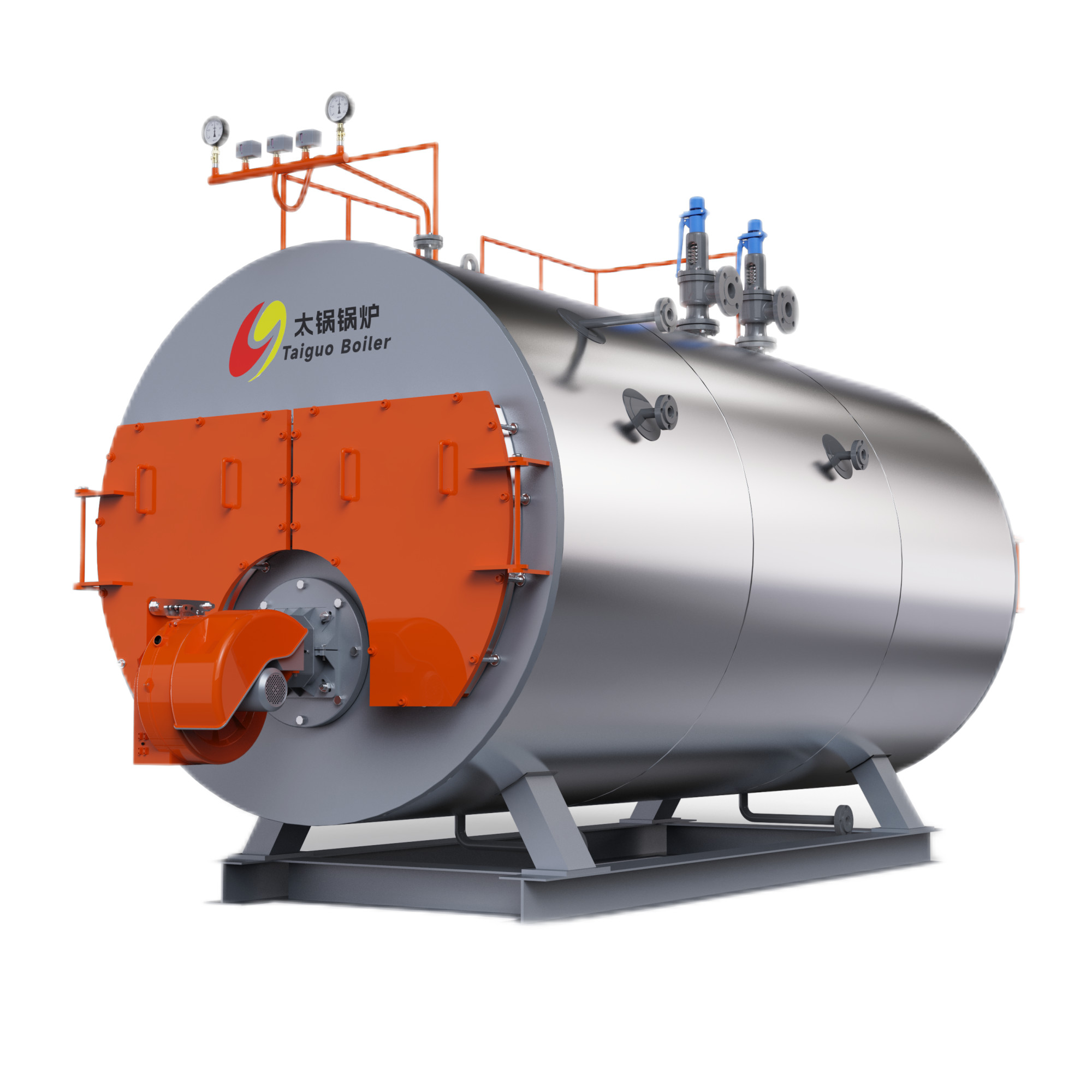

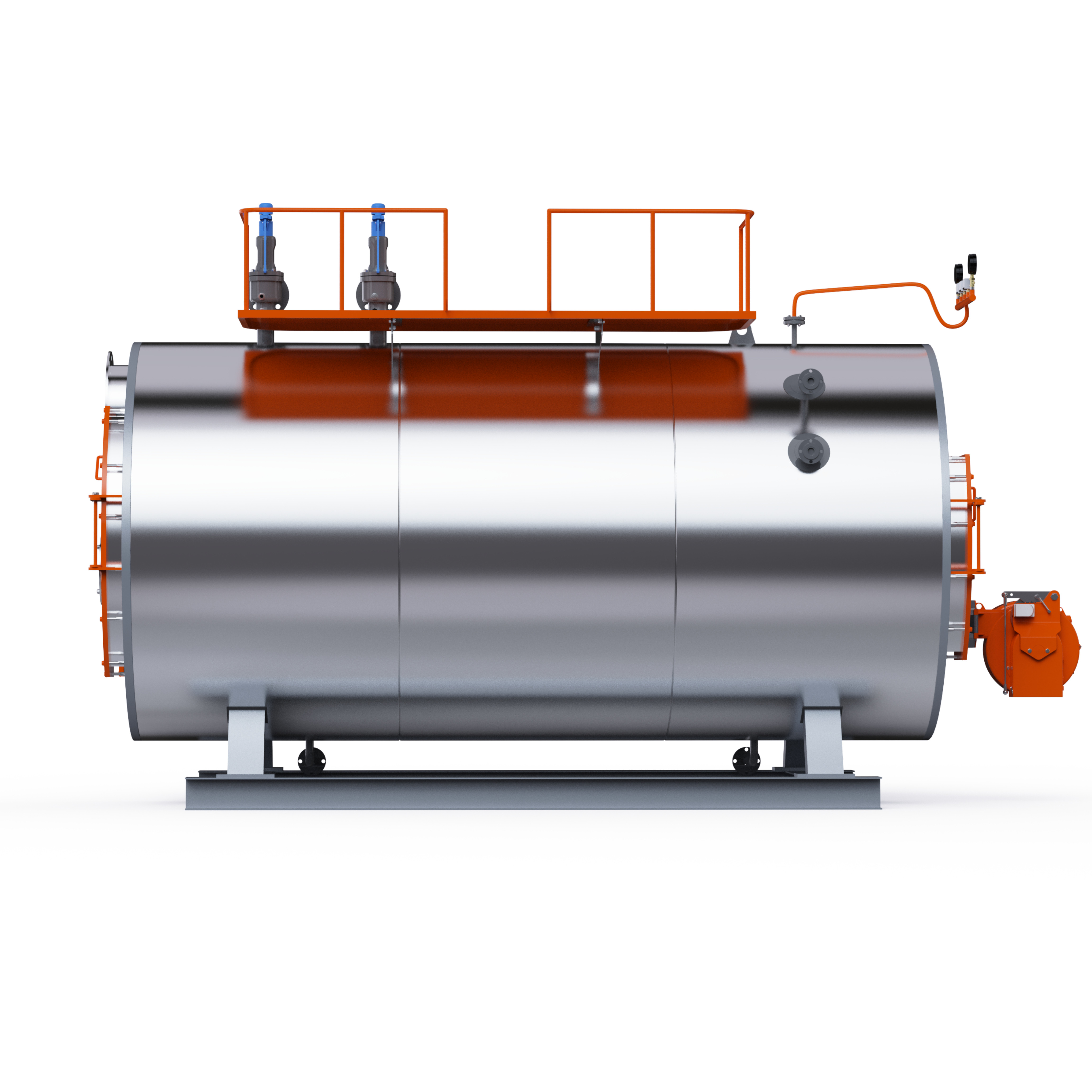

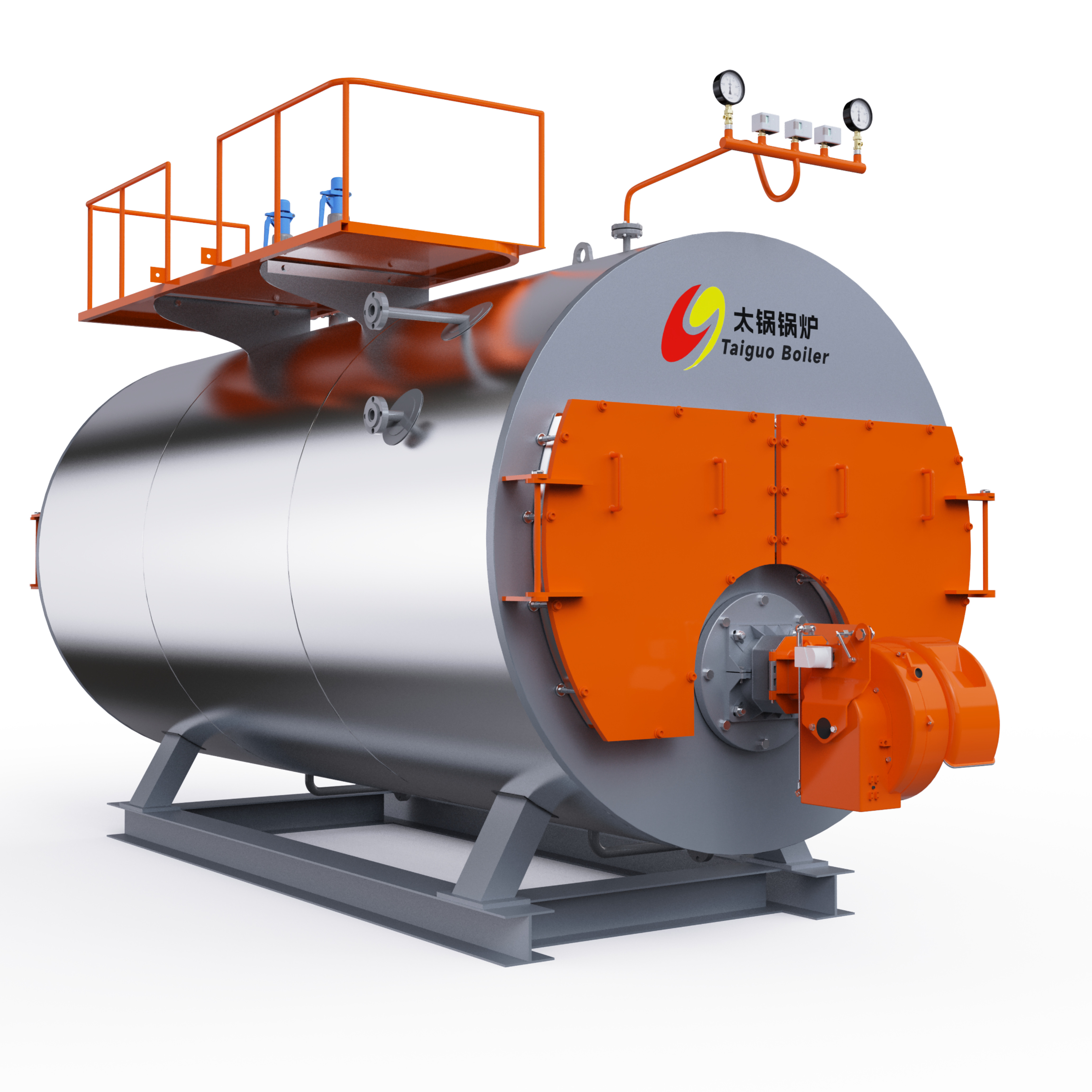

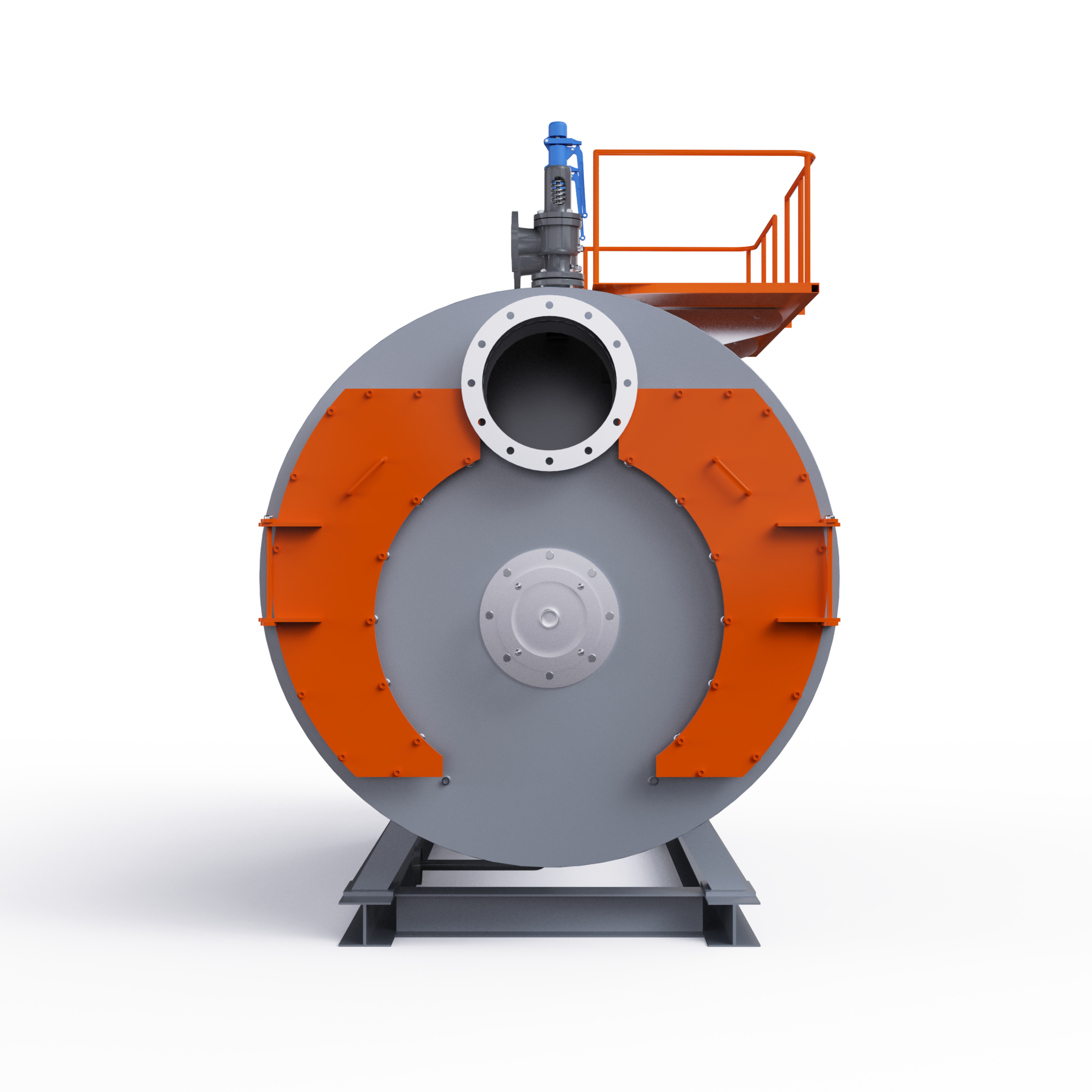

Product photos and flow charts:

Horizontal 50-1000kg Powered Natural Gas Fired Industrial Fire Tube Steam Boiler
