Product Description:

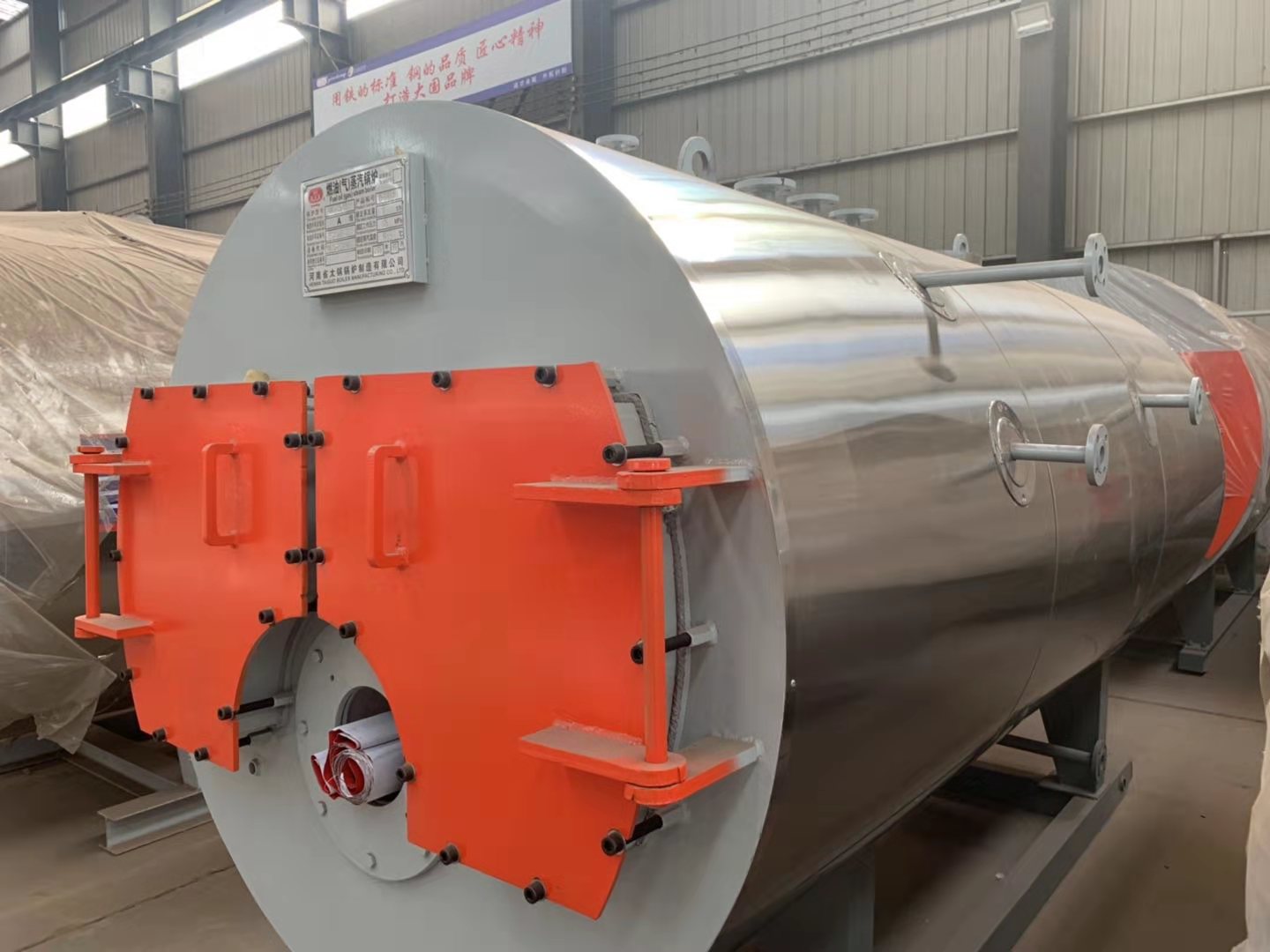

WNS series gas and oil boiler is a kind of gas and oil as fuel, for industrial users to provide efficient and environmentally friendly steam boiler. Equipped with PLC electrical components, high control accuracy, reliable performance, long service life. We provide our customers with a one-year quality guarantee. In addition, the boiler uses full wet back three return, high thermal efficiency, high steam quality, its evaporation capacity of 0.5t/ H-30t /h, thermal efficiency up to 96%, is the ideal choice for a variety of heating applications.
Features:
1.The boiler adopting large combusion chamber of wetback water cooiing,which ensure the product has big radiation heating area,large combusion area the fuel fully burned.
2.The second return pipe adopts a thread pipe to enhance heat transfer and improve boiler efficiency.
3.The full corrugated furnace has better thermal
expansion ,effectively absorbs thermal expansion ,whch can avoid stress concentration and prolong service life.
4.An explosion -proof door is located directly opposite the flashback chamber to ensure the safety of the boiler.
Technical Parameters:
| Model | Rated Capacity (t/h) | Rated Pressure (Mpa) | Rated Temperature (C) | Thermal Efficiency (%) | Exhaust gas temperature(ºC) | Maximum transport weight of boiler(t) | Maximum transport size of boiler( mm) | Fuel Consumption | | | | | | | | | | Light oil (Kg/h) | Natural gas (Nm³/h) | | WNS1 | 1 | 0.7/ 1.0/ 1.25 | 170/ 184/ 194 | >98 | ≤60 | 6.8 | 3400× 1700×2100 | 61.5 | 70.4 | | WNS1.5 | 1.5 | | | >98 | ≤60 | 7.7 | 3800× 1900×2400 | 93.75 | 107.1 | | WNS2 | 2 | 1.0/ 1.25/ 1.6 | 184/ 194/204 | >98 | ≤60 | 8.2 | 4300× 1900×2300 | 125 | 142.8 | | WNS3 | 3 | | | >98 | ≤60 | 9.9 | 3900×2100×2500 | 187.5 | 214.2 | | WNS4 | 4 | | | >98 | ≤60 | 12.7 | 4700×2200×2600 | 250 | 285.6 | | WNS5 | 5 | | | >98 | ≤60 | 14.2 | 5200×2300×2700 | 312.5 | 357 | | WNS6 | 6 | | | >98 | ≤60 | 17.5 | 5660×2400×2800 | 375 | 428.4 | | WNS8 | 8 | 1.25/ 1.6/2.5 | 194/204/225 | >98 | ≤60 | 21.3 | 5900×2500×3000 | 500 | 571.2 | | WNS10 | 10 | | | >98 | ≤60 | 22 | 6600×2700×3200 | 625 | 714 | | WNS12 | 12 | | | >98 | ≤60 | 27.2 | 7000×3000×330 | 750 | 856.8 | | WNS15 | 15 | | | >98 | ≤60 | 35.5 | 7500×3400×3600 | 937.5 | 1071 | | WNS20 | 20 | | | >98 | ≤60 | 45 | 7800×3700×4200 | 1250 | 1428 | | | Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas 2 ,Parameter is for reference only, we can design the boilers based on customers’ needs. | |
Applications profession:
Taiguo gas oil fired boilers are ideal for industrial boiler applications. Efficient and reliable, it is designed to provide optimal performance for oil heating, gas heating and general industrial applications. Applicable to a wide range of industries, including medicine, chemical, light industry, textile, food and beverage, foam plastics, paper and paper products, wood processing, etc.
Packing and Shipping:.
Packaging and transportation
Gas oil boiler body is naked, accessories will be packaged with boxes, transportation can be selected according to the customer's country by sea or land transport, air. The packaging is designed to protect the product from potential damage during transportation.
FAQ:
Q&A About TAIGUO Gas Oil Boiler
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
