Product Description:

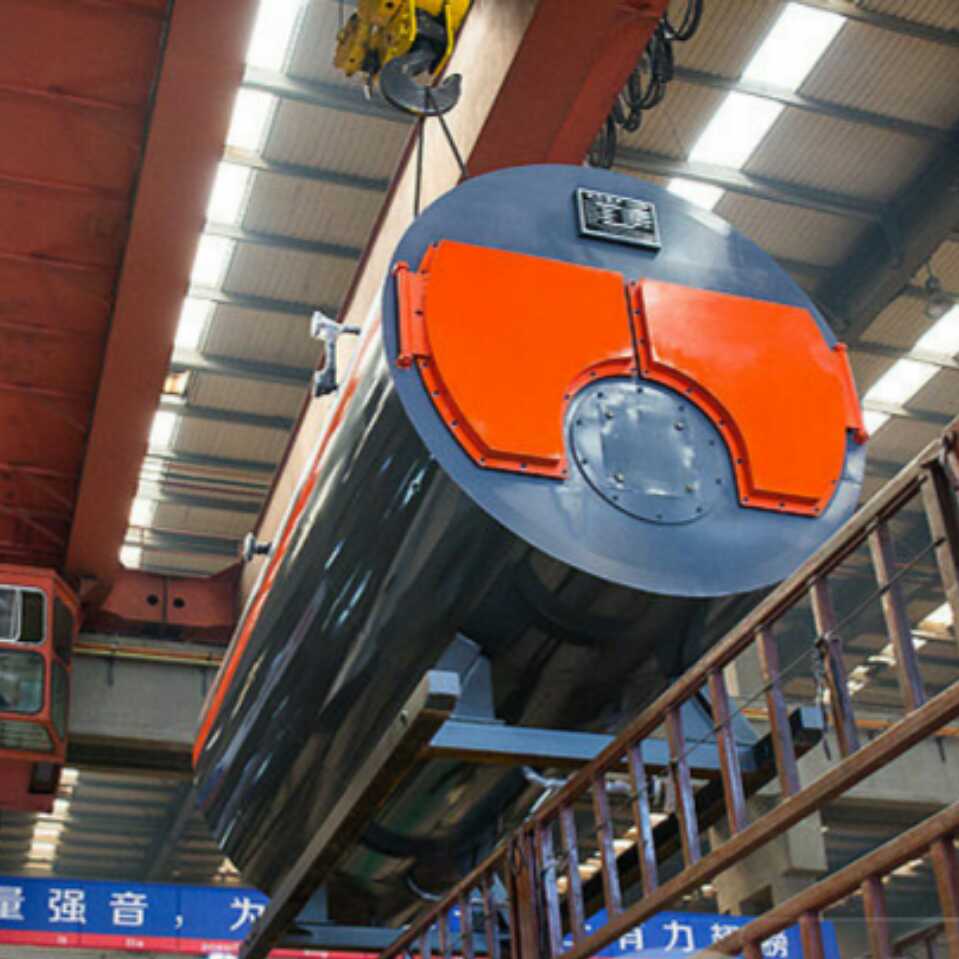

The gas-oil-fired boiler is a kind of dual-fuel steam boiler of oil and gas. The automatic gas steam boiler is a horizontal quick-loading internal combustion three-return fire tube boiler. The wet-back structure of large furnace, multi-tube bundle and offset furnace bladder is adopted. The high-temperature flue gas successively washes the second and third return flue pipes, and then drains into the atmosphere through the chimney from the rear flue chamber. The boiler is equipped with movable front and rear smokebox covers to facilitate boiler maintenance. The WNS type gas boiler is a boiler product developed by the technical cooperation of advanced countries in Western Europe and one of the implementation sub-projects of the high-efficiency and environment-friendly boiler project.
Features:
- The programmable logic controller (PLC) is combined with the touch screen and the button is installed to realize the manual and automatic dual intelligent control system.
2. With a full range of online help, multi-level Chinese pop-up menu and fault maintenance guide, greatly facilitate the user's operation and maintenance.
3. Full side contact safety interlocking protection function to ensure safe and efficient operation of the boiler.
4. The programmable logic controller (PLC) has sufficient reserved ports and modular expansion modules, which can realize group control, remote monitoring and building control, and reduce repeated investment for the special needs of users.
5. Multiple boilers are networked, and the number of boilers running and the load of each boiler can be automatically selected without setting the main console.
Technical Parameters:
| Property | Value |
| Dimension | LCD Display English And Chinese Menu Can Touch Screen |
| Weight | 6.8t-62t |
| Fuel Type | Natural Gas, Light Oil, Heavy Oil, Liquefied Petroleum Gas |
| Industry of Use | Medicine, Chemical Industry, Light Industry, Textile, Culture, Food And Beverage, Plastic Foam, Paper And Paper Products, Wood Processing |
| Installation Mode | Skid Mounting |
| Structural Form | Horizontal |
| Thermal Efficiency | 96% |
| Steam Temperature | 184,194,204 |
| Boiler Type | Steam Boiler |
| Country of Origin | Zhoukou In Henan Province |
Applications:
1. Foam factory
Use: supply production
2. Hardware factory
Use: supply production
3. Flooring factory
Function: Drying
4. Cabinet factory
Application: drying
5. Wooden door factory
Application: drying
6. Battery factory
Use: supply production
Support and Services:
Gas Oil Boiler Technical Support and Service
we provide technical support and service for our gas oil boiler products. Our team of highly experienced technicians are available to answer all of your questions and provide ongoing maintenance for your boiler. We offer a variety of services, including:
- Installation and setup
- Troubleshooting and repair
- Regular maintenance and inspection
- Replacement of parts
- Emergency repair services
- Advice and support for optimal usage
For more information about our gas oil boiler technical support and service, please contact us today.
FAQ:
Q&A
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
