WNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /h

Product Categories
HENAN TAIGUO BOILER PRODUCTS CO.,LTD.
Contact Now

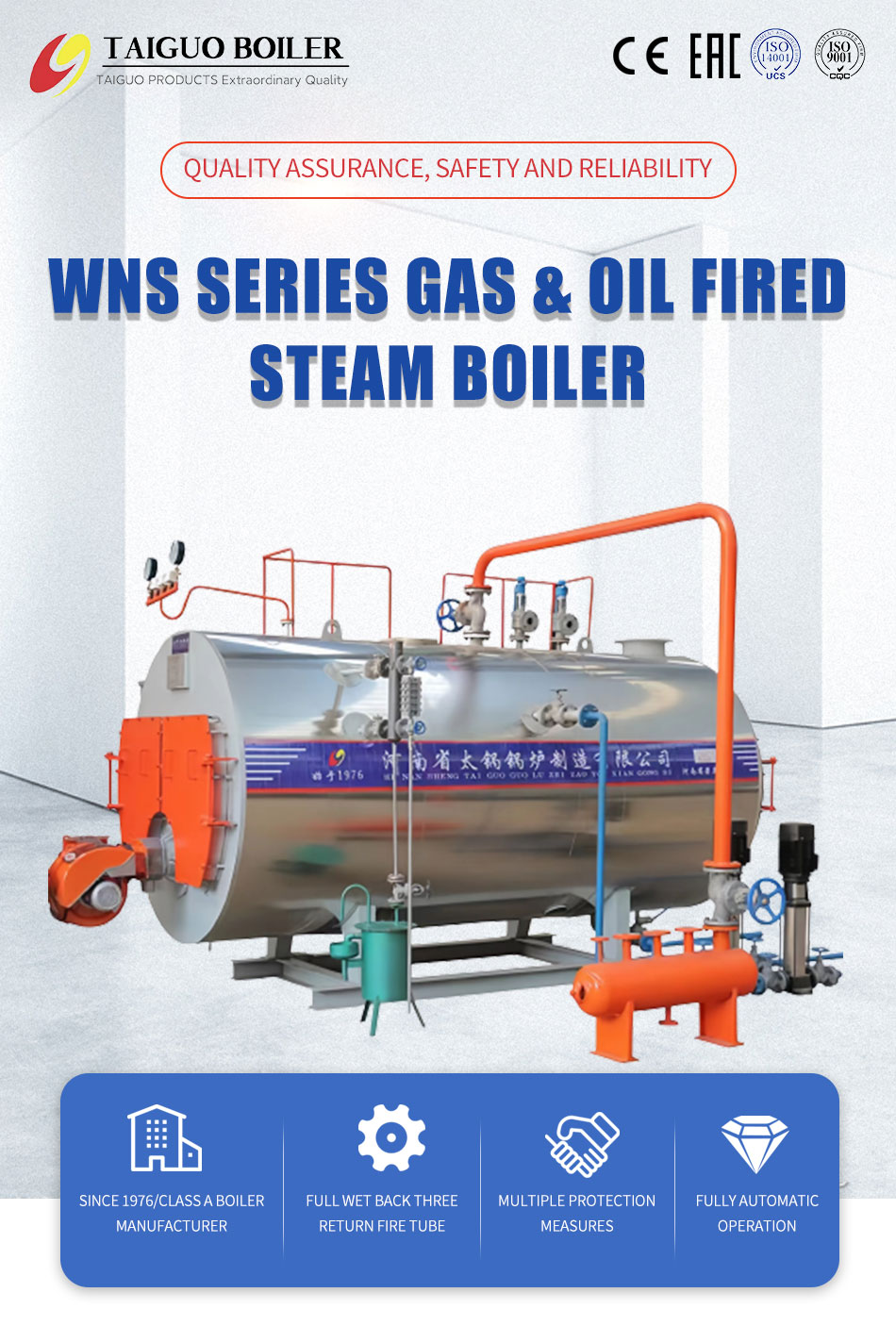

WNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /h

Brand Name : TAIGUO

Model Number : WNS steam boiler

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : USD9000-22500 set

Payment Terms : L/C, T/T

Supply Ability : 10

Delivery Time : 15-25 DAYS

Burner : High-efficiency, low-NOx

Capacity : 0.5-20 tons/hr

Combustion Chamber : Large volume

Control System : PLC

Design : 3-pass, wet back

Emission Standard : Euro III

Fuel : Natural gas, light oil, heavy oil, liquefied petroleum gas

Installation : Easy and fast

Pressure : 1.0、1.25、1.6Mpa

Safety System : Multiple safety protection

Temperature : 184-204°C

Thermal Efficiency : 96%

Type : Steam Boiler

Warranty : 1 year

Contact Now

WNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /hWNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /hWNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /hWNS series horizontal oil and gas industrial steam boiler 0.5t/ H-20T /h


Model

Rated

Capacity

(t/h)

Rated

Pressure

(Mpa)

Rated

Temperature

(C)

Thermal

Efficiency

(%)


Exhaust gas
temperature(ºC)

Maximum

transport weight

of boiler(t)


Maximum transport size of boiler( mm)

Fuel Consumption

Light oil (Kg/h)

Natural gas (Nm³/h)

WNS11

0.7/ 1.0/ 1.25

170/ 184/ 194

>98≤606.83400× 1700×210061.570.4
WNS1.51.5>98≤607.73800× 1900×240093.75107.1
WNS22







1.0/ 1.25/ 1.6







184/ 194/204

>98≤608.24300× 1900×2300125142.8
WNS33>98≤609.93900×2100×2500187.5214.2
WNS44>98≤6012.74700×2200×2600250285.6

WNS5

5

>98

≤60

14.2

5200×2300×2700

312.5

357

WNS6

6

>98

≤60

17.5

5660×2400×2800

375

428.4

WNS8

8




1.25/ 1.6/2.5




194/204/225

>98

≤60

21.3

5900×2500×3000

500

571.2

WNS10

10

>98

≤60

22

6600×2700×3200

625

714

WNS1212>98≤6027.27000×3000×330750856.8

WNS15

15

>98

≤60

35.5

7500×3400×3600

937.5

1071

WNS20

20

>98

≤60

45

7800×3700×4200

1250

1428

Note: 1,Fuel type:Light diesel oil/Heavy oil/Natural gas/Liquefied gas/City gas

2 ,Parameter is for reference only, we can design the boilers based on customers’ needs.
