2 Million Kcal Thermal Oil Boiler hot oil furnace For Plywood Factory

Name: 2 Million Kcal Thermal Oil Boiler hot oil furnace For Plywood Factory
Brand: TAIGUO
Price: 6000 USD

2 Million Kcal Thermal Oil Boiler hot oil furnace For Plywood Factory Manufactures

Brand Name : TAIGUO

Model Number : YYQW

Place of Origin : HENAN

Certification : EAC CE SGS

MOQ : 1

Price : USD6000-9800 Set

Supply Ability : 100

Payment Terms : L/C, D/A, D/P, T/T

Delivery Time : 15-25DAYS

Packaging Details : Whole box packaging

Fuel Type : Oil、gas

Safety Protection : Complete

Thermal Efficiency : 350

Power Output : High

Structure : Fire Tube

Manufacturing Level : A

Water Circulation : Natural Circulation

Burning Style : Chamber Combustion Boiler

Transport Package : Full Containers

Contact Now

2 Million Kcal High Temperature Thermal Oil Boiler for Plywood Factory

Product Description:

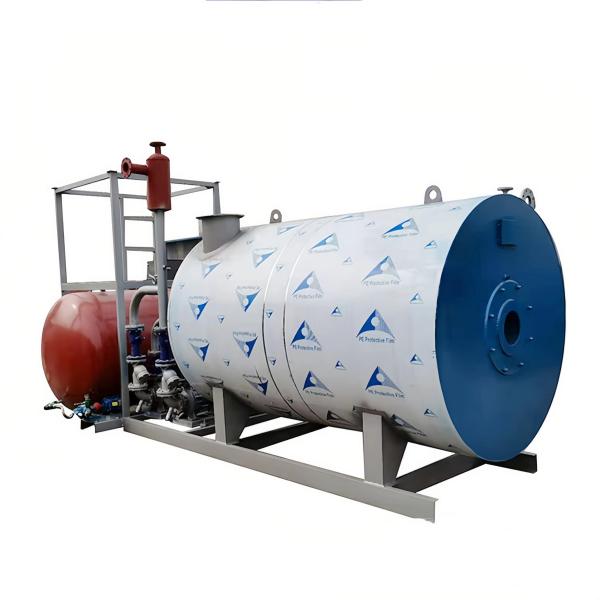

The thermal oil heater is a special industrial furnace that uses diesel as a fuel. The stove uses thermal carrier as a medium and uses the thermal cycle pump to strengthen the medium in the liquid cycle. Then transfer the thermal energy to the device, and then return to the stove to reintegrate.

This series of boilers has a high -level program control system, equipped with liquid level controller, pressure controller, temperature controller and alarm to ensure the orderly work of the boiler. Therefore, this is a safe boiler with high efficiency and low power consumption.

Technical Parameters:

Property	Value
Type	Thermal Oil Boiler
Design Temperature	350℃-450℃
Design Pressure	1.1MPa
Control Mode	Automatic
Structure	Horizontal/Vertical
Fuel	Oil/Gas light oil/heavy/LNG/CG
After-sales Service	Provided
Warranty	1 Year
Rated thermal power	2800kw
Thermal Efficiency	90%

Applications:

Thermal Oil Boiler

Application scopes:Chemical, oil, petrochemical, textile, printing, plastics,rubber, fiber, carbon, construction, cement, asphalt,metal, painting, wood processing, paper printing, nuclear industry, etc.

Packing and Shipping:

Packaging and Shipping

Thermal Oil Boiler is packaged using the highest quality materials and shipped with care to ensure it arrives safely and in perfect condition. We use strong cardboard boxes with bubble wrap and other packing materials to protect the product during transit. We also offer custom packaging solutions to meet customer requirements.
