Product Description:

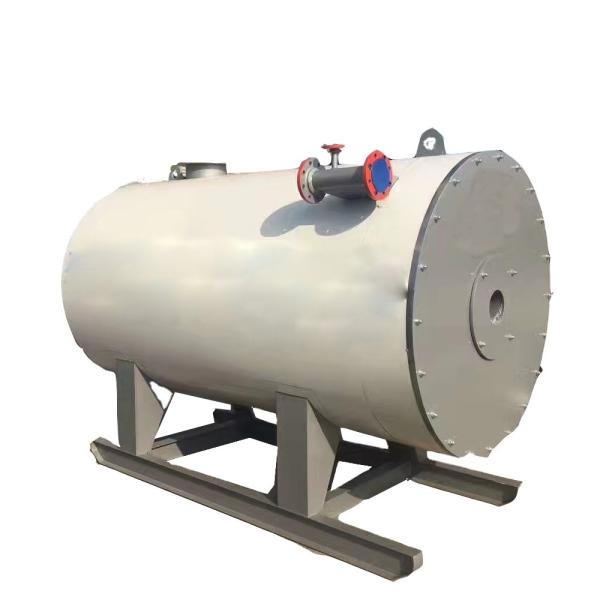

Thermal Oil Boiler is a type of biomass thermal oil heater boiler which is designed to provide high thermal efficiency, high design temperature, large boiler capacity and compact boiler structure, through the use of oil as fuel. With the fuel type of oil, the biomass thermal oil boiler can offer a high thermal efficiency up to 98% and can reach a maximum design temperature of up to 350℃. The large boiler capacity of Thermal Oil Boiler can meet the requirements of different applications. In addition, the compact boiler structure of Thermal Oil Boiler can ensure a small installation area and easy operation. Thermal Oil Boiler is also renowned for its superior safety performance .
Technical Parameters:
1. The flue gas three retures
2. Wet back structure
3. Compact coil tube
4. Multifunctional safety explosion-proof device
Product parameters
| model ltem | YY(Q)W 350 | YY(Q)W 500 | YY(Q)W 700 | YY(Q)W 1400 | YY(Q)W 2100 | YY(Q)W 2800 | YY(Q)W 3500 | YY(Q)W 4200 | YY(Q)W 7000 | YY(Q)W 14000 | | Rated thermal p ower | KW | 350 | 500 | 700 | 1400 | 2100 | 2800 | 3500 | 4200 | 7000 | 14000 | | Design pressure | Mpa | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | 1.1 | | Medium outlet t emperature | C | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | ≤350 | | Heating area | m | 21.3 | 24 | 40 | 78.5 | 94.5 | 157 | 205.2 | 240 | 410 |  710 | | Fuel | light oil/heavy/LNG/CG | | Fuel | Light oil | Kg/h | 37 | 52 | 69 | 140 | 210 | 280 | 350 | 420 | 680 | 1360 | | LNG | Nm3/h | 44 | 63 | 83 | 170 | 260 | 332 | 425 | 498 | 810 | 1620 | | Thermal efficiency | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | 96% | | Furnace oil cont ent | m3 | 0.25 | 0.3 | 0.5 | 1.1 | 1.7 | 2.29 | 3.8 | 4.3 | 7 | 15.5 | | Boiler dimension s | mm | 2100× 1390× 2055 | 2200× 1390× 2055 | 3240× 1470× 2260 | 4145× 1900× 2786 | 5020× 2050× 3080 | 5526× 2326× 3230 | 6555× 2470× 3634 | 6753× 2838× 3704 | 8200× 3050× 3800 | 12000× 3780× 4350 | | Boiler transport weight | T | 2.58 | 3 | 3.7 | 6.9 | 8.8 | 11.5 | 17.8 | 19.8 | 27.5 | 42 | | Oil inlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 | | Oil outlet | DN | 80 | 100 | 100 | 125 | 150 | 150 | 200 | 200 | 250 | 350 | | Expansion tank | m3 | 1.5 | 1.5 | 1.5 | 2.5 | 2.5 | 3 | 3 | 4.5 | 6 | 8 | | Storage tank | m3 | 2.5 | 2.5 | 2.5 | 5 | 5 | 8 | 8 | 10 | 15 | 25 | | ChimneyΦ | mm | 280 | 280 | 280 | 350 | 400 | 400 | 500 | 500 | 700 | 1000 | | |
Applications:
textile factory, food and beverage, chemical industry, medicine, light industry, rubber, printing and dyeing factory, paper factory, wood processing, clothing, laundry, etc.
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
