High Thermal Efficiency WDR 700kg Electric Heating Steam Boiler For Food Processing

Name: High Thermal Efficiency WDR 700kg Electric Heating Steam Boiler For Food Processing
Brand: taiguo boiler
Price: 7999 USD

High Thermal Efficiency WDR 700kg Electric Heating Steam Boiler For Food Processing Manufactures

Brand Name : taiguo boiler

Model Number : WDR

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 7999-19999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Usage : Industrial

Control : Automatic Control

Steam Capacity : 2 ton/h, 2000kg/h, 150hp

Design : Advanced Design

Control Type : automatic

Thermal Effect : 99%

Fuel : electric

Working Pressure : 1.0、1.25、1.6Mpa

Advantage : PLC programming controller

Contact Now

Product Introduction:

WDR series fully automatic horizontal electrically heated steam boiler adopts the separation method of furnace body and electric control cabinet, which avoids the service life of electrical components being affected by heat aging. The electric heating pipe is made of excellent products, with a normal service life of about 20,000 hours and a thermal efficiency of nearly 99%. It runs quietly and cleanly, and meets the requirements of environmental protection, and will not emit NOx (nitrogen oxides) into the atmosphere. The electromechanical split is installed, and the electric control components are far away from the heat source, which is favorable for heat dissipation. Single or multiple parallel use. Adopting PLC microcomputer programmable control and display screen; realizing automatic control of water temperature through man-machine interface for temperature setting. The display screen can show the status of the equipment operating parameters and fault alarm.

Product Characteristics:

Compact structure, scientific and reasonable design and manufacturing process, so that the boiler occupies little space, easy to transport and save the use of space.
no noise, no pollution, high thermal efficiency, the boiler body adopts excellent and efficient insulation materials, small heat loss, energy saving.
boiler packaging using excellent color plate package design, beautiful appearance, not easy to rust.
all the electrical components have CE and CCC certification mark, to protect the service life of the product.
the circuit design is reasonable, well-made, neat and reasonable wiring, easy to operate.

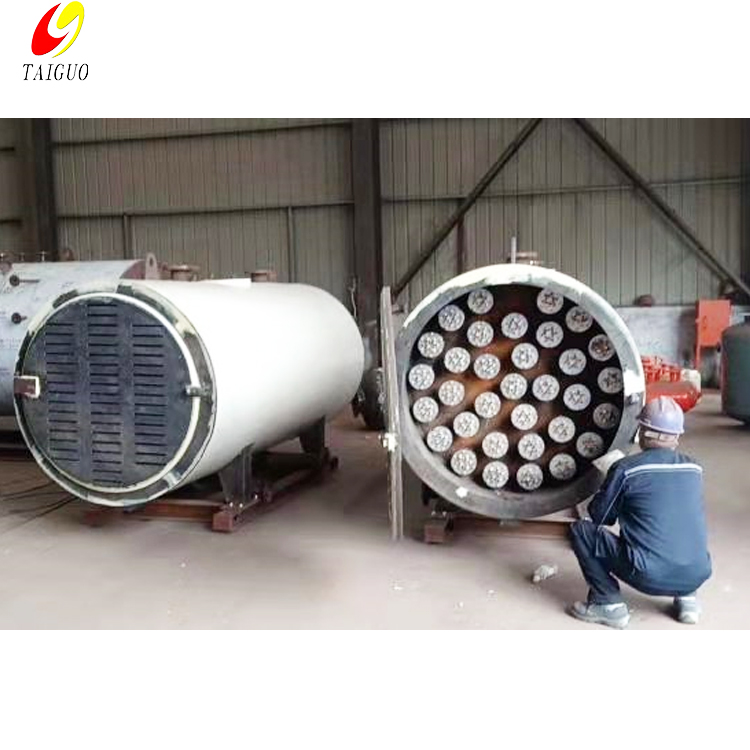

electric heating tube and furnace body using flange link, easy to disassemble, easy maintenance.
with automatic water replenishment, water shortage, over-temperature, overpressure, automatic power-off and alarm and leakage protection and other safety protection systems.
PLC microcomputer programmable control and display; through the human-computer interface to realize the temperature setting automatic control of the water temperature, the display can show the status of the equipment operating parameters and fault alarm.

Technical Paramet

Model	WDR0.5	WDR1	WDR1.5	WDR2	WDR3	WDR4	WDR6
Rated steam (t/h)	0.5	1	1.5	2	3	4	6
Electric power (KW)	375	750	1050	1500	2250	3000	4500
Rated pressure (Mpa)	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25
Rated steam Temperature(℃)	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194
Heat Efficiency (%)	99
Size(mm)	266615361566	300014001650	350016001750	400017001950	431221242242	438024002662	490826713390
Reference weight (kg)	1263	2100	2600	3100	5450	5203	6600

High Thermal Efficiency WDR 700kg Electric Heating Steam Boiler For Food Processing

Q1:How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

1.Electric control cabinet adopts PLC touch screen, display in English.

2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.

3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

Product Pictures:
