Product Introduction:
The electric control cabinet of the furnace body is separated to avoid the influence of the service life of the electrical components due to heat aging. The electric heat pipe uses domestic and foreign high-quality products, the normal service life is about 20,000 hours, the thermal efficiency is nearly 99%, the operation is quiet, clean, meets the requirements of environmental protection, and will not emit NOx(nitrogen oxides) to the atmosphere. The operation adopts PLC control system, all free operation button, all free indicator light, touch screen panel Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.
Boiler characteristics:
1. All electrical components have CE and CCC certification marks to ensure product safety and service life.

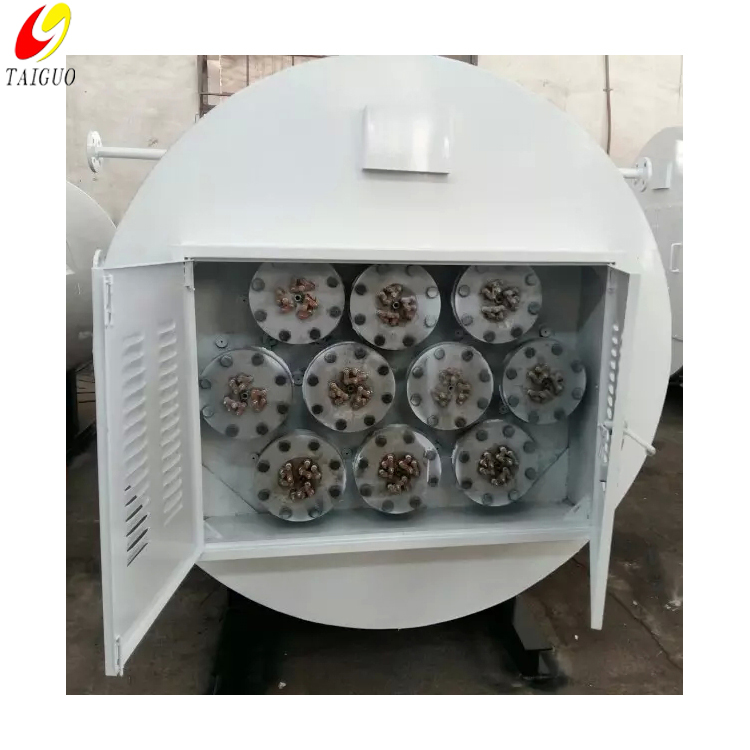

2.each group of electric heating elements using a concentrated beam type flange connection, independent setting, with simple structure, high mechanical strength, safe and reliable, easy to replace, long service life and other characteristics.
3 with large steam space, steam quality is good.
4. electromechanical separate installation, electronic control components away from heat source, favorable heat dissipation. Can be used in parallel with single or multiple units.
5. PLC microcomputer programmable control and display screen; Through the man-machine interface to achieve temperature setting automatic control of water temperature. The display screen can display the equipment status, operation parameters and fault alarm.
| | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
| |
0.5
|
1
|
1.5
|
2
|
3
|
4
|
6
|
| |
375
|
750
|
1050
|
1500
|
2250
|
3000
|
4500
|
| |
0.7/1.0/1.25
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
0.7/1.0/1.25
|
Rated steam Temperature(℃) |
170/184/194
|
170/184/194
|
170/184/194
|
170/184/194
|
170/184/194
|
170/184/194
|
170/184/194
|
| | |
| | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
| |
1263
|
2100
|
2600
|
3100
|
5450
|
5203
|
6600
|
