Product introduction
Wood impregnation tank is a common form of wood treatment tank, because the general wood tank wood treatment may need to be impregnated, the company's production of wood protection complete sets of vacuum pressure equipment, suitable for all kinds of wood anticorrosion, flame retardant, moth, fire, insect, modification, dyeing, carbonization, degreasing and other deep processing. It has the advantages of wide applicability, good deep processing effect, large capacity, reasonable layout, low cost and high output, safety and reliability, reducing labor intensity, saving labor force, and widely meeting users' requirements for all kinds of wood deep processing.
Process flow
1.Preparation of liquid medicine: preparation of liquid medicine, and then injected into the storage tank, the storage tank of liquid medicine can be strengthened or diluted according to the need.
2.Feed: First of all, the wood to be treated is put into the trolley, and then the trolley enters the wood dip tank through the track, and the door of the wood dip tank is closed and closed tightly. The specific operations are as follows: (1) First try to close the tank door, observe whether the flange of the tank door and the upper and lower left and right planes of the tank body clamp ring are parallel and adjust in time; (2) After confirming the parallel, start the hydraulic system to screw the clamp ring. (Note: Be sure to make the tank door flange match the tank body clamp ring, and check whether the travel switch on the screw mechanism is intact before starting the hydraulic station or starting the door close.)
3.Vacuum operation: After the tank door is closed, open the vacuum valve, close all other valves, start the vacuum operation, and keep the vacuum.
4.Liquid intake: After vacuum operation, the use of negative pressure for liquid intake, so that the impregnation into the wood impregnation tank.
5.Pressurization: Pressurization according to different materials and standards. Soak the liquid into the wood. According to the type of wood, choose different pressure time.
6.Drain: Drain the impregnation solution and enter the impregnation storage tank.
7.Vacuum: To remove the remaining impregnation from the wood.
8.Discharge: Release pressure before discharge, and then open the door of the wood impregnation tank to discharge material.
Technical parameter:
| Tank diameter (cm) | DN1000 | DN1200 | DN1500 | DN2000 | DN2200 | DN2500 |
| Tank length (cm) | 8000 | 8000 | 8000 | 8000 | 8000 | 8000 |
| Wood processing capacity (m³) | 3.5 | 5.0 | 8.0 | 12 | 13.5 | 15.5 |
Q1:How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp,or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.

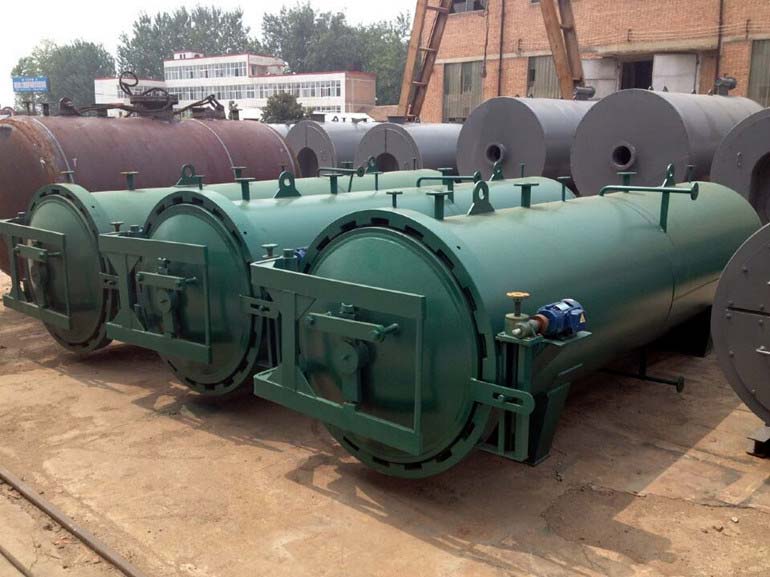

Product picture
