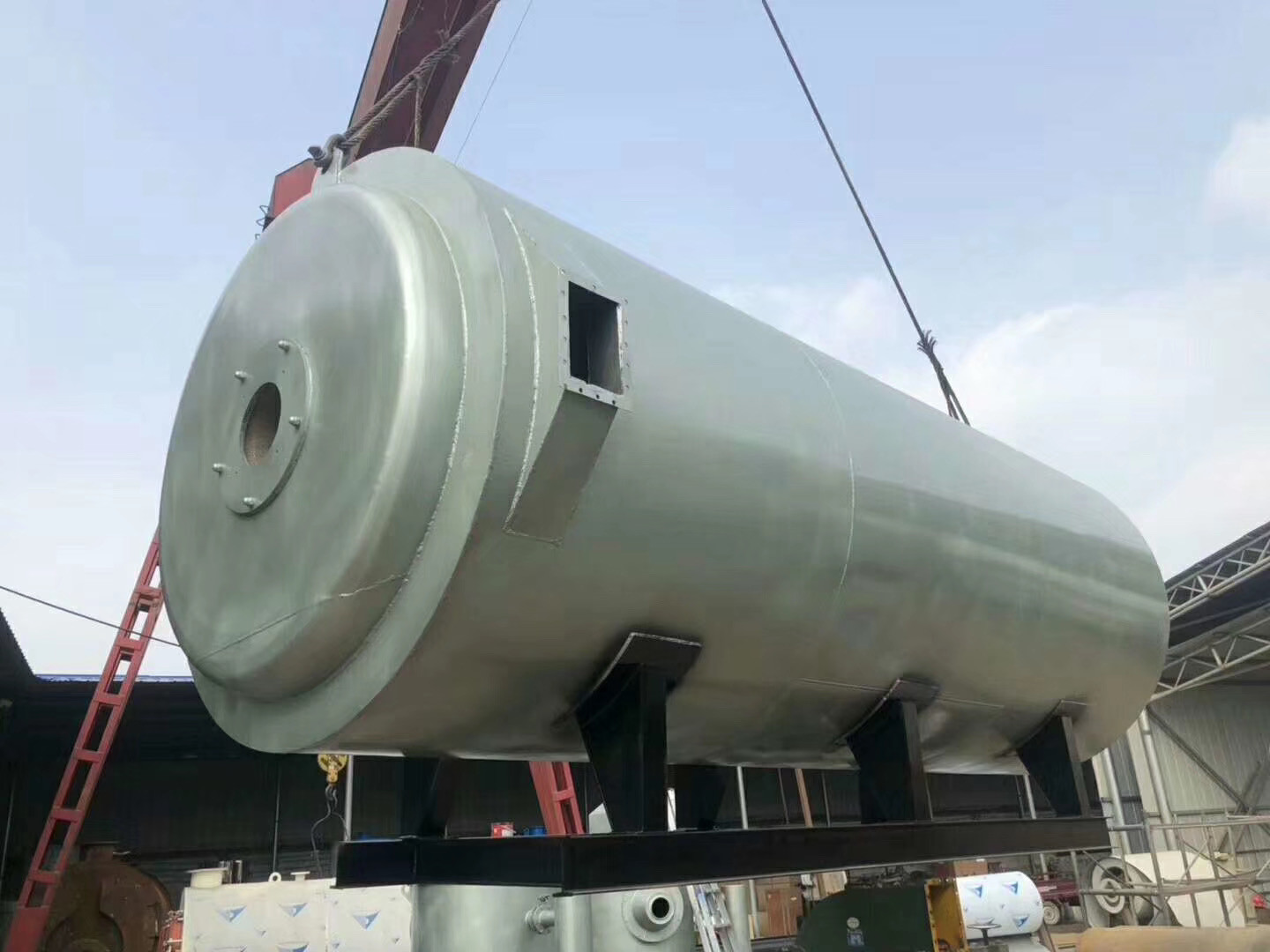

Product introduction:
Horizontal industrial hot blast stove product structure is simple, flexible layout, lined with refractory layer, short construction period, simple equipment foundation, mobile use, compact structure, small size, small footprint, low metal consumption. Factory with quick assembly type, easy to install; It can save a lot of capital investment. Wide range of fuel applications: natural gas, liquefied petroleum gas, coke oven gas, producer gas, blast furnace gas and mixed gas and other kinds of gas.
Product advantage:
1. Economy
Adopt the latest energy-saving and environmental protection technology, use efficient insulation materials, heat loss is very low, saving fuel costs;
2. Security
With a variety of over-temperature protection functions, safe and reliable;
3. Practicality
The boiler has the advantages of simple structure, small footprint, convenient installation and maintenance and long service life.
4. Convenience
Automatic computer type and digital display type can be arbitrarily selected, easy to operate, less fault, easy to use;
5. Adjustability
High performance brand burner for heating equipment, start fast, flame combustion is complete, full, combustion exhaust clean, clean, to ensure the safety of dry food; Equipped with intelligent controller of hot blast stove, precise temperature control; The efficiency of natural gas use is close to 98%; Automatic adjustment, short heating time, after reaching the set temperature, automatically turn to a small fire to maintain the working temperature, saving energy.
6, according to the fan air volume size set the required air temperature, easy to operate, easy to maintain.
| LRF-10 | WRF-20 | WRF-30 | WRF-40 | WRF-60 | WRF-80 | WRF-100 | WRF-120 |
| Thermal Efficiency(％) | 70 | 70 | 70 | 70 | 75 | 75 | 75 | 75 |
| Hot Air Outlet Temperature(℃) | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 | 200-300 |
| Heating Supplied(MW) | 0.12 | 0.24 | 0.35 | 0.47 | 0.7 | 0.93 | 1.17 | 1.4 |
| Air Volume(Nm／h) | 3297-2198 | 3847-3572 | 5447-3912 | 6445-7513 | 6786-7532 | 7813-8685 | 8867-9984 | 10556-12370 |
| Coal Consumption(Kg／h) | 27 | 54 | 85 | 108 | 162 | 211 | 260 | 320 |
| Power Consumption(KW) | 7.2 | 9 | 11 | 22 | 24 | 24 | 30 | 37 |
| Design Fuel | Natural gas, light oil, heavy oil |
|  Overall Diameter(mm)
Dimension Height(mm) | 1220 | 1500 | 1750 | 1840 | 1850 | 2100 | 2340 | 2500 |
| 2450 | 2740 | 3500 | 3790 | 4350 | 6395 | 6400 | 6800 |
| Weight Reference(t) | 1.3 | 1.6 | 2.3 | 3.8 | 4.2 | 5.2 | 6.4 | 8 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
