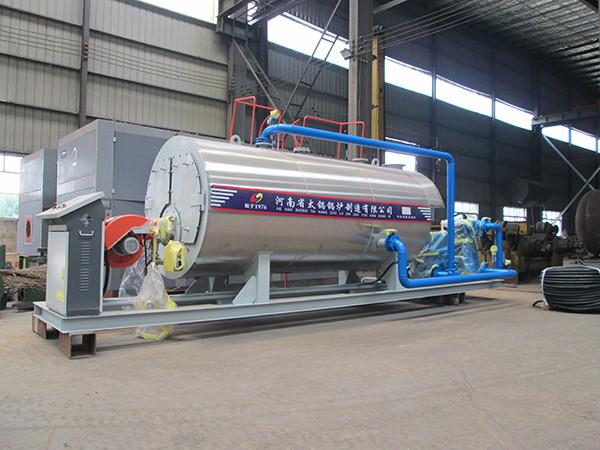

CWNS Series Automatic Oil Gas Horizontal Hot Water Boiler

Name: CWNS Series Automatic Oil Gas Horizontal Hot Water Boiler
Brand: TAIGUO
Price: 1 USD

CWNS Series Automatic Oil Gas Horizontal Hot Water Boiler Manufactures

Brand Name : TAIGUO

Model Number : CWNS

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $9000.00

Payment Terms : D/P, L/C, T/T, Western Union, D/A

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Product name : Hot water boiler

Suitable fuel : Natural gas/LPG/LNG/City gas/Biogas/ Diesel /Heavy Oil

Thermal efficiency(%) : 98

Power Output : 10 kW

Control System : Digital Control Panel

Water Volumn : 5.1-20.5m³

Installation Mode : Bulk, skid

Working Pressure : 1 MPa

Efficiency : 83%

Grate Area : 4.8㎡

Temperature Range : 50-80 degrees Celsius

Keyword : Chain Grate hot water boiler

Pressure Range : 0.5-1.5 MPa

Structure : Fire Tube

Warrary : 2 years

Warranty : 1 year

Voltage Frequency : 380/50V/HZ

Heat Power : 0.14MW

Transport Package : Export Standard Package

Outlet Water Pressure : 1.0MPa

Condition : new

Dimension : 6.33*2.7*3.3m

Output : Steam

Power Consumption : 18-87.2kw

Application : Industrial production, heating, hot water supply

Rated Current : 540-4320A

Material : Q345R Steel Plate

Structural Form : horizontal

Working Temperature : ≤350℃

Contact Now

Product introduction:

CWNS series fully automatic fuel oil (gas) horizontal hot water boiler adopts horizontal three-way wet back structure, which improves the operating environment of the boiler and enhances the efficiency and service life of the boiler. High-performance burner fully matched with the boiler, fully automatic adjustment, so that the combustion is full, saving fuel and reducing pollution. Adopting ultra-fine glass wool, high thermal insulation performance, less heat loss; using intelligent energy-saving control system to control the boiler and water supply, heating and automatic water temperature system, combining different loads to adjust the fuel supply and save energy. Installation is an integral quick-fit boiler, with low vibration, no special requirements for foundation, no need to fix the foot bolt, simple and convenient installation.

Translated with DeepL.com (free version)

Product characteristics:

1) Steel structure, easy in installation and maintation.
2) Adopting advanced world famous brand components in pneumatic parts ,electric parts and operation parts.
3) Running in a high automatization and intellectualization,no pollution

Technical parameter:

Item

WNS0.7

WNS1.4

WNS2.1

WNS2.8

WNS3.5

WNS4.2

WNS5.6

WNS7

WNS10.5

WNS14

Rated power

(MW)

0.7

1.4

2.1

2.8

3.5

4.2

5.6

10.5

Rated working pressure(Mpa)

Atmospheric pressure/0.7/1.0

Rated effluent

temperature(℃)

85/95/117

Rated return water temperature(℃)

60/70/70

Thermal efficiency(%)

Thermal efficiency

(㎡)

107

127

198

212

272

358

448

Energy saver heating area (㎡)

Suitable fuel

Natural gas/LPG/LNG/City gas/Biogas/ Diesel /Heavy Oil

Fuel consum

ption

Diesel(Kg/h)

121

182

241.5

302

362

485

612

905.6

1207.5

Natural gas(Nm³/h)

140.5

210.6

283

351.5

422.4

563

705.5

1055

1408

Weight(t)

7.1

8.2

9.9

12.7

14.2

17.5

21.3

35.5

Maximum transport size of boiler( mm)

3400× 1700×2100

4300×1900×2300

3900×2100×2500

4700×2200×2600

5200×2300×2700

5660×2400×2800

5900×2500×3000

6600×2700×3200

7500×3400×3600

7800×3700×4200

CWNS Series Automatic Oil Gas Horizontal Hot Water Boiler
