Plc Control System With High Thermal Efficiency WDR500kg Electric Heating Steam Boiler

Name: Plc Control System With High Thermal Efficiency WDR500kg Electric Heating Steam Boiler
Brand: taiguo boiler
Price: 4500 USD

Plc Control System With High Thermal Efficiency WDR500kg Electric Heating Steam Boiler Manufactures

Brand Name : taiguo boiler

Model Number : WDR

Certification : CE,SGS,EAC

Place of Origin : HENAN,CHINA

MOQ : 1

Price : 4500-9999USD

Payment Terms : L/C, D/A, D/P, T/T

Supply Ability : 100set

Delivery Time : 20-30days

Packaging Details : nude packing

Origin : Henan

Temperature : 170/184/194℃

Fuel : electric

Control System : PLC

Steam Temperatur : 170/184/194C

Construction : Carbon Steel

Quantity Of Steam : 100kg-6000kg

Safety : High Safety

Output : steam

Evaporation : 0.1-4t

Contact Now

Product introduction

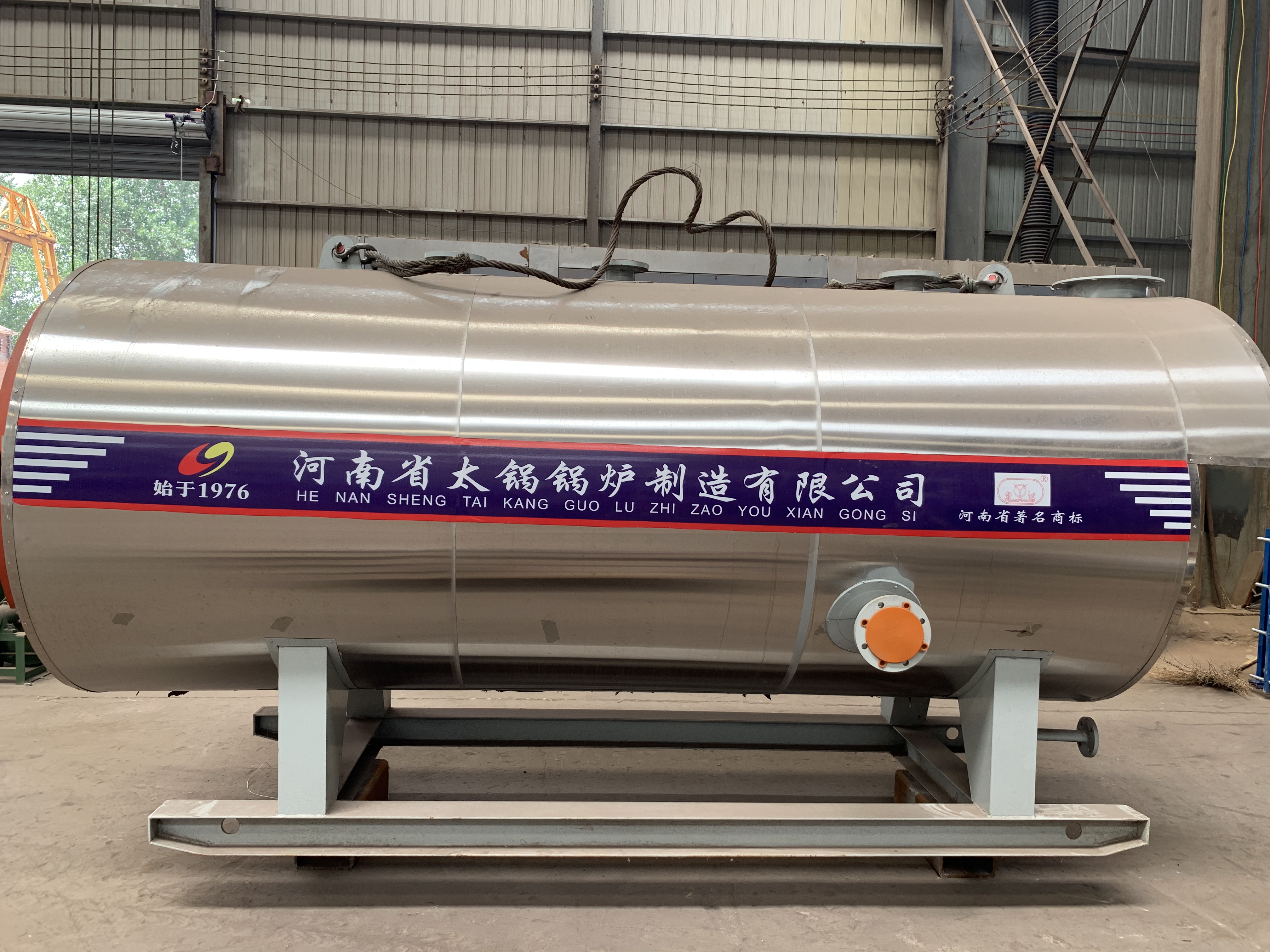

WDR type horizontal electric heating steam boiler has large steam space and good steam quality. Electromechanical separate installation, electronic control components away from the heat source, favorable heat dissipation, single or multiple parallel use. WDR type horizontal electric heating steam boiler adopts the separation mode of furnace body electric control cabinet to better avoid the aging of electrical components. All electrical components are made of well-known brand products, safe and reliable products, long service life.

Product characteristics

The boiler adopts step-by-step loading or load reduction design, which effectively protects the heating element, reduces the impact on the power grid, and extends the service life.

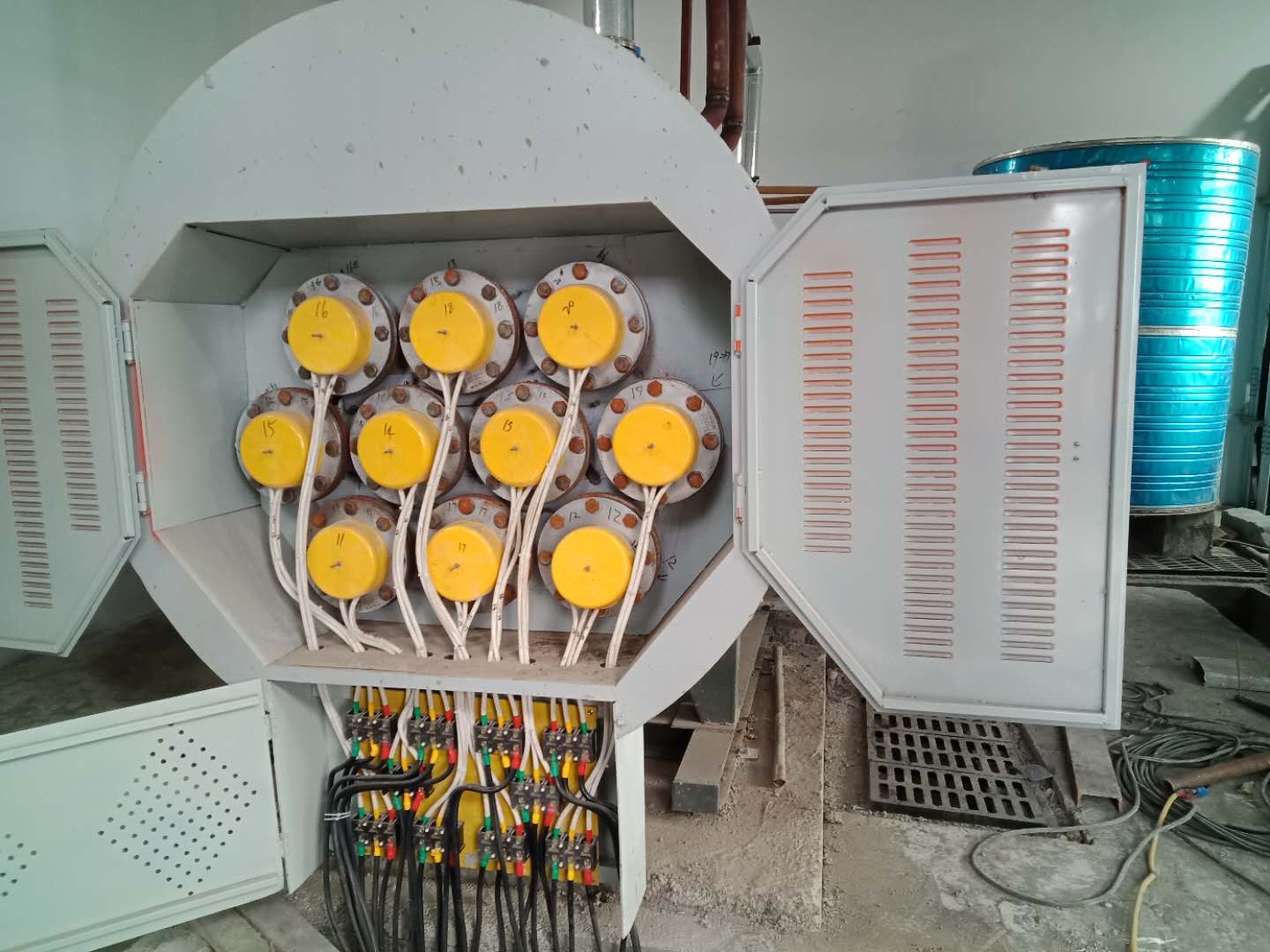

The heating device uses ceramic electric heating tube whose surface load is several times lower than that of metal heating tube, which extends the service life and improves the thermal efficiency, up to 99%.
According to the need to set the automatic operation of the boiler period, better is a day can set a number of different working periods.
The boiler body adopts high-quality thermal insulation materials to do thermal insulation, which has small heat dissipation and reduces energy consumption.
The controller adopts digital liquid crystal display, all Chinese display, graphical operation interface, users can directly view the equipment operating parameters through the display.

Technical Paramet

Model	WDR0.5	WDR1	WDR1.5	WDR2	WDR3	WDR4	WDR6
Rated steam (t/h)	0.5	1	1.5	2	3	4	6
Electric power (KW)	375	750	1050	1500	2250	3000	4500
Rated pressure (Mpa)	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25	0.7/1.0/1.25
Rated steam Temperature(℃)	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194	170/184/194
Heat Efficiency (%)	99
Size(mm)	266615361566	300014001650	350016001750	400017001950	431221242242	438024002662	490826713390
Reference weight (kg)	1263	2100	2600	3100	5450	5203	6600

Plc Control System With High Thermal Efficiency WDR500kg Electric Heating Steam Boiler

Q1:How can you get the best price quickly?

1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you
need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.

Q2:Why choose us?

1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.

Q3: Details of electric control cabinet

1.Electric control cabinet adopts PLC touch screen, display in English.

2. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc.

3. the cabinet is used for set up the parameter, record and analyze the operation data, etc.

product picture

Product Tags:

WDR500kg Electric Heating Steam Boiler

Plc Electric Heating Steam Boiler

Plc Control System With High Thermal Efficiency WDR500kg Electric Heating Steam Boiler Images
