Product introduction:

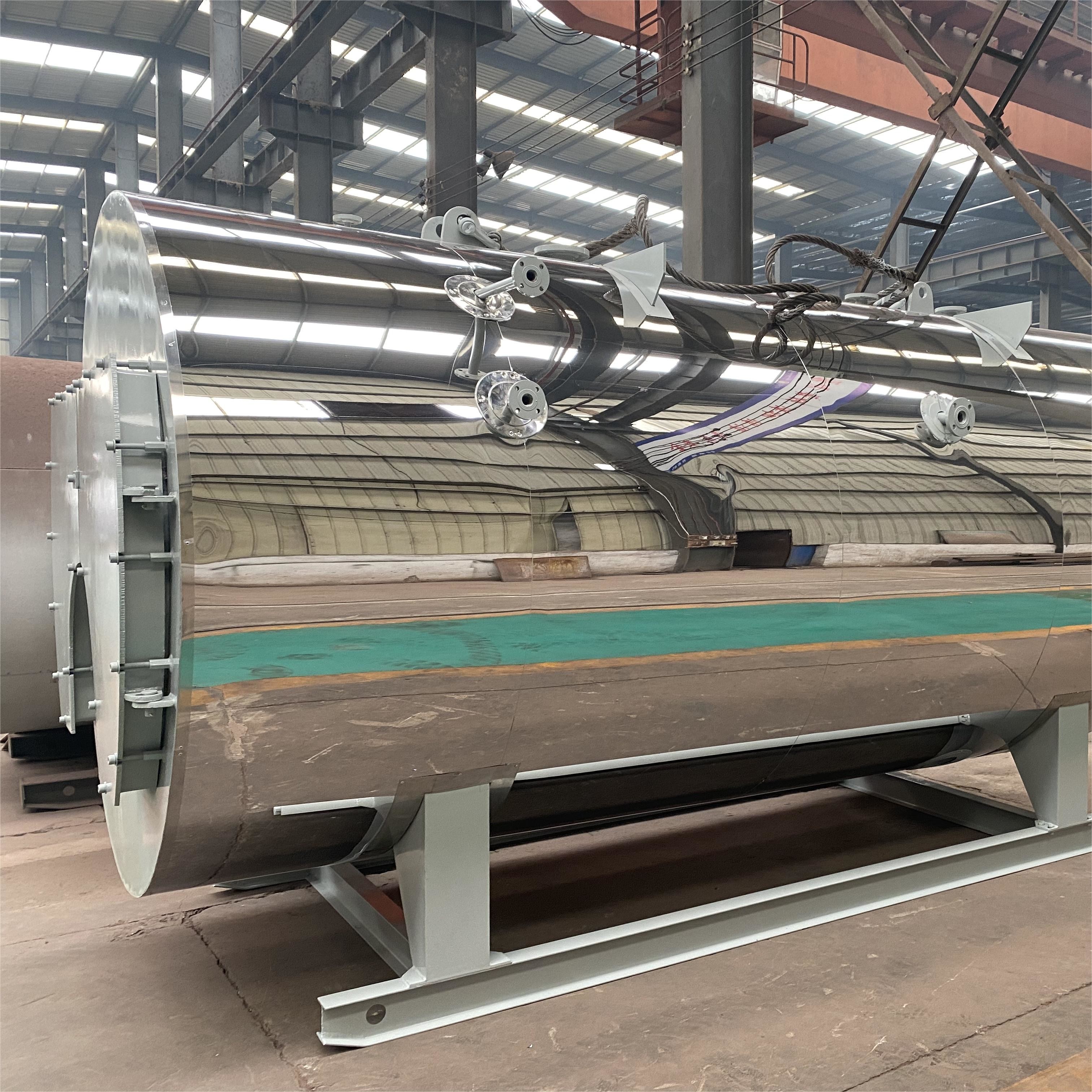

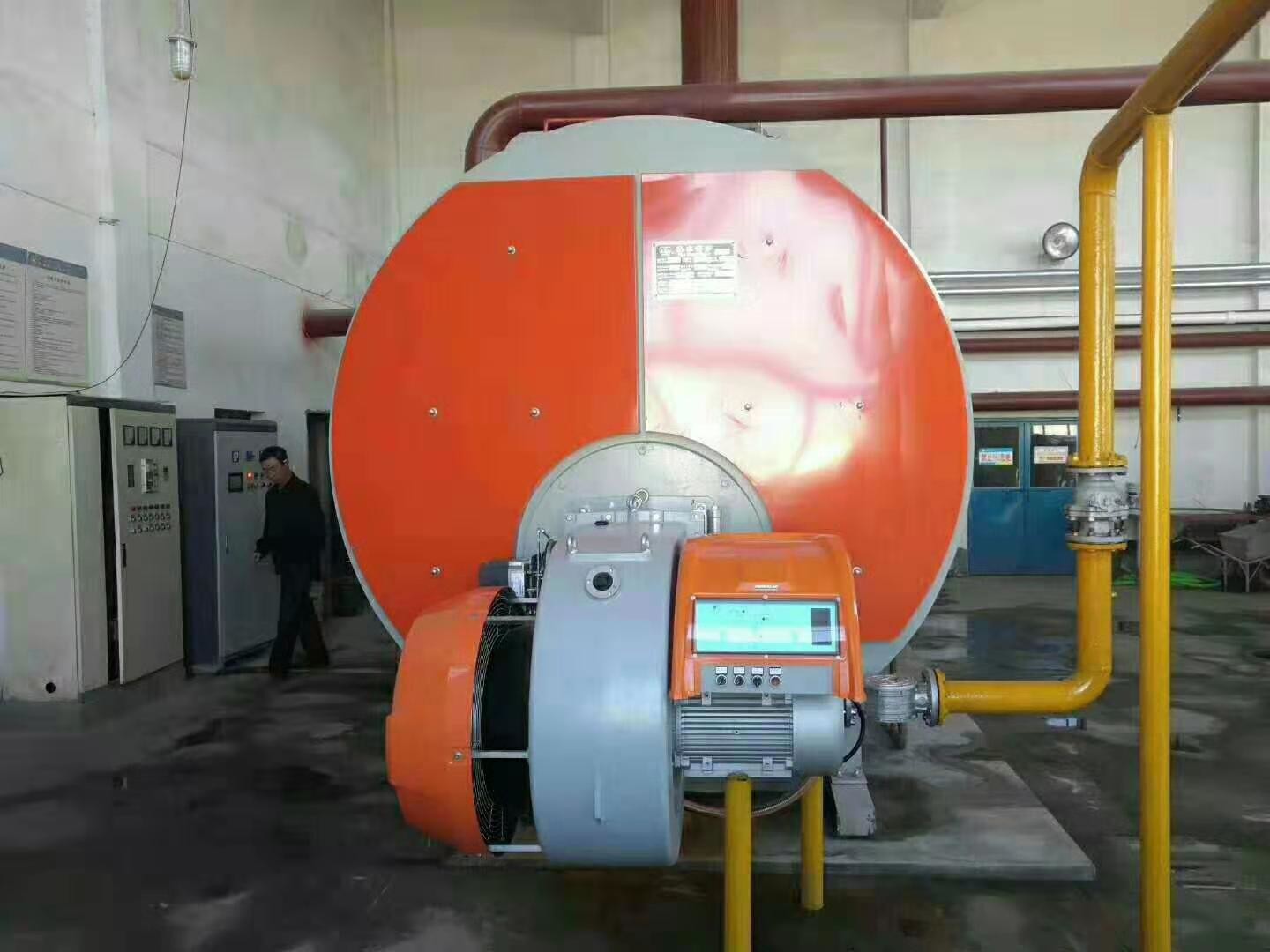

CWNS type oil gas quick loading atmospheric hot water boiler is a fully automatic horizontal internal combustion three-return oil (gas) quick loading boiler, the combustion method adopts micro positive pressure chamber combustion. The boiler body is composed of a drum, a corrugated furnace and two return threaded smoke pipes. After the fuel is mixed with air in the burner, it is ignited by the electronic ignition rod, and is sprayed into the corrugated furnace furnace to burn. The high-temperature flue gas enters the two-stage convective tube bundle from the furnace furnace through the ember chamber, and finally exhausts to the atmosphere through the chimney from the rear smoke box.
Product advantage:
1, boiler products
Horizontal internal combustion three return full wet back design, 100% corrugated furnace, with good thermal scalability, water cooled recombustion chamber, recombustion chamber and the rear tubesheet edge butt, the lowest stress, more reliable quality.
2, large diameter corrugated furnace gall
The combustion chamber of the boiler is composed of a large diameter full corrugated furnace with large combustion space, complete fuel combustion, effective heat absorption and thermal expansion, and large radiation heating surface.
3. Sufficient heat
Boiler heating area is more than 25 square meters/ton design configuration, fully absorb effective heat, low smoke exhaust temperature, small heat loss, to ensure sufficient output, high efficiency.
Technical parameter:
| Item | WNS0.7 | WNS1.4 | WNS2.1 | WNS2.8 | WNS3.5 | WNS4.2 | WNS5.6 | WNS7 | WNS10.5 | WNS14 |
| Rated power (MW) | 0.7 | 1.4 | 2.1 | 2.8 | 3.5 | 4.2 | 5.6 | 7 | 10.5 | 14 |
| Rated working pressure(Mpa) | Atmospheric pressure/0.7/1.0 |
| Rated effluent temperature(℃) | 85/95/117 |
| Rated return water temperature(℃) | 60/70/70 |
| Thermal efficiency(%) | 98 |
| Thermal efficiency (㎡) | 35 | 53 | 77 | 107 | 127 | 198 | 212 | 272 | 358 | 448 |
| Energy saver heating area (㎡) | 11 | 12 | 15 | 22 | 30 | 35 | 45 | 60 | 70 | 80 |
| Suitable fuel | Natural gas/LPG/LNG/City gas/Biogas/ Diesel /Heavy Oil |
| Fuel consum ption | Diesel(Kg/h) | 61 | 121 | 182 | 241.5 | 302 | 362 | 485 | 612 | 905.6 | 1207.5 |
| Natural gas(Nm³/h) | 70 | 140.5 | 210.6 | 283 | 351.5 | 422.4 | 563 | 705.5 | 1055 | 1408 |
| Weight(t) | 7.1 | 8.2 | 9.9 | 12.7 | 14.2 | 17.5 | 21.3 | 22 | 35.5 | 45 |
| Maximum transport size of boiler( mm) | 3400× 1700×2100 | 4300×1900×2300 | 3900×2100×2500 | 4700×2200×2600 | 5200×2300×2700 | 5660×2400×2800 | 5900×2500×3000 | 6600×2700×3200 | 7500×3400×3600 | 7800×3700×4200 |
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
