Product introduction:
ZKS series vacuum boiler due to the formation of special design structure, can be used in one machine, while providing multiple channels and different temperature differences of hot water, to meet the user's central air conditioning, heating, health hot water, senior swimming pool, hotels and other hot water supply needs, but also for all kinds of industrial and mining enterprises to provide process water. Due to the good insulation effect, the imported burner is used, which is suitable for areas with an altitude of less than 3000 meters. For being heated is through negative pressure steam, which indirectly receives the heat of the burner. The interior of the furnace is vacuum, completely isolated from atmospheric pressure, and the air pump configured in the unit constantly exhauzes the atmosphere in the unit, without internal corrosion.
Product advantages:
1 Vacuum boiler does not exist expansion, explosion, rupture risk, safe and reliable.
2. A multi-purpose machine, a boiler can provide heating water, domestic hot water, swimming pool heating and so on.
3. The design life is more than 20 years, can be placed in the basement and the roof, the relevant state departments are not limited.
4. High efficiency and low cost
5. No scaling, corrosion and other phenomena.
6. It is smaller than ordinary boilers. Can be modular parallel setting, more efficient and reasonable operation of the boiler. Only one of them can be operated when the rated heat is not required.
7. High degree of automation, automatic control connection, unmanned management.
Vacuum boiler heat conversion schematic:
Oil, natural gas, coal gas, - - > combustion heat (electric conversion) - > heat medium water - > after boiling steam condensation heat transfer of -- -- -- -- > > heat exchanger heat transfer > water
Technical parameter:
Model
item | ZKS0.35 | ZKS0.5 | ZKS0.7 | ZKS1.05 | ZKS1.4 | ZKS1.75 | ZKS2.1 | ZKS2.8 | ZKS3.5 | ZKS4.2 |
| -85/60-Q | |
| Rated power | (MW) | 0.35 | 0.5 | 0.7 | 1.05 | 1.4 | 1.75 | 2.1 | 2.8 | 3.5 | 4.2 |
| Rated working pressure | (Mpa) | -0.02 |
| Heat exchanger | (Mpa) | ≤2.5 |
| Rated outlet water temperature | (℃) | 85 |
| Rated return water temperature | (℃) | 60 |
| Thermal efficiency | (%) | ≥98 |
| Water capacity | (L) | 1340 | 2000 | 2600 | 3250 | 3950 | 4920 | 5950 | 7430 | 8520 | 9560 |
| Water inlet and outlet | (DN) | 50 | 65 | 80 | 100 | 125 | 150 | 200 |
| Pollution discharge | (DN) | 40 | 50 |
Fuel consumption | Light oil (Kg/h) | 32.4 | 43.2 | 64.7 | 97.1 | 129.5 | 162 | 194.2 | 259 | 324 | 389 |
Natural (Nm³/h) | 36.8 | 49 | 73.5 | 110.3 | 147 | 183.6 | 220.6 | 294.1 | 368 | 441.2 |
City gas (Nm³/h) | 83.4 | 111.1 | 166.7 | 250 | 333.3 | 416.7 | 500 | 666.7 | 833 | 1000 |
Outline dimension | Length (mm) | 3050 | 3300 | 3550 | 4100 | 4200 | 4500 | 4600 | 5100 | 5500 | 6100 |
Width (mm) | 1400 | 1400 | 1500 | 1600 | 1700 | 1800 | 2000 | 2150 | 2450 | 2400 |
Height (mm) | 1800 | 1800 | 1850 | 2000 | 2100 | 2200 | 2450 | 2650 | 2820 | 2820 |
| weight | (kg) | 2400 | 2550 | 3350 | 4600 | 5950 | 6700 | 7900 | 10500 | 14000 | 15500 |

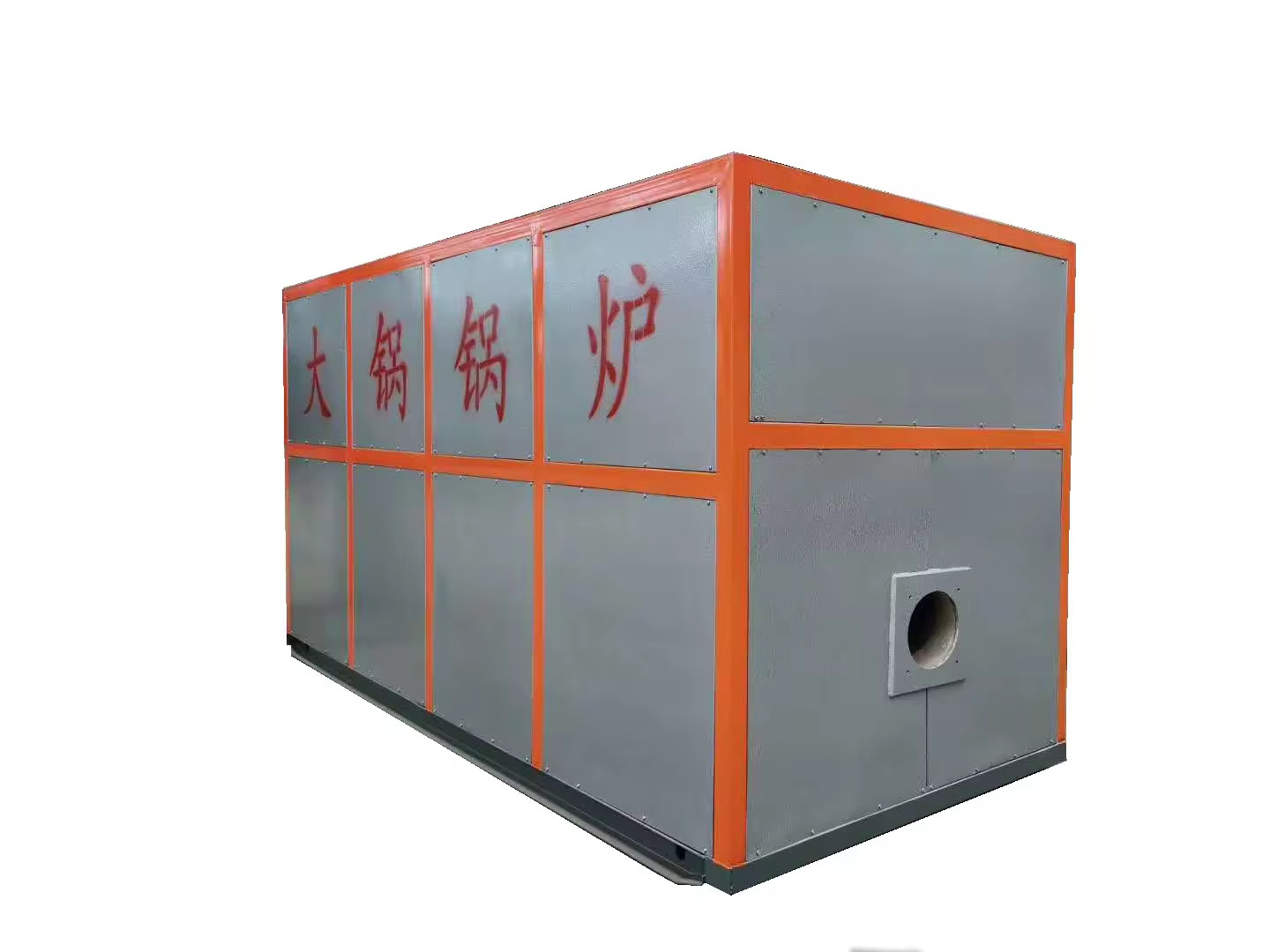

Product photo:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
|
|
