Product introduction:

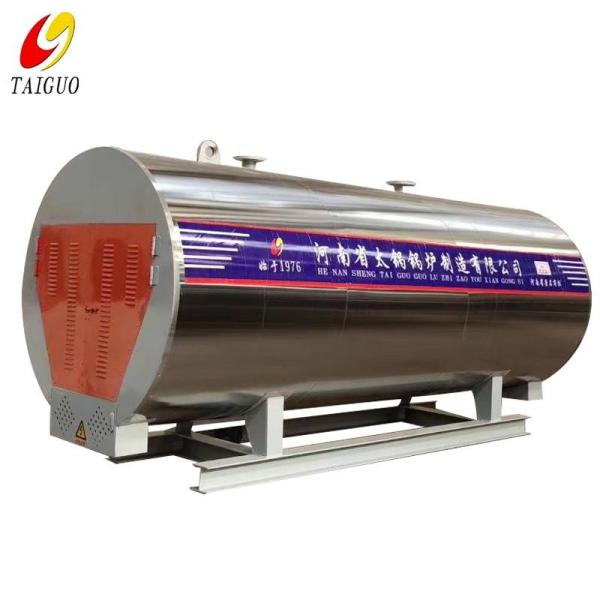

WDR Type horizontal electric heating boiler A thermal equipment that converts electrical energy into heat energy and heats water to steam under pressure (saturated steam). Electric heating boiler adopts stainless steel electric heating technology, good thermal and chemical resistance, high mechanical strength, small size flange, easy maintenance. It eliminates the need for furnaces, flues and chimneys, and also eliminates the need for a site to store fuel, greatly reducing the pollution caused by conventional coal-fired boilers. The operation adopts PLC control system, free operation button, free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.
Product advantage:
1. The controller automatically controls, calculates and tracks the pressure. It can automatically start and stop the feed pump and electric heating tube when the load changes, and can also be manually controlled.
2, with a complete number of protection functions, leakage protection, water shortage protection, grounding protection, steam overpressure protection, overcurrent protection, power protection, boiler automatic protection.
3, the boiler body is made of boiler steel plate, the longitudinal and girth welds of the furnace body are automatically welded, and X-ray inspection is carried out, the small boiler furnace body and mechatronics are easy to install and connect; The large boiler furnace body and electric control body are designed separately to prevent the electrical control part from being affected by the high temperature of the furnace body, so that the electric control device can run stably.
4, compact structure, scientific and reasonable design and advanced manufacturing technology, so that the boiler occupies a small space, convenient transportation and save the use of space.
5, no noise, no pollution, high thermal efficiency, the boiler body uses good and efficient insulation materials to do heat preservation, small heat dissipation, energy saving and consumption reduction.

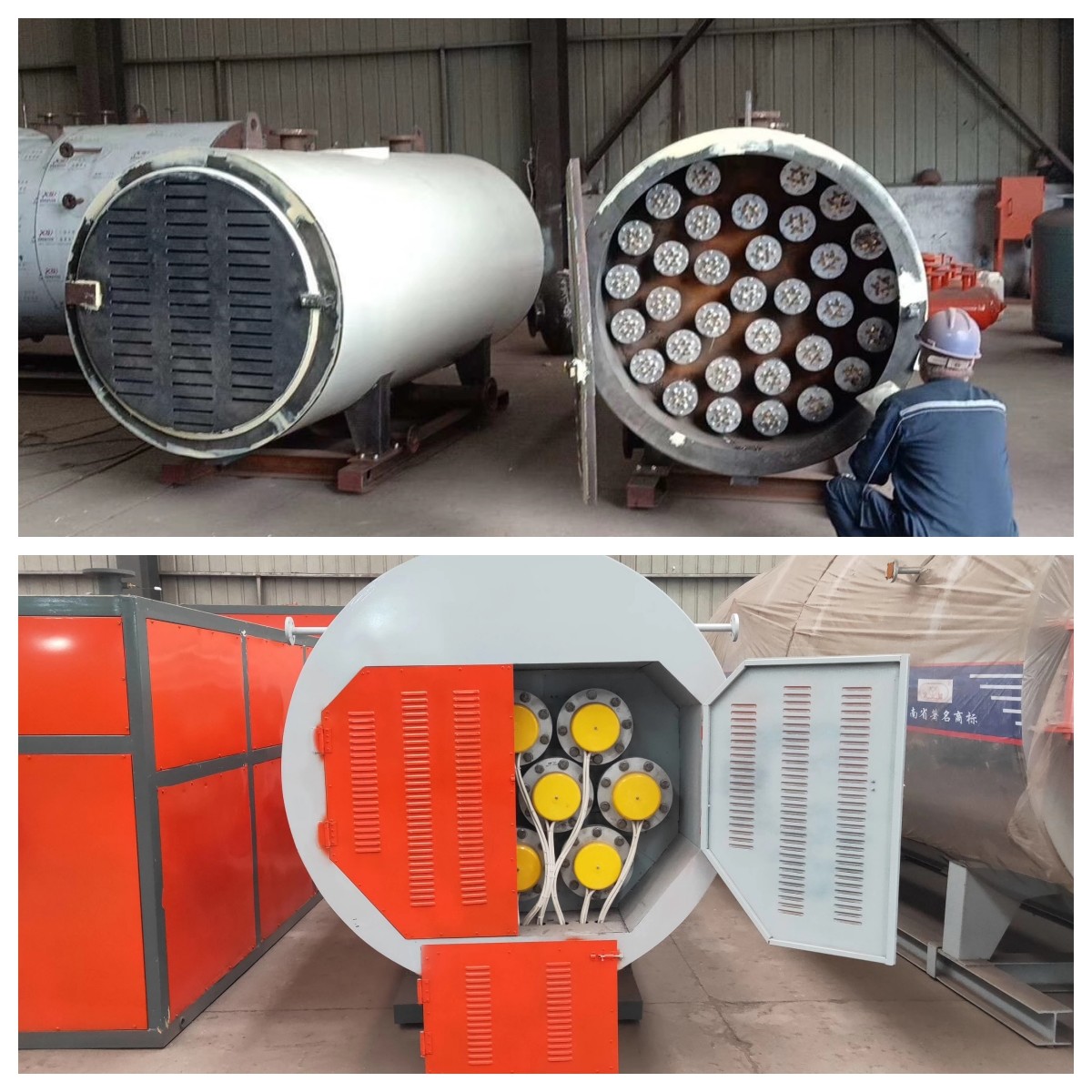

6, the electric heating tube and the furnace body using flange link, easy disassembly, easy maintenance.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
| Rated steam (t/h) | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 |
| Electric power (KW) | 375 | 750 |
1050 | 1500 | 2250 | 3000 | 4500 |
| Rated pressure (Mpa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 |
| Rated steam Temperature(℃) | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 |
| Heat Efficiency (%) |
99 |
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
| Reference weight (kg) | 1263 | 2100 | 2600 | 3100 | 5450 | 5203 | 6600 |

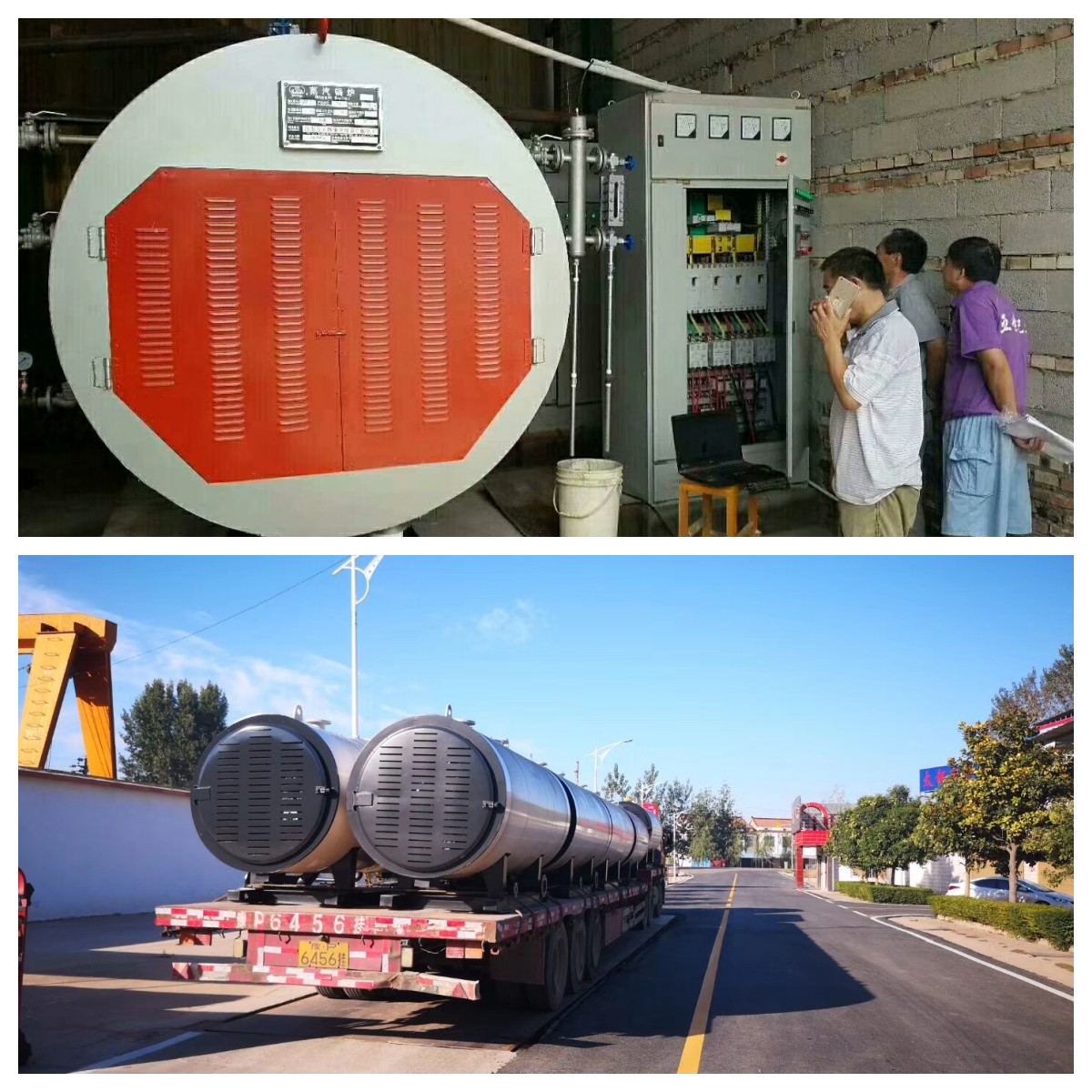

Product display:
FAQ:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
|
|
