Product introduction:
The electric heating boiler uses electric energy as energy source, no noise and no pollution. High quality heating tube, low surface heat load, high thermal efficiency. Advanced centrifugal glass wool multi-layer insulation, imported color plate packaging; Both ends of the living packaging cover, convenient installation and maintenance; Electrical components are the core part of the electric boiler, the imported electrical components used in this product have won the "China famous trademark", "China Famous brand" products, the national "3C compulsory certification" products; Advanced configuration creates high-end products, and high-end products meet safety and rest assured.
Product characteristics:
1, the use of advanced electric heating tube, each group of electric heating elements using concentrated beam type flange connection, independent setting, with simple structure, high mechanical strength, safe and reliable, easy to replace, its surface load is low, long service life.
2, the boiler starts and stops fast, the operating load adjustment range is large, the adjustment speed is fast, and the operation is simple.
3. The heating element automatically adjusts the number of input groups of the heating tube according to the change of temperature difference and load, and can automatically convert the input order, not only saving energy, but also balancing the running time of each group of heating tubes, so as to uniform the life of the heating tube.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
| Rated steam (t/h) | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 |
| Electric power (KW) | 375 | 750 | 1050 | 1500 | 2250 | 3000 | 4500 |
| Rated pressure (Mpa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 |
| Rated steam Temperature(℃) | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 |
| Heat Efficiency (%) | 99 |
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
| Reference weight (kg) | 1263 | 2100 | 2600 | 3100 | 5450 | 5203 | 6600 |

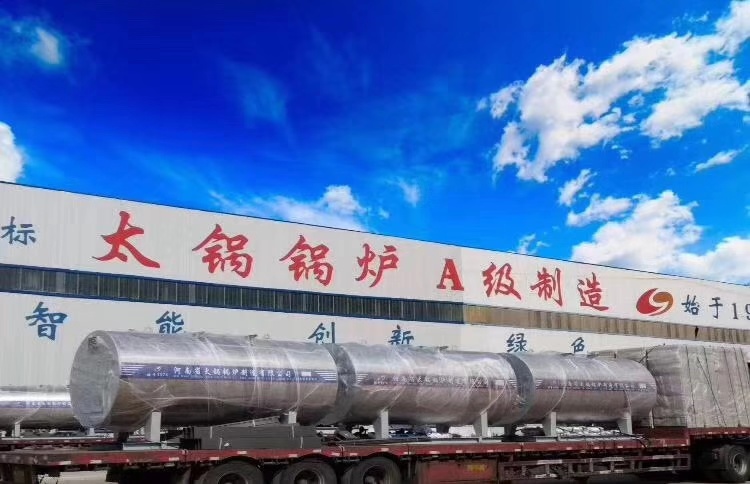

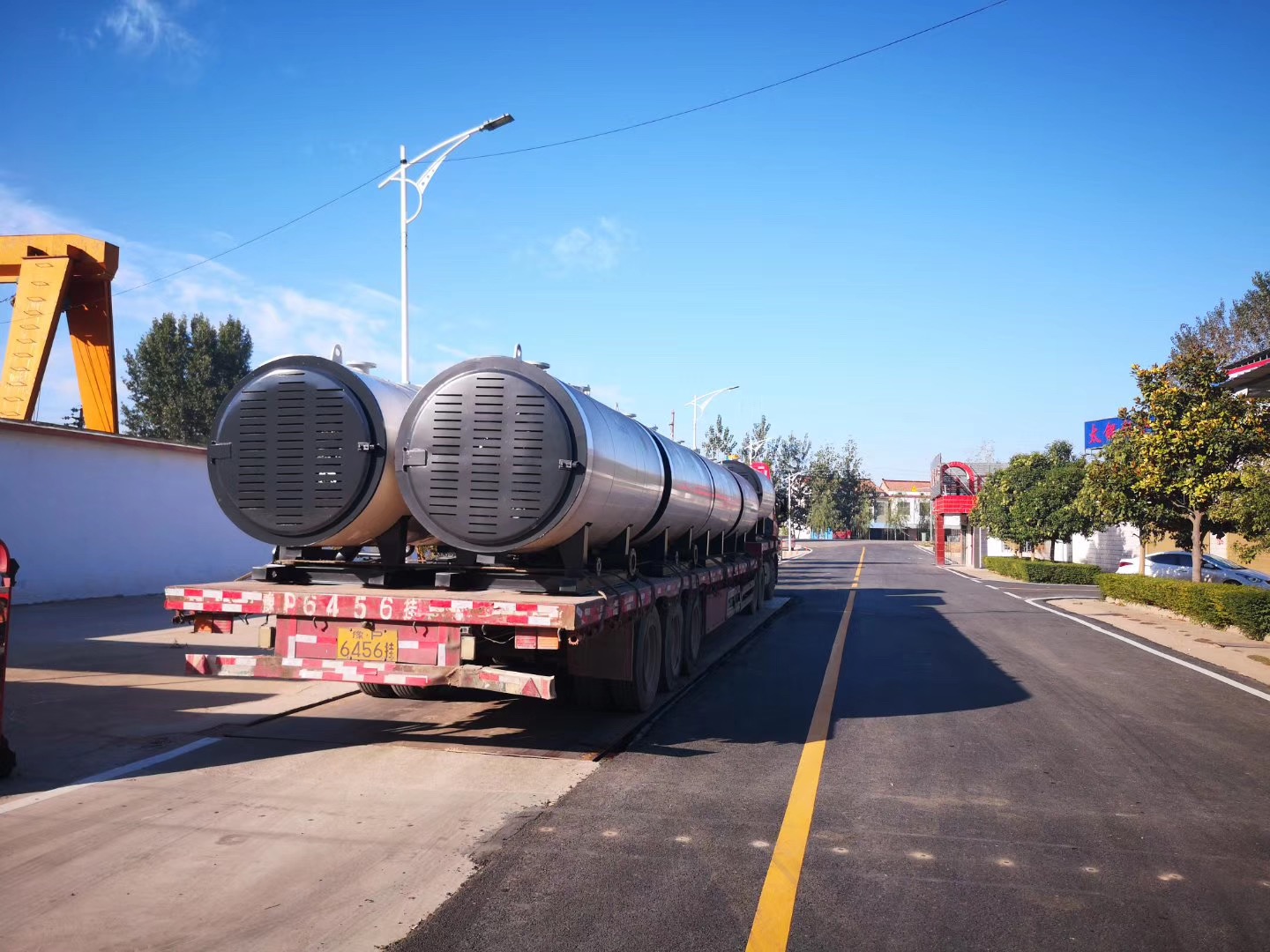

Transportation site:
Company introduction:
Henan Taipan Boiler Manufacturing Co., LTD. (formerly "Henan Taikang Boiler Factory") was founded in 1976, is the birthplace of Henan Taikang boiler and leading enterprises. The company has strong scientific and technological force and advanced machinery and equipment, product quality is excellent; And has the production, installation and undertake the corresponding engineering technology design of rich experience. It has the national A-class boiler manufacturing license and the national 1-class boiler installation, transformation and maintenance license, and is A "contract-honoring and credit-keeping" enterprise in Henan Province. Factory area of more than 80,000 square meters, construction area of 18,000 square meters, the main boiler production equipment 350 sets (sets), advanced detection methods and perfect, with the annual production capacity of 12,000 tons of boiler. Technology first, market-based, and strive to develop and produce more reasonable and satisfactory products for the majority of users, is our unswerving pursuit. The main products of the company are automatic oil (gas) boilers and circulating fluidized bed boilers. Superior product quality and performance, leading the domestic level, won the Henan Province famous trademark and national, ministry, provincial "high quality, energy saving products" gold medal.
certificate:
