Product introduction:
Electric heating boiler series products belong to high-power steam boiler and hot water boiler, using the furnace body electric control cabinet separation, to avoid the electrical components heat aging and affect the service life; Heater choose ceramic electric heating tube, low surface load, long service life; With a single small flange connection, easy maintenance; Its normal service life is about 20,000 hours, the thermal efficiency is nearly 99%, the operation is quiet, clean, in line with the requirements of environmental protection, will not emit NOx (nitrogen oxides) to the atmosphere; The operation part adopts PLC control system, all free operation button, all free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.
Product characteristics:
1. High thermal efficiency
With large steam space, high mechanical strength, long service life.
2.Automatic control
The boiler uses SIMENS PLC electric control cabinet, displays in English. It shows boiler operation condition dynamically, and operator can set up parameters about temperature, pressure, time, etc.
3.Quality and safety
All electrical components have passed CE and CCC certification to ensure the safety and longevity of the boiler.
Product parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
| Rated steam (t/h) | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 |
| Electric power (KW) | 375 | 750 | 1050 | 1500 | 2250 | 3000 | 4500 |
| Rated pressure (Mpa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 |
| Rated steam Temperature(℃) | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 |
| Heat Efficiency (%) | 99 |
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
| Reference weight (kg) | 1263 | 2100 | 2600 | 3100 | 5450 | 5203 | 6600 |

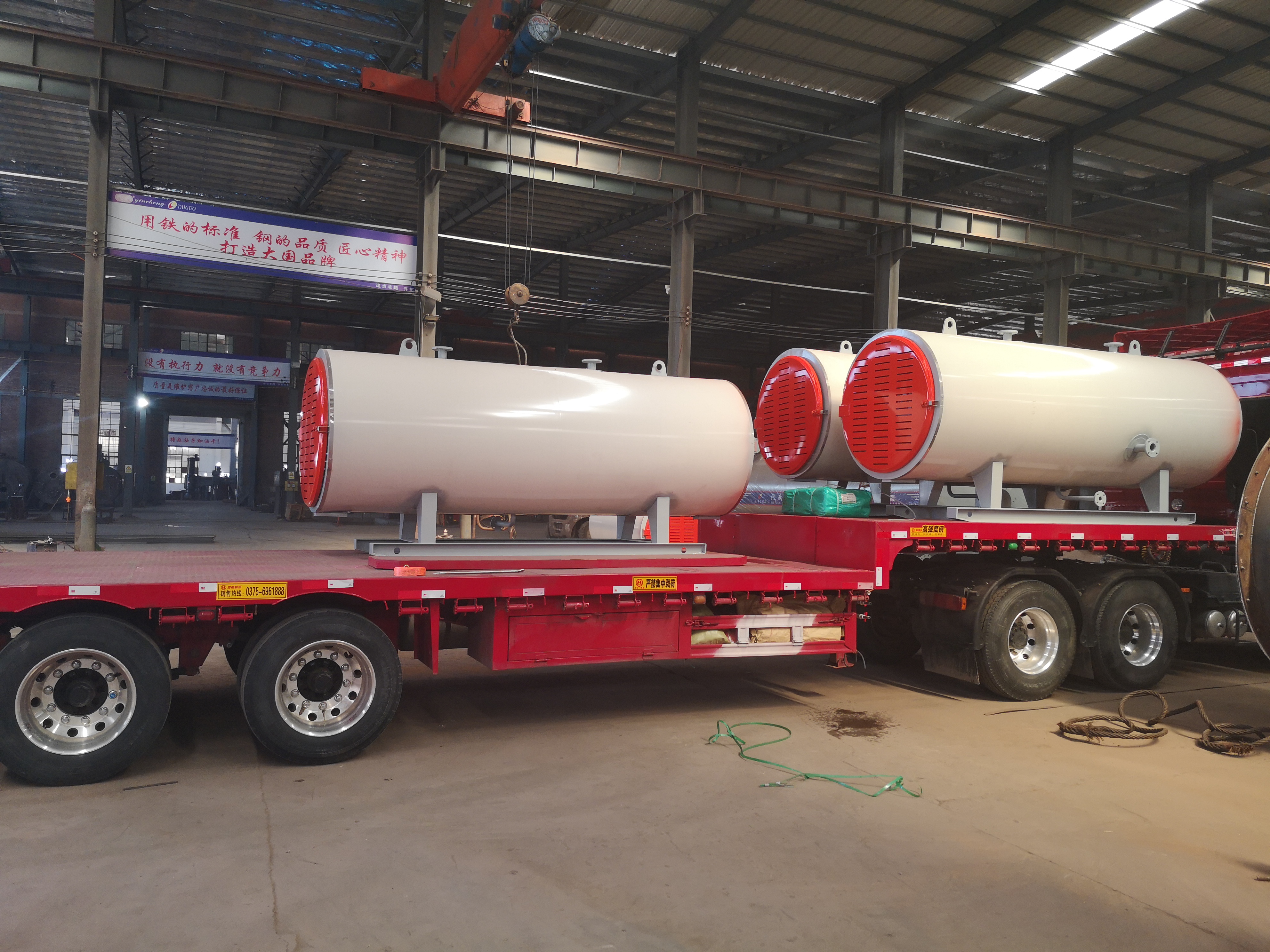

Delivery site:
Company introduction:
Henan Taipan Boiler Manufacturing Co., LTD. (formerly "Henan Taikang Boiler Factory") was founded in 1976, is the birthplace of Henan Taikang boiler and leading enterprises. The company has strong scientific and technological force and advanced machinery and equipment, product quality is excellent; And has the production, installation and undertake the corresponding engineering technology design of rich experience. It has the national A-class boiler manufacturing license and the national 1-class boiler installation, transformation and maintenance license, and is A "contract-honoring and credit-keeping" enterprise in Henan Province. Factory area of more than 80,000 square meters, construction area of 18,000 square meters, the main boiler production equipment 350 sets (sets), advanced detection methods and perfect, with the annual production capacity of 12,000 tons of boiler.
certificate:
