Product introduction:

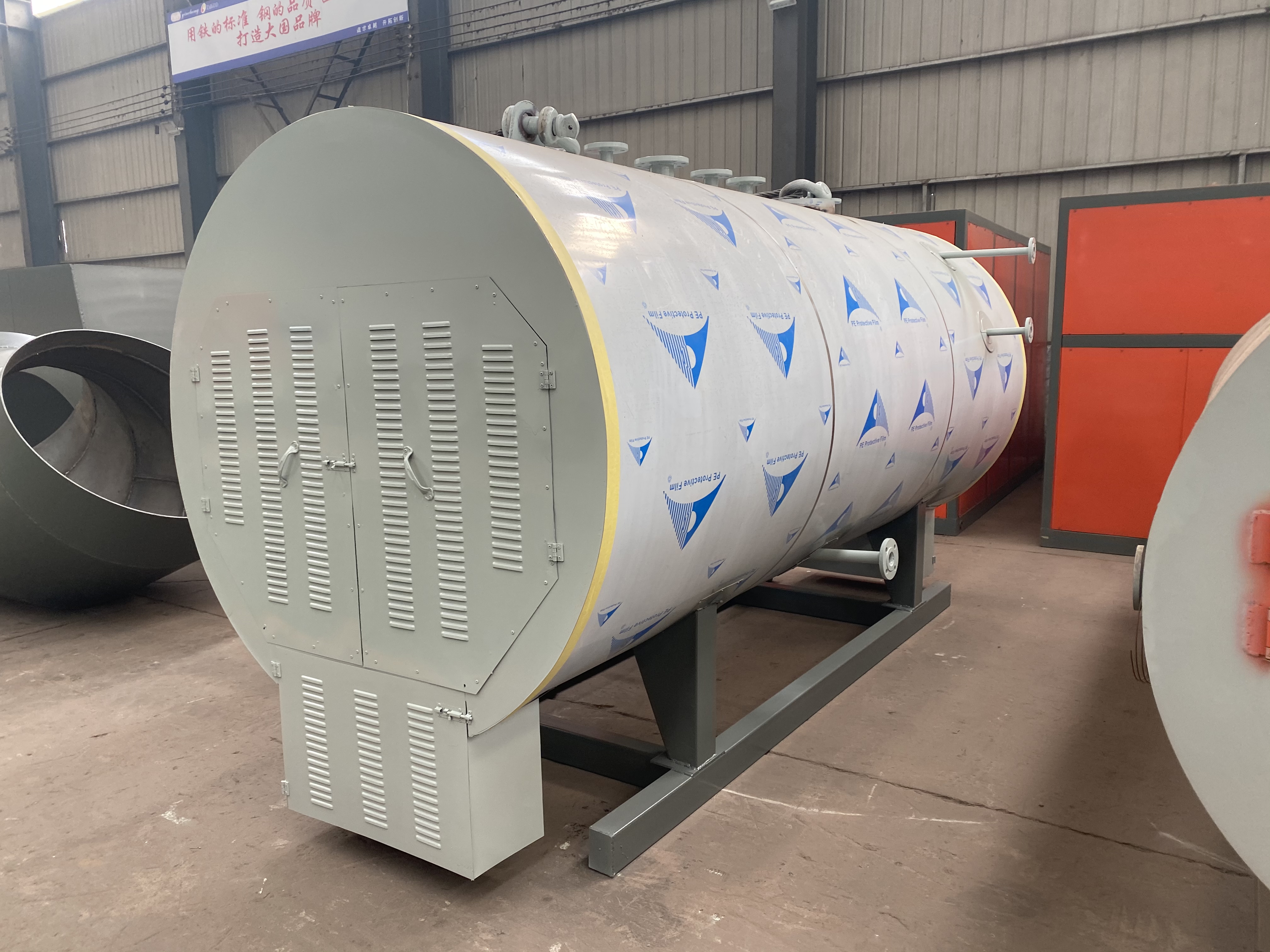

Electric heating boiler series products belong to high-power steam boiler and hot water boiler, using the furnace body electric control cabinet separation, to avoid the electrical components heat aging and affect the service life; Heater choose ceramic electric heating tube, low surface load, long service life; With a single small flange connection, easy maintenance; Its normal service life is about 20,000 hours, the thermal efficiency is nearly 99%, the operation is quiet, clean, in line with the requirements of environmental protection, will not emit NOx (nitrogen oxides) to the atmosphere; The operation part adopts PLC control system, all free operation button, all free indicator light, touch screen panel, Chinese and English display, man-machine dialogue, operation authorization, real-time information, automatic page turning.
Product advantage:
1, the heating element can be manually put in or stopped, convenient for users to flexibly adjust the boiler heat.
2, the use of advanced computer boiler controller PLC microcomputer programmable control and display screen, through the man-machine interface to set its working pressure, working time and other functions, can display equipment status operating parameters and fault alarm; It has the advantages of reliable performance, high degree of automation and easy to use.
Technical parameter:
| Model | WDR0.5 | WDR1 | WDR1.5 | WDR2 | WDR3 | WDR4 | WDR6 |
| Rated steam (t/h) | 0.5 | 1 | 1.5 | 2 | 3 | 4 | 6 |
| Electric power (KW) | 375 | 750 | 1050 | 1500 | 2250 | 3000 | 4500 |
| Rated pressure (Mpa) | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 | 0.7/1.0/1.25 |
| Rated steam Temperature(℃) | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 | 170/184/194 |
| Heat Efficiency (%) | 99 |
| Size(mm) | 2666*1536*1566 | 3000*1400*1650 | 3500*1600*1750 | 4000*1700*1950 | 4312*2124*2242 | 4380*2400*2662 | 4908*2671*3390 |
| Reference weight (kg) | 1263 | 2100 | 2600 | 3100 | 5450 | 5203 | 6600 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
