Commercial Steam Boiler Coal Semi-Automatic Labor Saving Efficiency
Product introduction:
DZH type hand burning coal burning biomass boiler is a mature, advanced product of our company, an energy-saving and environmentally efficient product, can burn formed biomass fuel, but also pure coal or mixed coal and formed biomass fuel. Compared with traditional coal boilers, it not only has a wide range of fuel adaptability, but also has the advantages of safe and reliable operation, low failure rate, simple operation, perfect protection function and high thermal efficiency, which is the best choice for all merchants.
Product advantage:
1. The boiler furnace adopts the form of curved water-cooled wall tube and drum and left and right collecting box, which can expand freely upward.
2. The convection tube in the cylinder adopts a rolled threaded smoke pipe to improve the rotation of the working medium and increase the heat transfer.
3. Using high thermal resistance material as insulation layer, good thermal insulation performance.
Technical parameter:
| Mode l item | DZH0.5 | DZH1 | DZH2 | DZH3 | DZH4 |
| Rated evaporation capacity(t/h) | 0.5 | 1 | 2 | 3 | 4 |
| Rated pressure( Mpa ) | 0 .7/ 1 .0 | 0 .7/ 1 .0/ 1 .25 | 0 .7/ 1 .0/ 1 .25 | 1 .25/ 1 .6 | 1 .25/ 1 .6 |
| Rated steam temperature(℃) | 170/ 184 | 170/ 184/ 194 | 170/ 184/194 | 194/204 | 194/204 |
| Feed water temperature (℃) | 20 | 20 | 20 | 20 | 20 |
| Heating area(m) | Body | ~21 .31 | ~33 .24 | ~59 .47 | ~72 .31 | ~92 .82 |
| Economizer | 8 .28 | 10 .56 | 27 .6 | 35 .2 | 69 .76 |
| Effective area of garte(m) | 1 .28 | 2 . 1 | 3 .36 | 4.5 | 5.2 |
| Fuel type | Biomass pellet,wood sawdust,bamboo chip,wood block,straw,Jute, palm shell |
| Fuel Consumption (kg/h) | ~150 | ~300 | ~600 | ~900 | ~1200 |
| Flue gas temperature(℃) | ~155 | ~155 | ~155 | ~155 | ~155 |
| Themal efficiency (%) | ~85 | ~85 | ~85 | ~85 | ~85 |
| Weight of biggest part for transportation(t) | 8 | 12 | 15 | 17 .6 | 22 |
| Overall dimension of biggest part for transportation(m) | 3 .3*2 .0*2 .7 | 4 . 1*2 .2*2 .9 | 4 .7*2 .4*3 .2 | 5 .2*2 .5 *3 .3 | 5 .6*2 .6 *3 .6 |

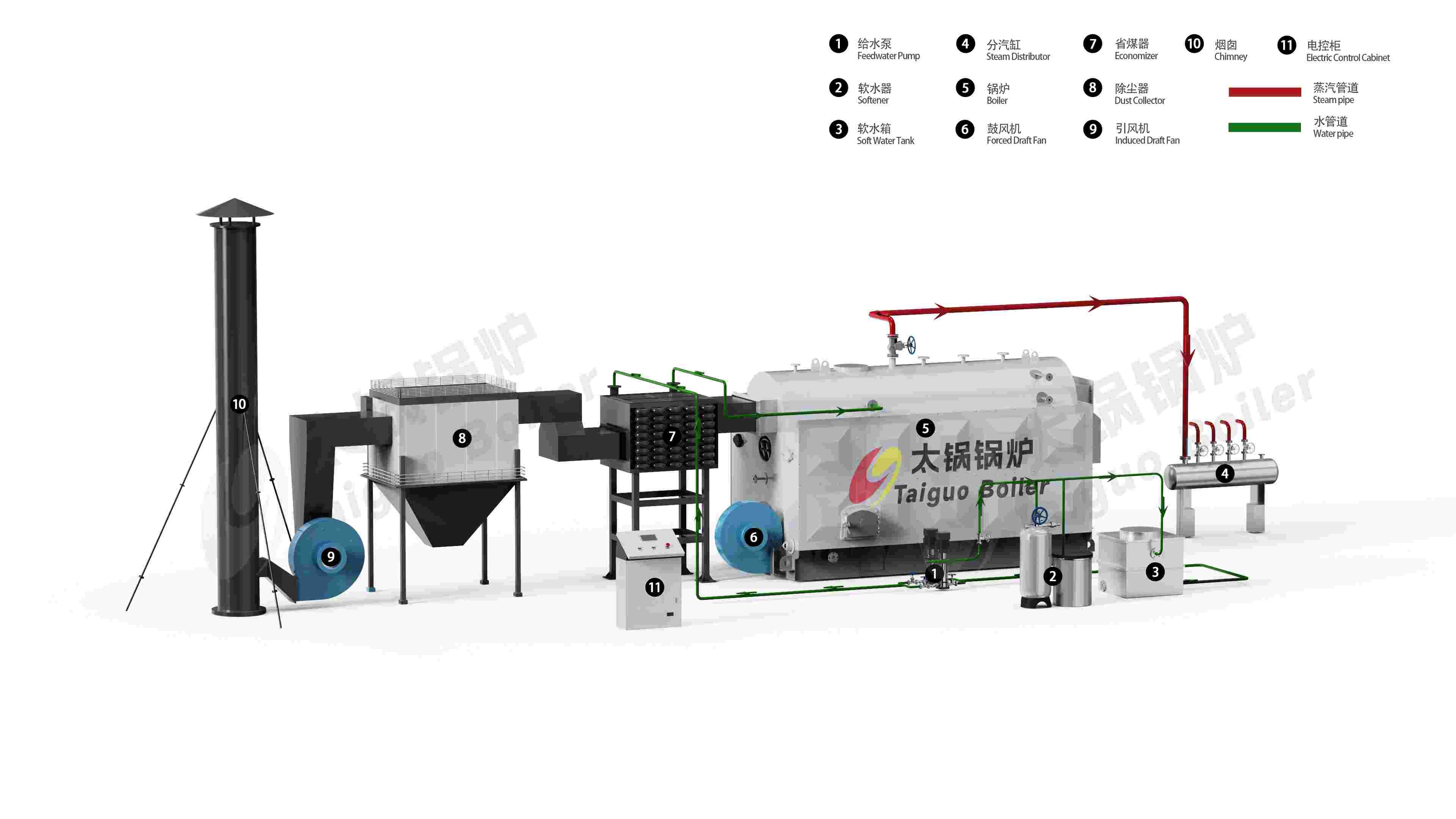

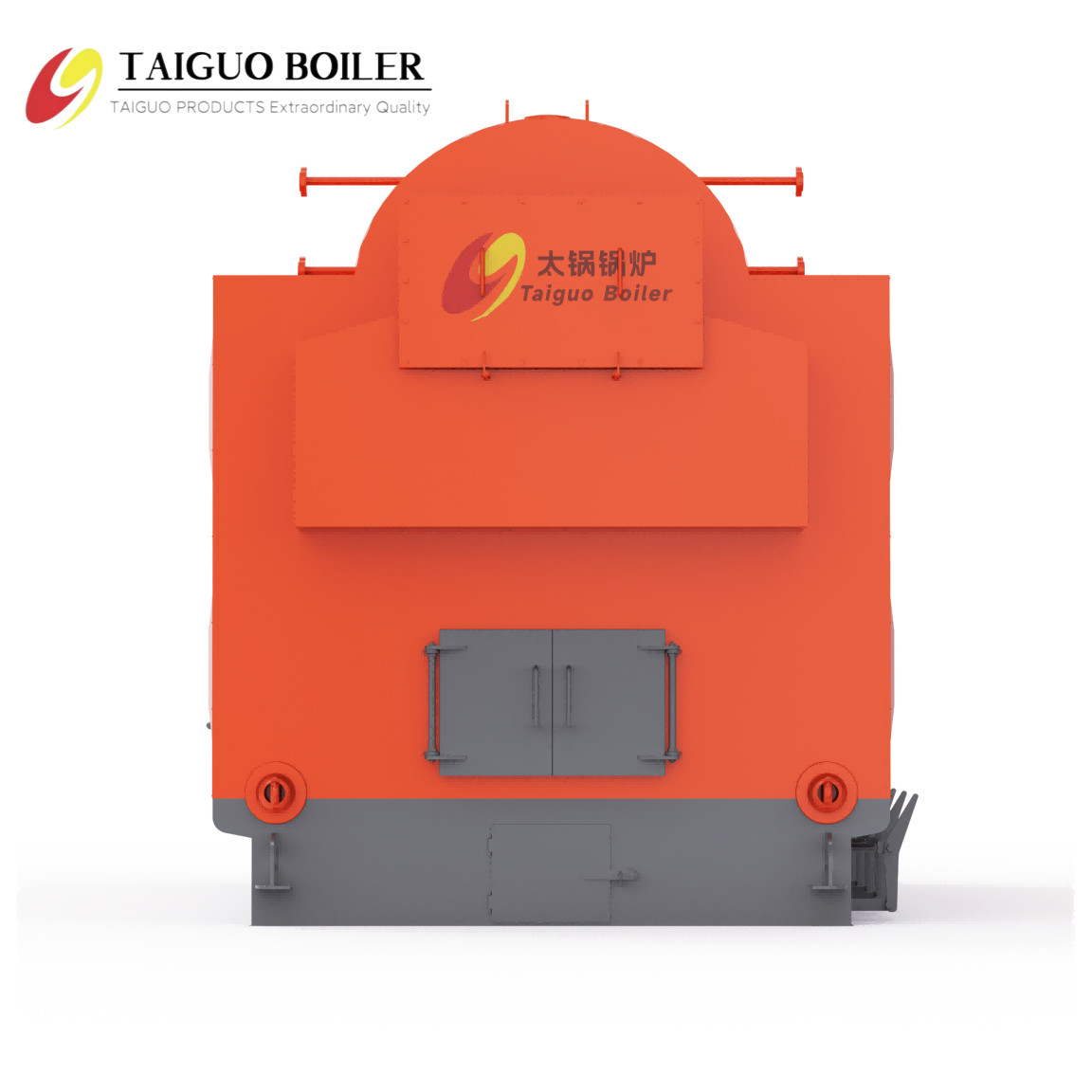

Product display:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
