Biomass Commercial Steam Boiler Has Low Operating Cost And Simple Operation
Product introduction:

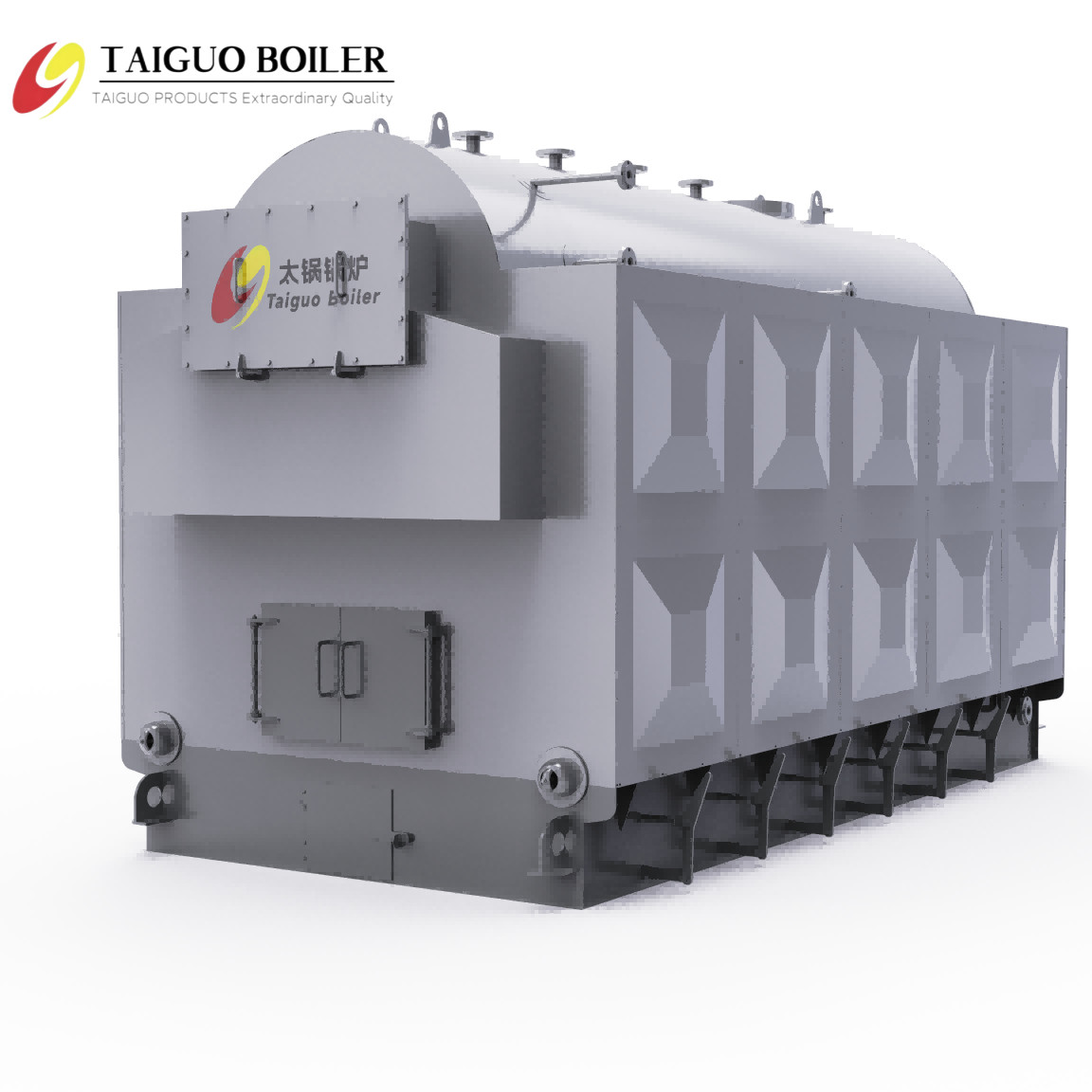

The biomass commercial steam boiler is divided into two parts, and the upper part is divided into the main pressure part of the boiler, including the drum, the header, the water wall tube, the down tube and the threaded smoke pipe in the drum. The lower part is divided into the main combustion part of the boiler, including the movable grate and the base. The upper and lower parts are connected by connection cards. The whole is manufactured in the factory and transported as a whole.
Product advantage:
1. Single cylinder vertical arrangement, compact structure, small footprint, good flame filling degree.
2. The water wall adopts the light tube water wall, which is easy to manufacture and process.
3. The outer packaging protection plate adopts the pressed protection plate, which is beautiful in appearance.
Technical parameter:
| Mode l item | DZH0.5 | DZH1 | DZH2 | DZH3 | DZH4 |
| Rated evaporation capacity(t/h) | 0.5 | 1 | 2 | 3 | 4 |
| Rated pressure( Mpa ) | 0 .7/ 1 .0 | 0 .7/ 1 .0/ 1 .25 | 0 .7/ 1 .0/ 1 .25 | 1 .25/ 1 .6 | 1 .25/ 1 .6 |
| Rated steam temperature(℃) | 170/ 184 | 170/ 184/ 194 | 170/ 184/194 | 194/204 | 194/204 |
| Feed water temperature (℃) | 20 | 20 | 20 | 20 | 20 |
| Heating area(m) | Body | ~21 .31 | ~33 .24 | ~59 .47 | ~72 .31 | ~92 .82 |
| Economizer | 8 .28 | 10 .56 | 27 .6 | 35 .2 | 69 .76 |
| Effective area of garte(m) | 1 .28 | 2 . 1 | 3 .36 | 4.5 | 5.2 |
| Fuel type | Biomass pellet,wood sawdust,bamboo chip,wood block,straw,Jute, palm shell |
| Fuel Consumption (kg/h) | ~150 | ~300 | ~600 | ~900 | ~1200 |
| Flue gas temperature(℃) | ~155 | ~155 | ~155 | ~155 | ~155 |
| Themal efficiency (%) | ~85 | ~85 | ~85 | ~85 | ~85 |
| Weight of biggest part for transportation(t) | 8 | 12 | 15 | 17 .6 | 22 |
| Overall dimension of biggest part for transportation(m) | 3 .3*2 .0*2 .7 | 4 . 1*2 .2*2 .9 | 4 .7*2 .4*3 .2 | 5 .2*2 .5 *3 .3 | 5 .6*2 .6 *3 .6 |

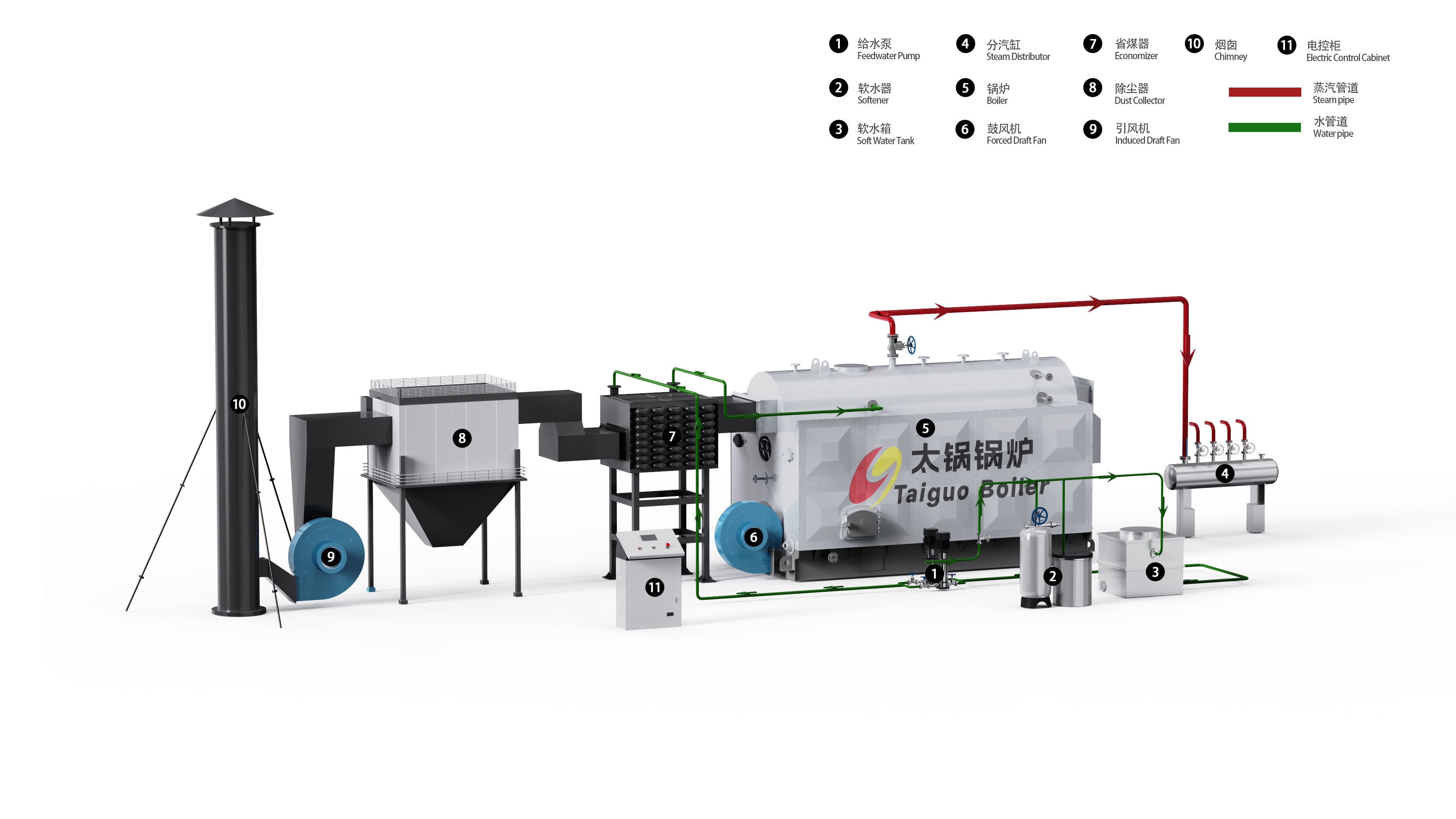

Work flow chart:
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
