Low Pressure Hot Water Industrial Hot Water Boiler Automatic Integration Design

Name: Low Pressure Hot Water Industrial Hot Water Boiler Automatic Integration Design
Brand: TAIGUO
Price: 1 USD

Low Pressure Hot Water Industrial Hot Water Boiler Automatic Integration Design Manufactures

Brand Name : TAIGUO

Model Number : ZKS

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : US $5000.00-10000.00

Payment Terms : L/C, T/T, Western Union

Supply Ability : 100set

Delivery Time : 10-30working days

Packaging Details : Bulk, packaged

Product name : Vacuum hot water boiler

Applicable industry : Schools, hotels, bathing centers, shopping malls, etc

Structural form : horizontal

Rated power : 0.35-4.2MW

Contact Now

Product introduction:

The vacuum hot water boiler adopts the leak detection device of our company's unique high-efficiency three-return wet back vacuum hot water boiler and the corresponding leak detection process, which improves the accuracy and reliability of the leak detection and ensures the stability of low evaporation point during the operation of the high-efficiency vacuum hot water boiler. The multi-parameter integrated control system is developed by using single chip microcomputer control technology, which ensures the effective operation of vacuum hot water boiler under the best condition.

peculiarity:

When the control system is in normal operation, the boiler operating condition data is recorded every other time period, including the outlet temperature, the heat medium water temperature, the cumulative operating time of the burner and other loads, and the operating status of the equipment. When a fault occurs, the system records the fault information in time.
The system has the function of power failure memory and cutting off the output device. When the power is restored, the intelligent controller will automatically be in the off-duty state to ensure the safe operation of the system.

Technical parameter:

Model item		ZKS0.35	ZKS0.5	ZKS0.7	ZKS1.05	ZKS1.4	ZKS1.75	ZKS2.1	ZKS2.8	ZKS3.5	ZKS4.2
Model item		-85/60-Q
Rated power	(MW)	0.35	0.5	0.7	1.05	1.4	1.75	2.1	2.8	3.5	4.2
Rated working pressure	(Mpa)	-0.02
Heat exchanger	(Mpa)	≤2.5
Rated outlet water temperature	(℃)	85
Rated return water temperature	(℃)	60
Thermal efficiency	(%)	≥98
Water capacity	(L)	1340	2000	2600	3250	3950	4920	5950	7430	8520	9560
Water inlet and outlet	(DN)	50	65	80	100		125		150		200
Pollution discharge	(DN)	40								50
Fuel consumption	Light oil (Kg/h)	32.4	43.2	64.7	97.1	129.5	162	194.2	259	324	389
	Natural (Nm³/h)	36.8	49	73.5	110.3	147	183.6	220.6	294.1	368	441.2
	City gas (Nm³/h)	83.4	111.1	166.7	250	333.3	416.7	500	666.7	833	1000
Outline dimension	Length (mm)	3050	3300	3550	4100	4200	4500	4600	5100	5500	6100
	Width (mm)	1400	1400	1500	1600	1700	1800	2000	2150	2450	2400
	Height (mm)	1800	1800	1850	2000	2100	2200	2450	2650	2820	2820
weight	(kg)	2400	2550	3350	4600	5950	6700	7900	10500	14000	15500

Low Pressure Hot Water Industrial Hot Water Boiler Automatic Integration Design

Product Tags:

Automatic integration industrial hot water boiler

Low pressure industrial hot water boiler

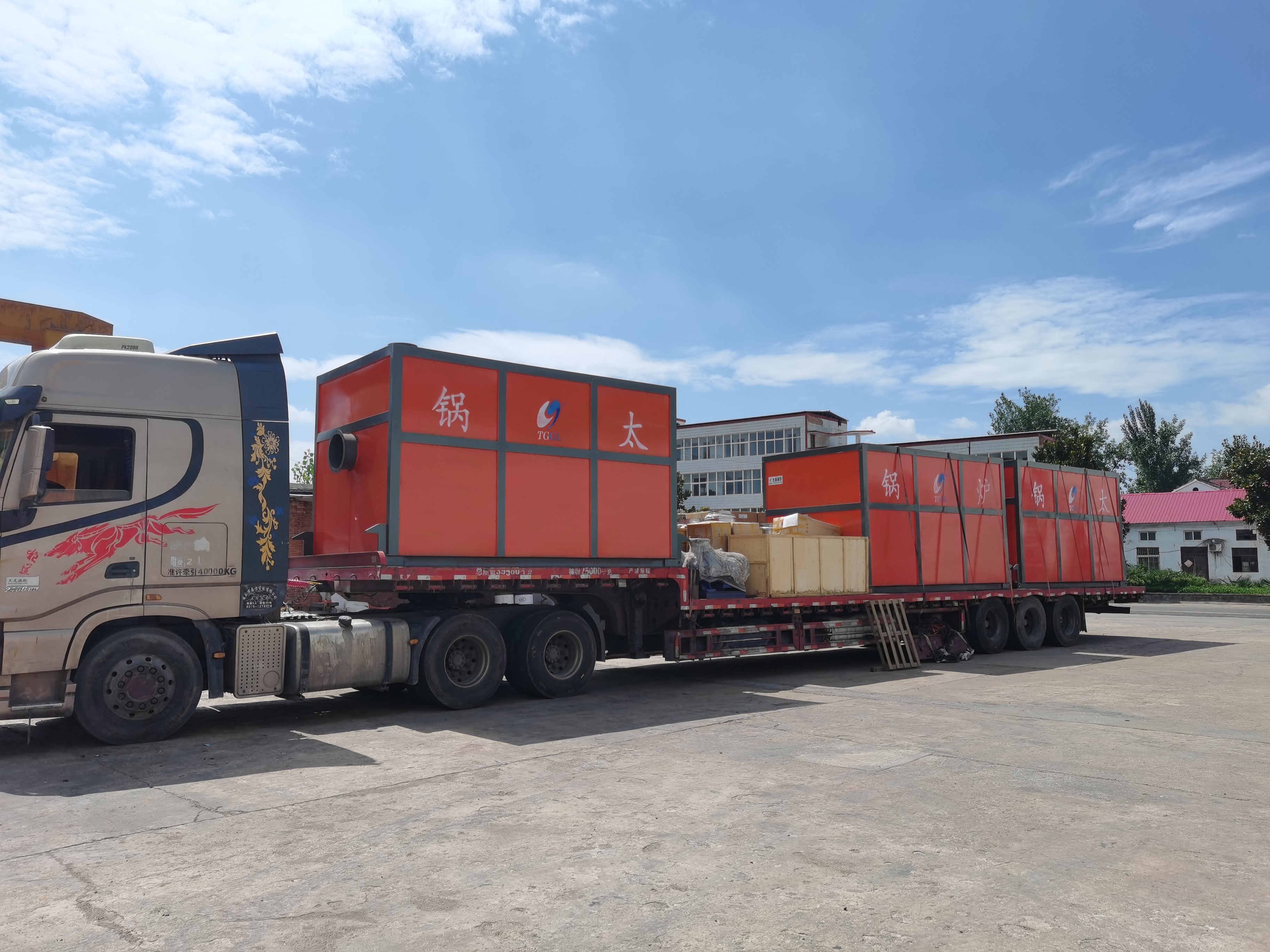

Low Pressure Hot Water Industrial Hot Water Boiler Automatic Integration Design Images
