Oil-gas Vacuum Hot Water Boiler Safe, Reliable And Energy-saving

Name: Oilgas Vacuum Hot Water Boiler Safe Reliable And Energysaving
Brand: TAIGUO
Price: 1 USD

Oil-gas Vacuum Hot Water Boiler Safe, Reliable And Energy-saving Manufactures

Brand Name : TAIGUO

Model Number : ZKS

Certification : CE、EAC、SGS

Place of Origin : Henan, China

MOQ : 1

Price : USD $5000.00-10000.00

Payment Terms : L/C, T/T, D/P, T/T

Supply Ability : 100set

Delivery Time : 30 working days

Packaging Details : Bulk, packaged

Oil-gas vacuum hot water boiler is safe, reliable and energy-saving : Vacuum hot water boiler

Structural form : horizontal

use : Heating, domestic hot water supply

Application industry : Hotels, residences, schools, bath centers, office buildings, etc.

Contact Now

Product introduction:

The oil-fired gas vacuum hot water boiler has the advantages of reasonable structure, safe and reliable operation, high efficiency and energy saving, no explosion risk, no scaling, no corrosion, long service life, multi-purpose, easy installation and maintenance, beautiful appearance and so on. The system operates safely under negative pressure, and is suitable for hotels, restaurants, schools, enterprises and institutions, residential buildings, etc. It can provide heating and domestic hot water at the same time.

Product advantage:

1. High efficiency and energy saving.
The smoke exhaust temperature is low, and the heat dissipation loss of vacuum chamber is small. The use of soft water heat transfer, high heat transfer coefficient;
2. Safe and reliable operation.
The vacuum water heater always operates under negative pressure and has multiple protection functions. With normal pressure and pressure boiler incomparable safety and reliability;
3, start fast.
Due to the negative pressure, the hot water is generated quickly, and the full load can be reached in a short time;
4, a multi-purpose machine.
Through the configuration of multi-channel heat exchanger, multi-channel heating can be realized at the same time.

Technical parameter:

Model item		ZKS0.35	ZKS0.5	ZKS0.7	ZKS1.05	ZKS1.4	ZKS1.75	ZKS2.1	ZKS2.8	ZKS3.5	ZKS4.2
Model item		-85/60-Q
Rated power	(MW)	0.35	0.5	0.7	1.05	1.4	1.75	2.1	2.8	3.5	4.2
Rated working pressure	(Mpa)	-0.02
Heat exchanger	(Mpa)	≤2.5
Rated outlet water temperature	(℃)	85
Rated return water temperature	(℃)	60
Thermal efficiency	(%)	≥98
Water capacity	(L)	1340	2000	2600	3250	3950	4920	5950	7430	8520	9560
Water inlet and outlet	(DN)	50	65	80	100		125		150		200
Pollution discharge	(DN)	40								50
Fuel consumption	Light oil (Kg/h)	32.4	43.2	64.7	97.1	129.5	162	194.2	259	324	389
	Natural (Nm³/h)	36.8	49	73.5	110.3	147	183.6	220.6	294.1	368	441.2
	City gas (Nm³/h)	83.4	111.1	166.7	250	333.3	416.7	500	666.7	833	1000
Outline dimension	Length (mm)	3050	3300	3550	4100	4200	4500	4600	5100	5500	6100
	Width (mm)	1400	1400	1500	1600	1700	1800	2000	2150	2450	2400
	Height (mm)	1800	1800	1850	2000	2100	2200	2450	2650	2820	2820
weight	(kg)	2400	2550	3350	4600	5950	6700	7900	10500	14000	15500

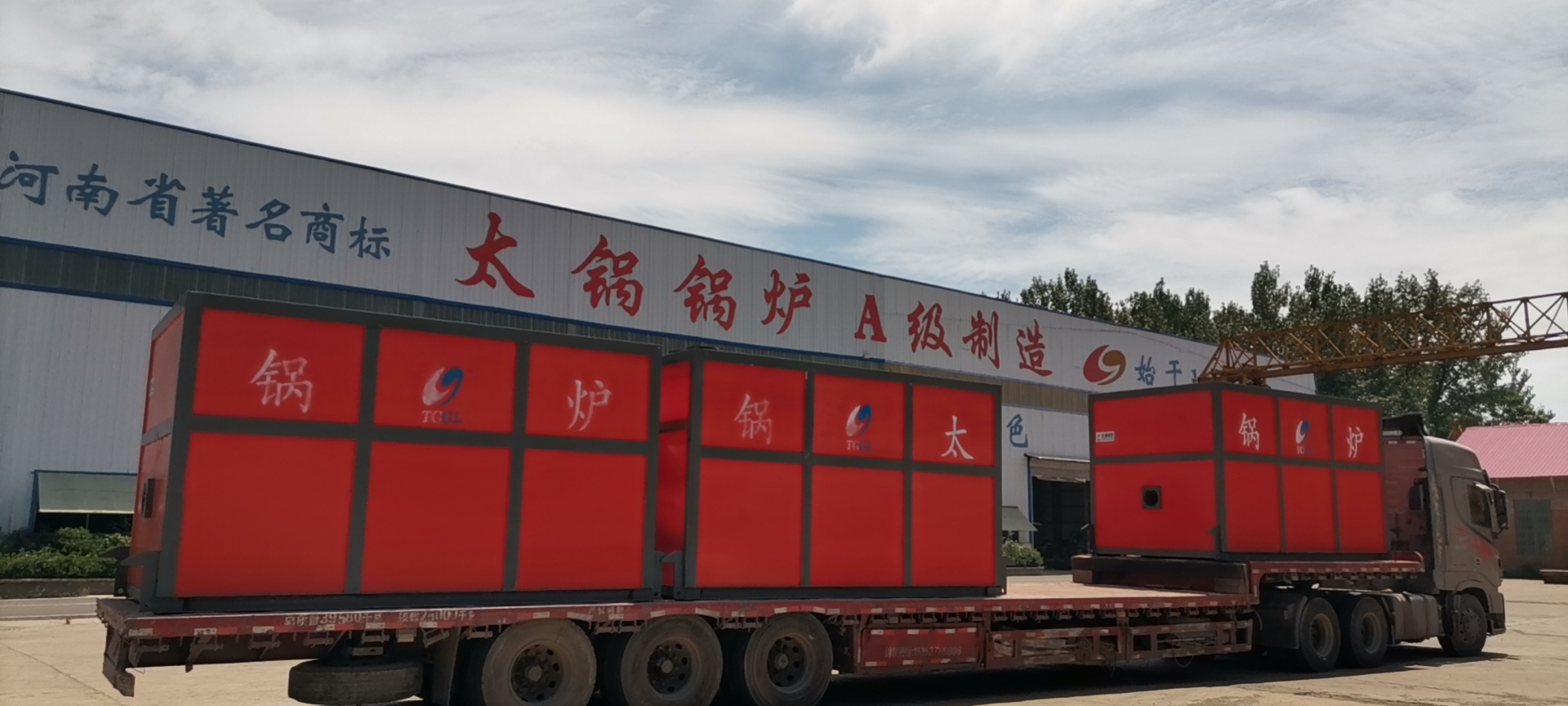

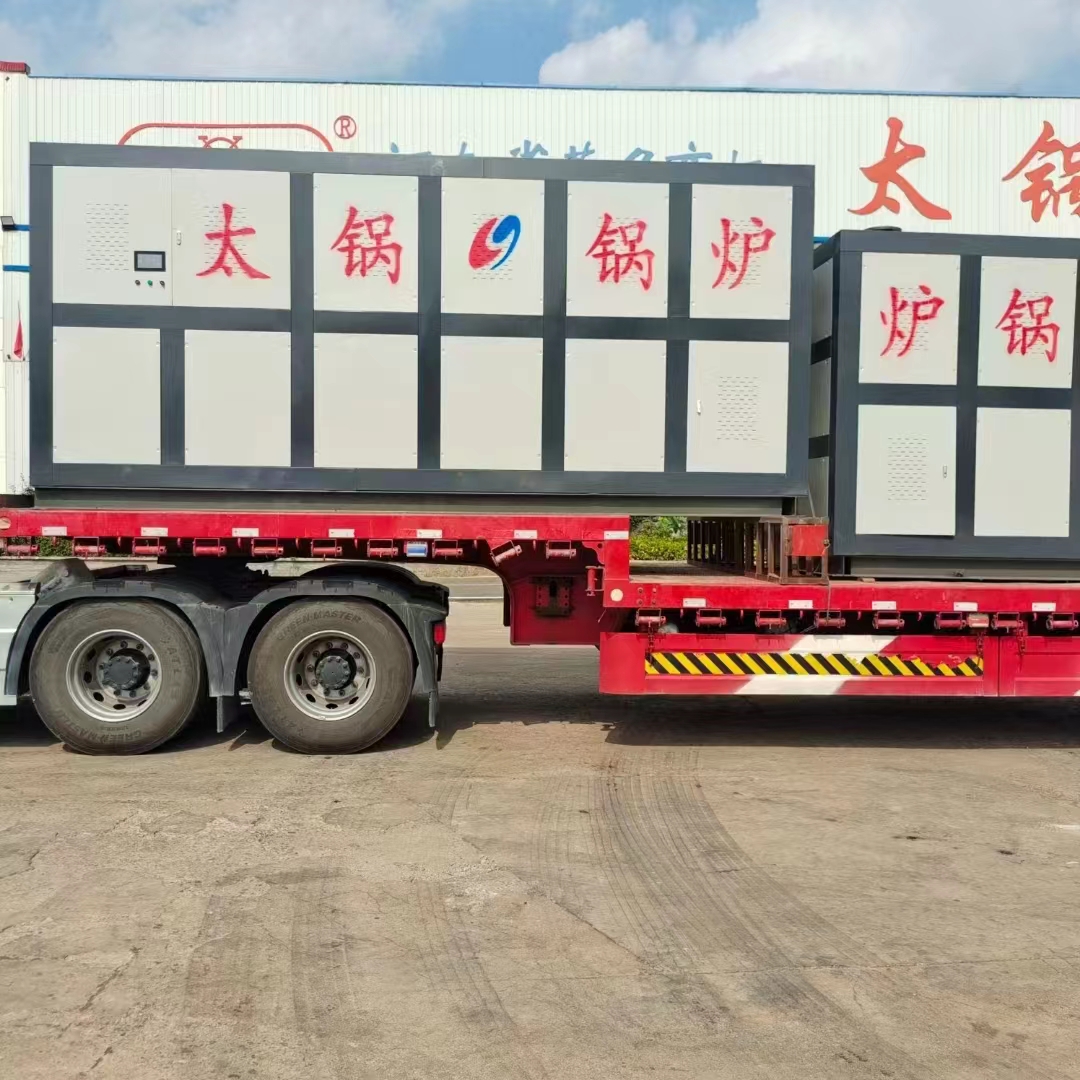

Product display:

Oil-gas Vacuum Hot Water Boiler Safe, Reliable And Energy-saving
