Product introduction:

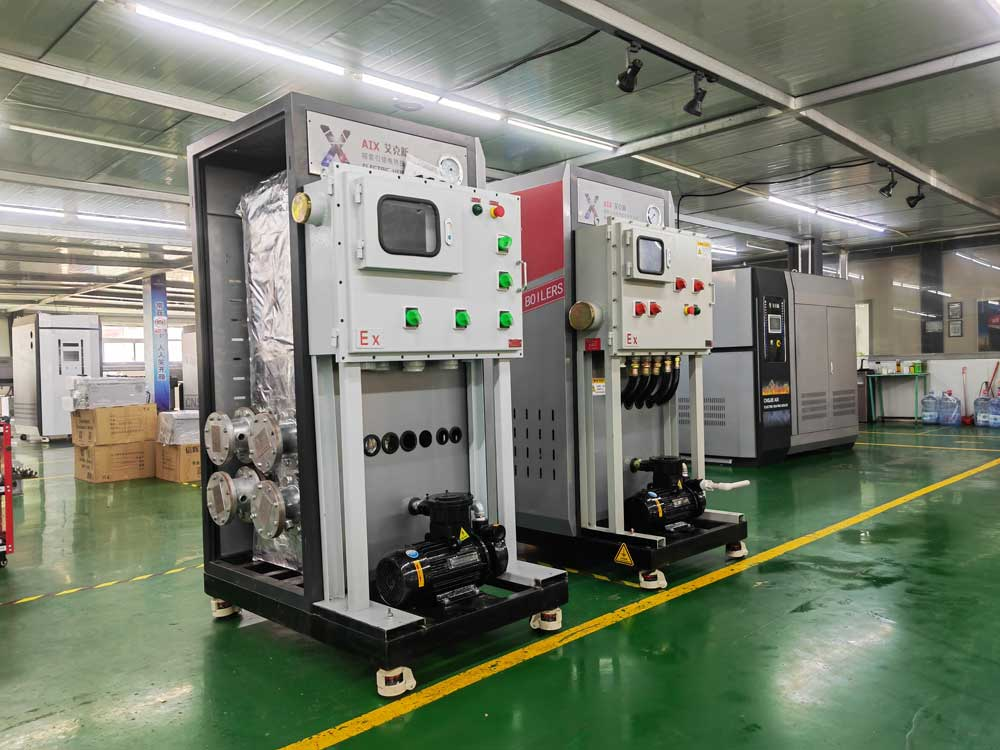

Explosion-proof steam generator is a kind of equipment that produces steam by heating resistance. It is mainly composed of electric heaters, water tanks, steam tanks and so on. The electric energy is converted into heat energy through the current flow in the heater, so that the water in the heater is heated and turned into steam, thus generating steam flow. In the process of processing and production in the oil field and chemical industry, in order to ensure the safety of the production process, relevant companies and manufacturers will choose explosion-proof steam generators for production to improve the safety of production. The equipment adopts automatic control technology, and the operation state of the equipment is controlled by one key.
Product advantage:
1.Special EX explosion-proof wire, anti-electromagnetic field interference, anti-RF interference, with good blocking performance.
2. Sealed shell junction box with explosion-proof function, suitable for a variety of strong corrosion environment.
3. The heating body is special alloy material, with overheat protection performance, stable use and long life.
4. Use explosion-proof water pump, shell pressure resistance, good motor performance.
5. When the liquid level reaches the highest and lowest position, the liquid level warning or the function of starting and stopping the electric pump can be realized.
Technical parameter:
| Model specifications | EXDR-72 | EXDR-108 | EXDR-144 | EXDR-180 | EXDR-216 | EXDR-360 | EXDR-720 | EXDR-1440 |
| Voltage frequency (ZH/A) | 380/50 |
| Electric heating efficiency(％) | ≥98 |
| Class of protection(IP) | 50 |
| work pressure(MPa) | 0.01-1.0 |
| Evaporation capacity (Kg／h) | 100 | 150 | 200 | 250 | 300 | 500 | 1000 | 2000 |
| Air outlet/sewage outlet (DN) | 20/40 | 25/40 | 40/40 | 50/40 | 65/40 |
| Auxiliary control function | Automatic + remote |
| Product weight(Kg) | 162 | 243 | 365.5 | 410 | 480 | 558 | 1080 | 2119 |
| Apparent dimension(m) | 0.8*1.0*1.7 | 0.8*1.0*1.7 | 1.0*1.4*1.7 | 1.0*1.4*1.7 | 1.0*1.6*1.7 | 1.4*1.8*1.7 | 1.4*3.5*1.7 | 1.4*5.0*1.7 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
