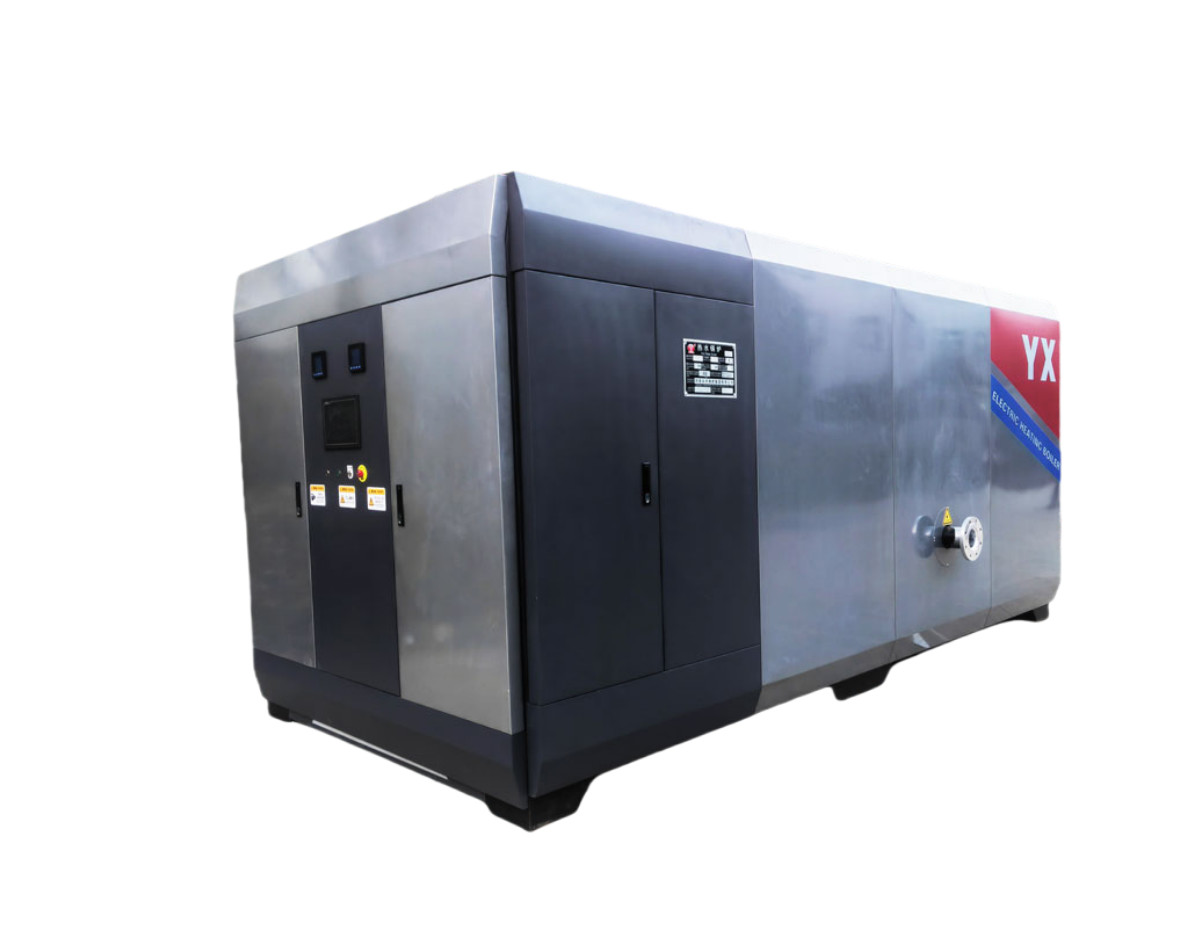

Product introduction:
An Electric boiler is a thermal equipment that converts electrical energy into heat and heats water. It requires no furnace, no flue, no chimney, no place to store fuel. The hot water boiler has the function of leakage protection, anti-dry burning extremely low water level protection, furnace body overheating protection, temperature sensor abnormal protection, power supply voltage abnormal protection, heating component phase break protection. The operation of the boiler is clearly visible. All operations can be easily completed by pressing the button, and the boiler controller has a complete set of super display and control functions. The electric heating boiler has the characteristics of no pollution, no noise, small footprint, easy installation and use, automatic, safe and reliable, and the thermal efficiency is as high as 98%. It is a green environmental protection product.
Product advantage:
1, the use of AIX boiler controller, built-in backlight LCD screen display, boiler operation status is clearly visible. All operations can be easily completed by pressing the button, the boiler controller's super display function and control function are complete, and the program functions can also be customized according to the actual requirements of customers.
2, stainless steel electric heating tube type hot water boiler implementation of "immersion" electric heating method, furnace water heating fast, high efficiency, heating tube and furnace body flange connection, easy to clean, disassembly.
3, the user can set the water temperature between 30 ° C and 90 ° C, the boiler according to the user's requirements of timing, fixed temperature automatic heating cycle system or to provide users with bathing, domestic hot water.
4, the high-power boiler adopts the step type time-sharing input method to control the heating group, and the heating group can be randomly input or stop working according to the load change, which significantly reduces the impact on the power grid. At the same time, it can also manually start and stop the number of heating sections, and the user can adjust the boiler electric power by himself.
Technical parameter:
| Type specification | ZDRS-360 | ZDRS-480 | ZDRS-720 | ZDRS-1080 | ZDRS-1440 | ZDRS-1800 | ZDRS-2160 | DZRS-2880 |
| Rated power(KW) | 360 | 480 | 720 | 1080 | 1440 | 1800 | 2160 | 2880 |
| Rated current(A) | 540 | 720 | 1080 | 1620 | 2100 | 2700 | 3250 | 4320 |
| Voltage frequency(V／Hz) | 380/50 |
| Electrothermal efficiency(％) | ≥98 |
| Insulation heat loss(％) | 2 |
| Heating area(㎡) | 1800-3700 | 2500-4800 | 3700-7400 | 5500-12000 | 7500-15000 | 6000-18000 | 11000-22000 | 15000-30000 |
| Water temperature control(℃) | 90/70 |
| Inlet and outlet aperture(DN) | 15/25 | 15/25 | 15/25 | 20/40 | 20/40 | 25/40 | 25/40 | 25/40 |
| Water refill blowdown aperture(DN) | Automatic + remote |
| Product weight(Kg) | 125 | 200 | 270 | 270 | 270 | 285 | 300 | 320 |
| Apparent dimension(m) | 1.5*1.0*1.5 | 1.7*1.0*1.5 | 2.0*1.5*1.7 | 2.2*1.7*1.7 | 2.6*1.7*1.8 | 3.0*1.8*1.8 | 3.8*2.1*2.0 | 4.5*2.2*2.2 |
