Product introduction:

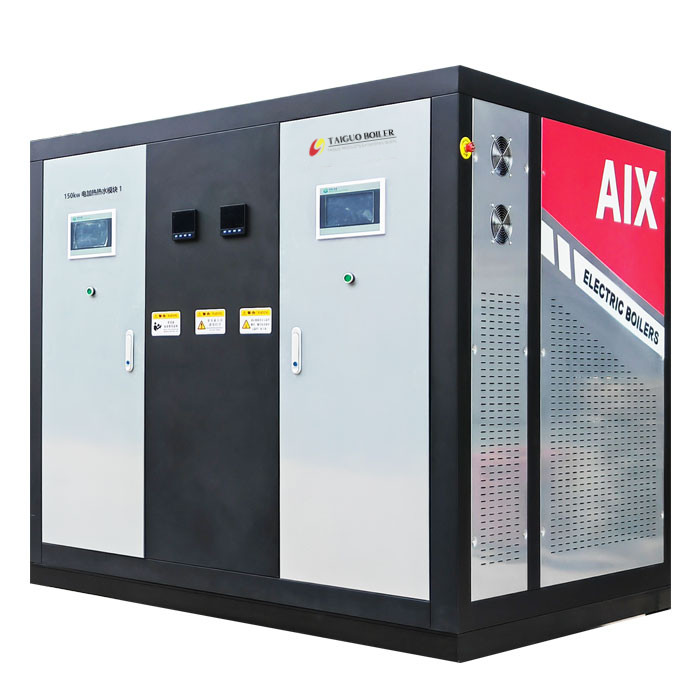

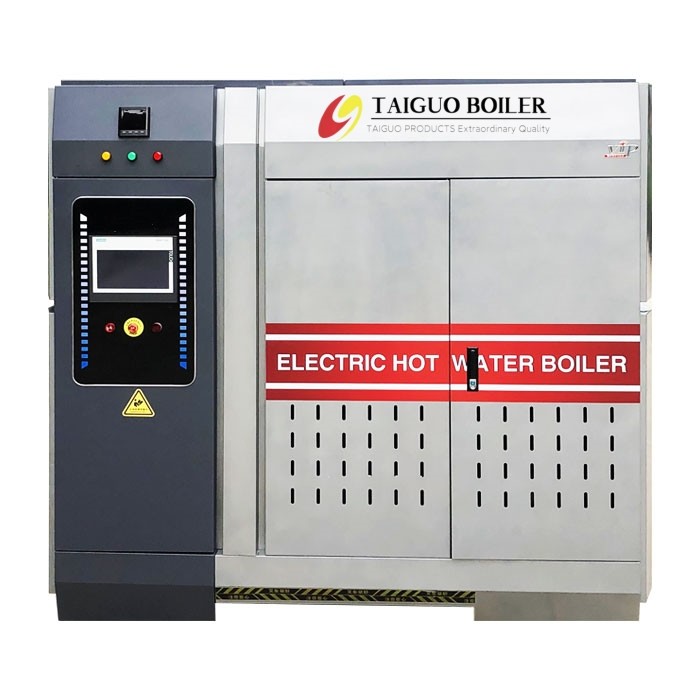

Electromagnetic induction heating hot water boiler is a new type of high temperature hot water boiler product, which uses the principle of electromagnetic induction to convert electrical energy into heat energy, thereby producing high temperature hot water. Electromagnetic hot water boiler for hydropower separation structure is not easy to produce scale, the use of safer, more energy saving, can automatically adjust the output power according to actual needs, effectively use energy. This kind of electromagnetic hot water boiler has the advantages of high efficiency, environmental protection, energy saving, etc., and has been widely used in heating, system heating, bathing, hotel and other fields.
Product advantage:
1, modular installation:
The equipment can be used single, can also be conveniently used in parallel, central heating, that is, ready to use, save space and construction costs, can also be conveniently disassembled and used independently according to needs.
2, one-click start:
The electromagnetic hot water module boiler adopts PLC control system, touch screen interface, fingertip touch, easy to operate, remote control, greatly saving labor costs.
3, high security:
The frequency of electromagnetic oscillation is only between 20 and 30 Hz, which is completely safe for the human body, and the water and electricity separation of the heating core part of the equipment will not occur the leakage problem of the traditional electric heating tube.
Technical parameter:
| Type specification | LDRS-10 | LDRS-20 | LDRS-30 | LDRS-40 | LDRS-50 | LDRS-60 | LDRS-70 | LDRS-80 |
| Rated power(KW) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Rated current(A) | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 |
| Voltage frequency(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electrothermal efficiency(%) | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 |
| Class of protection(IP) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Working pressure(MPa) | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 |
| Air outlet/sewage outlet(DN) | 15/25 | 15/25 | 15/25 | 20/40 | 20/40 | 25/40 | 25/40 | 25/40 |
| Auxiliary control function | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote |
| Product weight(Kg) | 125 | 200 | 270 | 270 | 270 | 285 | 300 | 320 |
| Apparent dimension(m) | 0.6*0.8 *1.2 | 0.6*0.8 *1.2 | 0.6*0.8 *1.2 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 |
Q1: How can you get the best price quickly?
1.We need to know the boiler capacity, the fuel you plan to use and the steam pressure you need, and then we can confirm the boiler model.
2. Customer needs to provide us your name, email address and company name, and then we will send you price list immediately.And if you use whatsapp, skype or wechat, you can provide us your ID, it will be more convenient for our communication.
Q2:Why choose us?
1.40+ years of boiler manufacturing experience, 10 years of export experience.A grade boiler factory.
2.Free replacement of parts for one year, lifetime maintenance of the main engine, except for improper operation.
Q3: Details of electric control cabinet
Electric control cabinet adopts PLC touch screen, display in English. It shows working condition details of boiler, such as water temperature, water pressure, exhaust gas temperature, and over-pressure alarm, etc. In addition, the cabinet is used for set up the parameter, record and analyze the operation data, etc.
Q4:What is the using life of your boiler?
1.Normally the boiler is designed for 20 years life span, but with right operation and good maintenance,the boiler can be used for 20-25 years.
