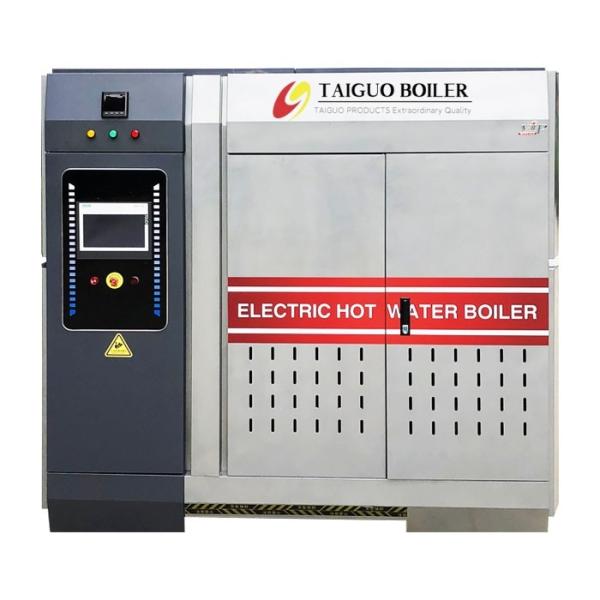

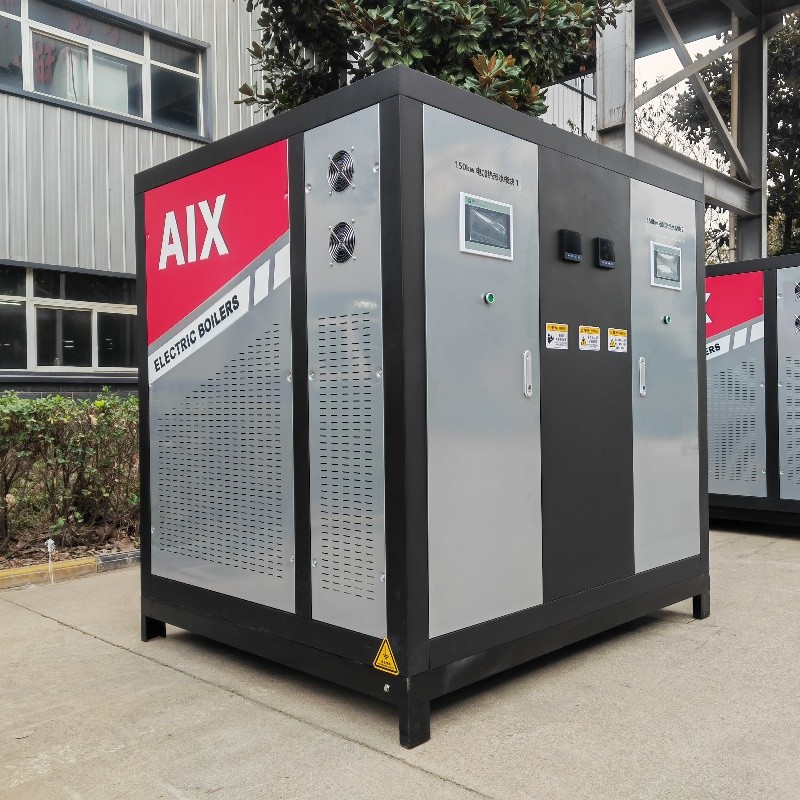

Product introduction:
The vertical electric hot water boiler is a hot water boiler driven by clean energy and electric energy, and the electric hot water boiler is a fully automatic environmental protection boiler equipment that uses the latest electric heating technology and control system to produce hot water to meet the needs of heating or supply hot water for living and bathing. The operating status of the boiler is clearly visible with the LCD LCD screen display of AIX boiler controller and built-in backlight. All operations can be easily completed by pressing the button, the boiler controller's super display function and control function are complete, and the program functions can also be customized according to the actual requirements of customers.
Product advantage:
1. The boiler has leakage protection function (the control system detects the leakage of the power supply, automatically cut off the boiler power supply), anti-dry burning very low water level protection function (when the water level is lower than the set minimum limit water level, immediately stop and alarm), furnace overheating protection function (when the boiler shell temperature exceeds 105℃, immediately stop and alarm, Automatically start the boiler after the temperature is normal), abnormal protection function of the temperature sensor (the control system continues to detect the sensor condition, immediately stop and alarm), abnormal power supply voltage protection function (when the power supply is abnormal, automatic power off. After normal, automatically resume work), heating component out of phase protection function (after monitoring the heating component out of phase, stop protection).
2. The top of the electric boiler is provided with an exhaust port communicated with the atmosphere, the inner tank is not under pressure, the boiler works under normal pressure, there is no danger of explosion, and the safety risks are completely eliminated.
Technical parameter:
| Type specification | LDRS-10 | LDRS-20 | LDRS-30 | LDRS-40 | LDRS-50 | LDRS-60 | LDRS-70 | LDRS-80 |
| Rated power(KW) | 10 | 20 | 30 | 40 | 50 | 60 | 70 | 80 |
| Rated current(A) | 15 | 30 | 45 | 60 | 75 | 90 | 105 | 120 |
| Voltage frequency(V/Hz) | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 | 380/50 |
| Electrothermal efficiency(%) | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 | ≥98 |
| Class of protection(IP) | 50 | 50 | 50 | 50 | 50 | 50 | 50 | 50 |
| Working pressure(MPa) | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 | 0.01- 1.0 |
| Air outlet/sewage outlet(DN) | 15/25 | 15/25 | 15/25 | 20/40 | 20/40 | 25/40 | 25/40 | 25/40 |
| Auxiliary control function | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote | Automatic + remote |
| Product weight(Kg) | 125 | 200 | 270 | 270 | 270 | 285 | 300 | 320 |
| Apparent dimension(m) | 0.6*0.8 *1.2 | 0.6*0.8 *1.2 | 0.6*0.8 *1.2 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 | 1.0*1.6 *1.7 |
